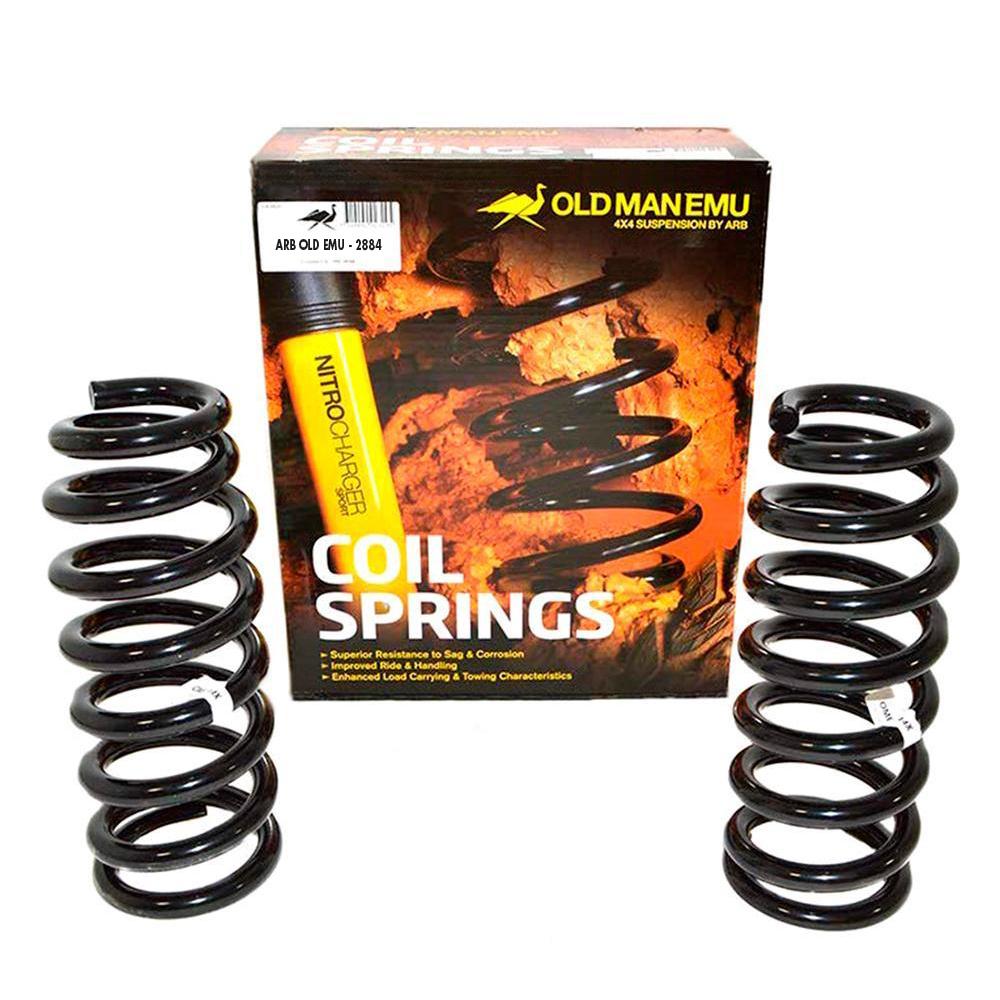

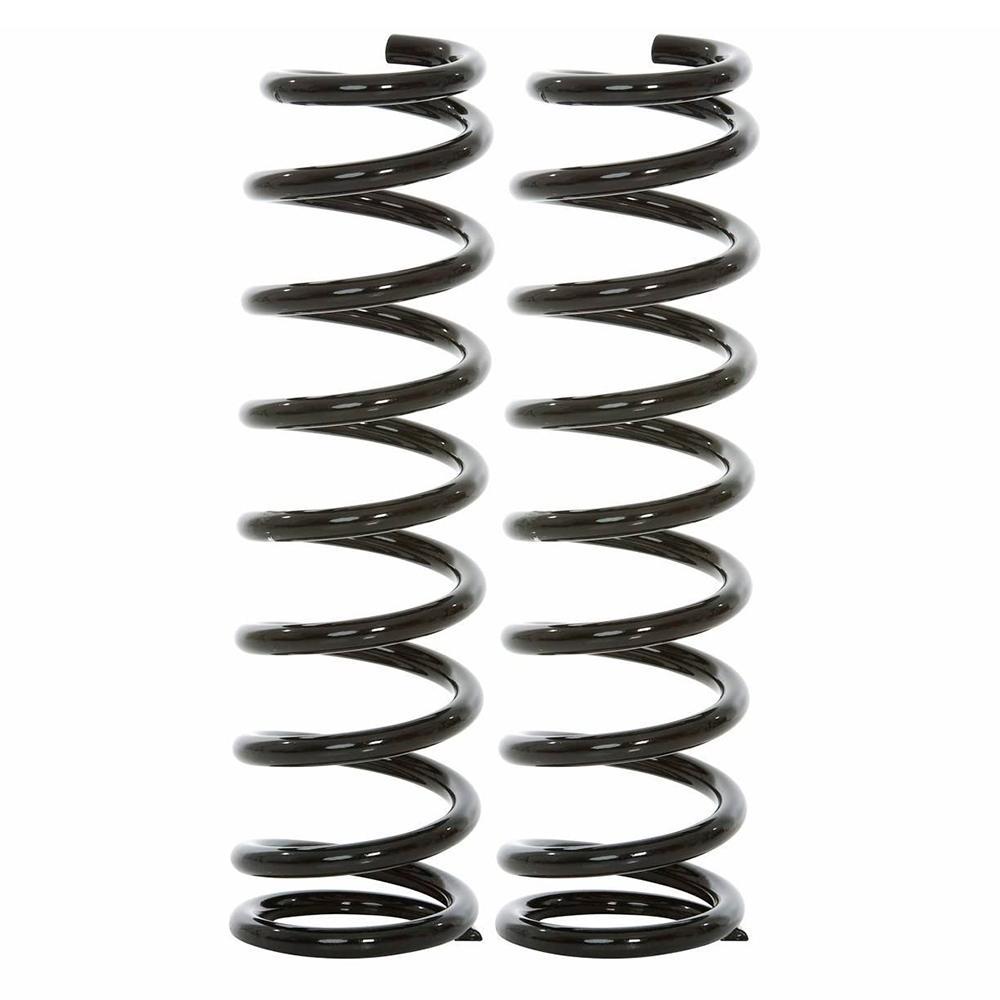

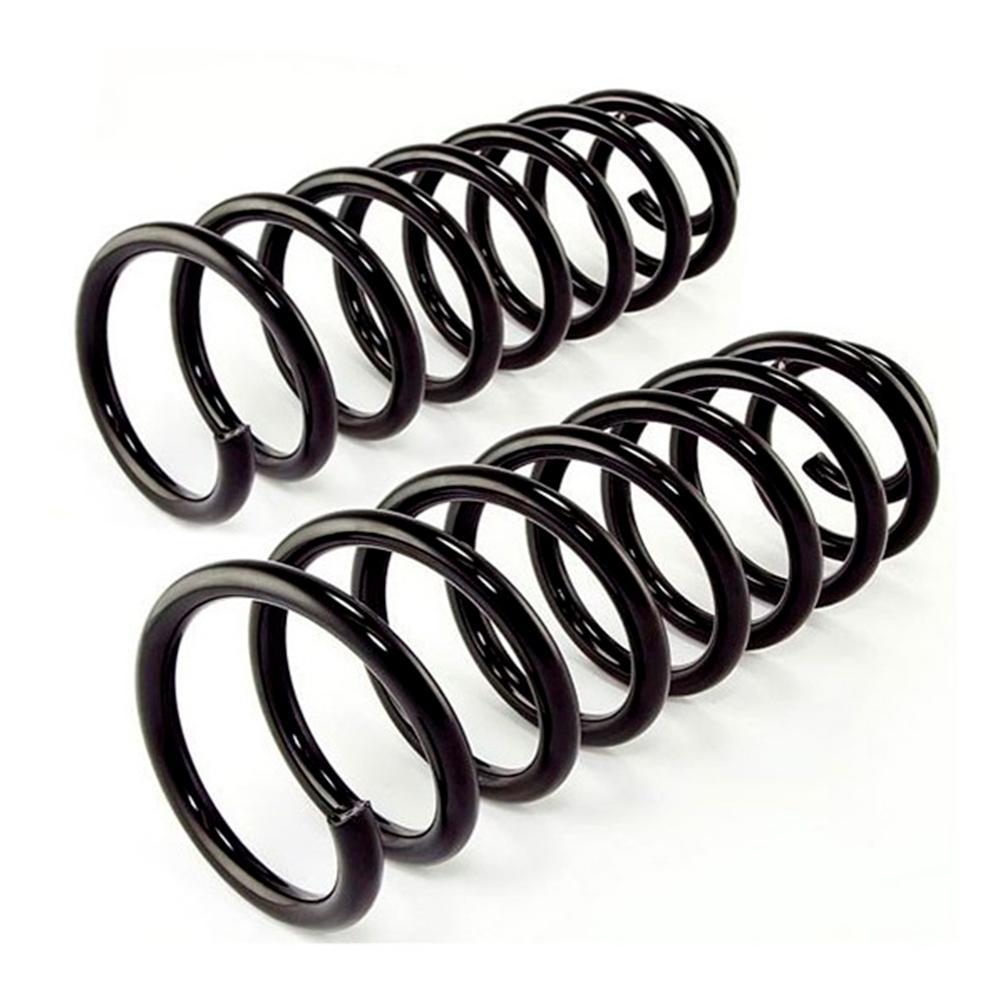

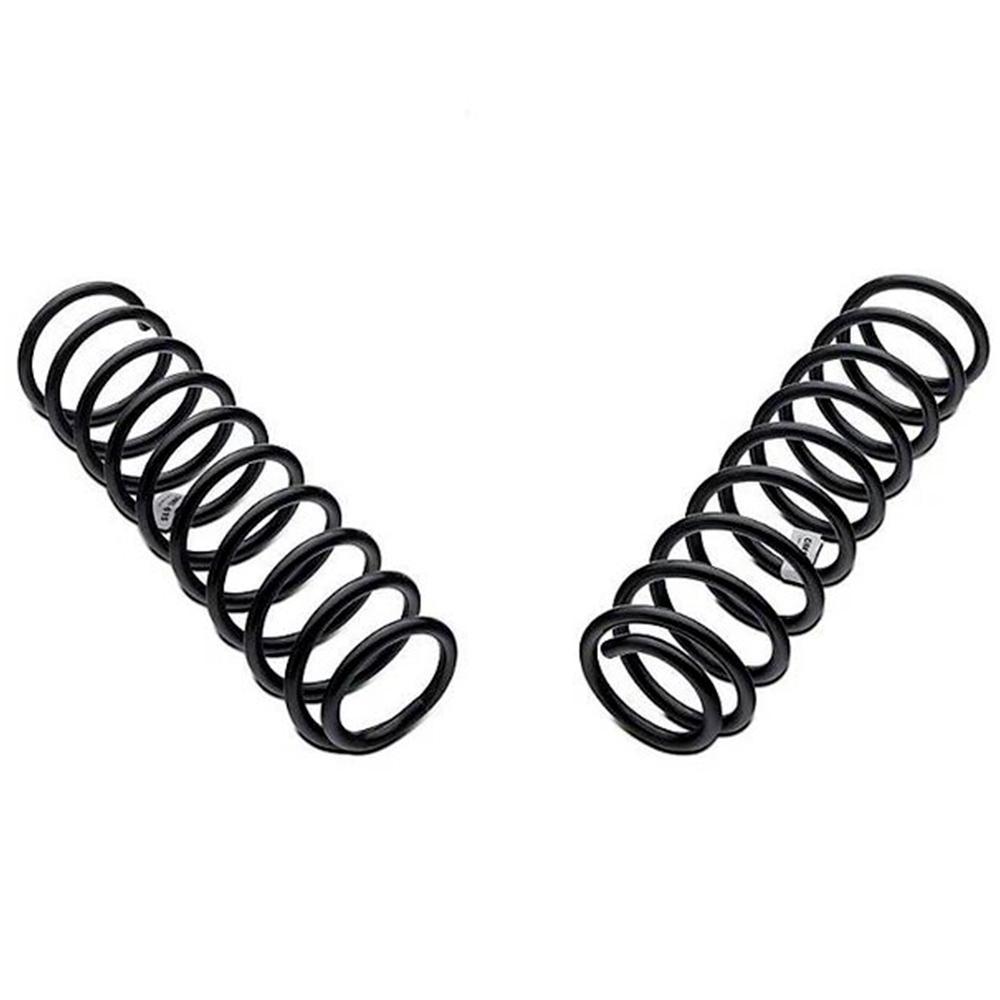

ARB Front Coil Springs 2883 for Toyota Prado 150 and 120 Series, FJ Cruiser, Hilux, 4Runner - 1.5 inch Estimated Lift -Old Man Emu
Starting at
/mo
with
i
[EFFECTIVE DESIGN]
- Springs are formed on precision mandrels.
- Scragging before and after shot peening to prevent sagging.
- Constant and variable rate coils are available for multiple applications.
- Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
- Ride height increases are attained, emphasis is placed on ride control improvements.
[OXIDATION PROTECTION]
- Durable powder coat finish.
[EASY INSTALLATION]
- Can directly replace the OE components, no custom installation required.
[SPRINGS]
- Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
- Specific kits have been developed for both gas and diesel models.
- In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side.
Importants Notes:
- For Toyota Prado 150 Series:
- V6 4.0L PETROL ENGINE Models (Estimated Lift: 20mm).
- To maintain coil clearance from the sway bar, the coil seat must be installed with the helix facing away from the sway bar.
- V6 4.0L PETROL ENGINE MODELS (Estimated Lift: 30mm).
- Vehicles with KDSS, must have 1 x OME95PF5 packer installed on the front right hand side to maintain correct trim (Not Included).
- When 2883 is fitted to Petrol Model, ride height increase will be approximately 40mm.
- For Toyota Prado 120 Series Except Tems Model (Electronically Modulated Suspension):
- To maintain front strut droop it is important front coils are selected as shown.
- For Toyota Hilux/Vigo 2005 to 2015:
- To maintain coil clearance from the sway bar, the coil seat must be installed with the helix facing away from the sway bar.
- For Toyota 4Runner 2010 to 2022 (Usa Model):
- Vehicles with KDSS, must have 1 x OME95PF5 packer installed on the front right hand side to maintain correct trim (Not Included).
ABOUT THIS PRODUCT
ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage.
While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.
SPECIFICATIONS
- Dimensions (L x W x H): 21 x 15 x 8 inches.
- UPC: 9319092023028.
- Part Number: 2883.
- Product Weight: 21.61 lbs.
-
Suitable for:
- TOYOTA PRADO 150 SERIES TO 09/2017 LWB3 COIL SPRUNG MODELS ONLY
- TOYOTA PRADO 150 SERIES SWB 2009 ON COIL SPRUNG MODELS ONLY
- TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB
- TOYOTA FJ CRUISER 2010-2022
- TOYOTA FJ CRUISER 2006 TO 2010
- TOYOTA FORTUNER 2004 TO 2015.
- TOYOTA HILUX/VIGO 2005 TO 2015 ALL MODELS.
- TOYOTA 4RUNNER 2010-2022.
