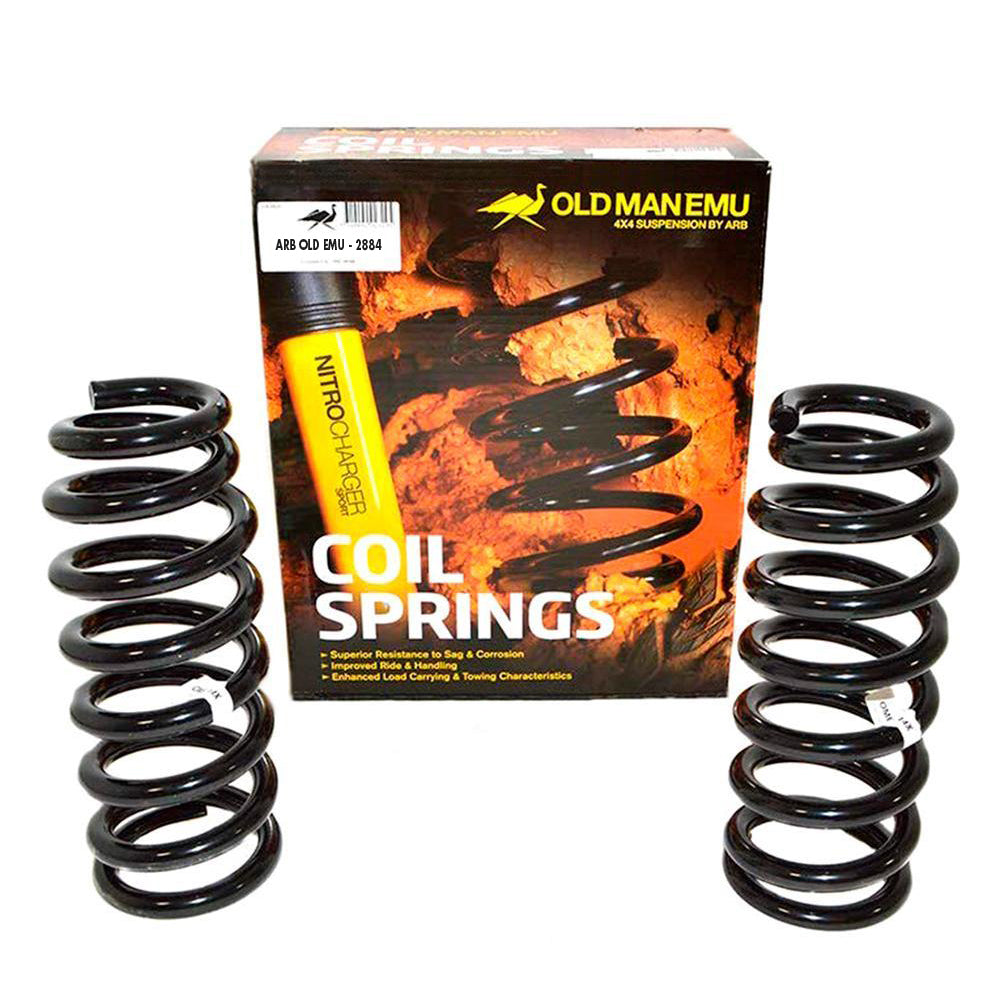

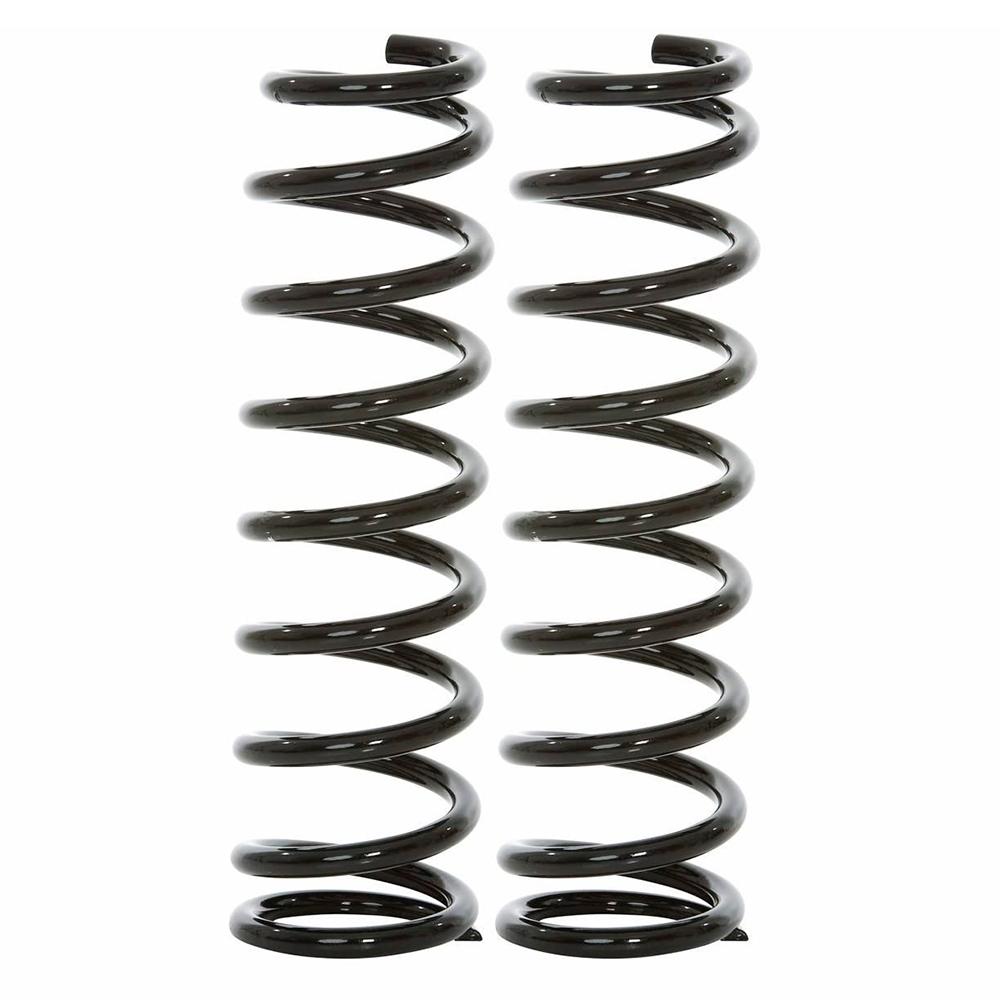

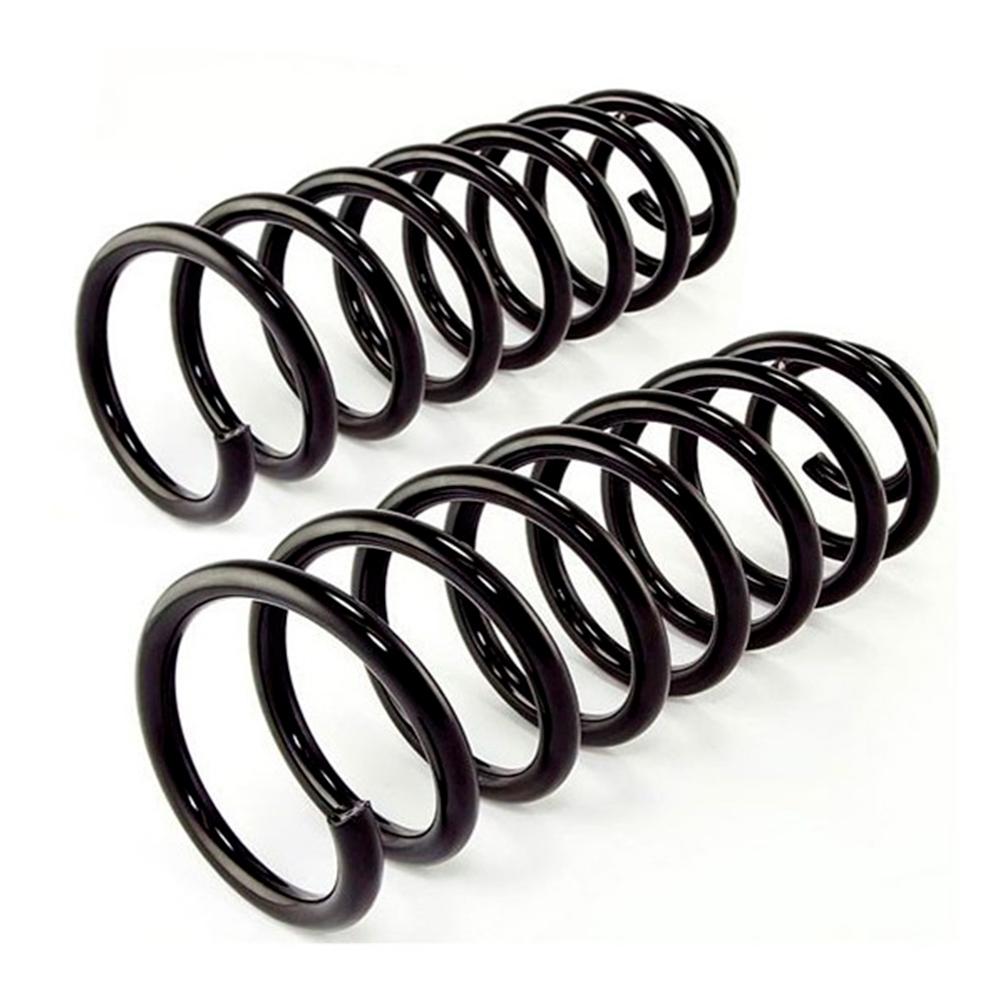

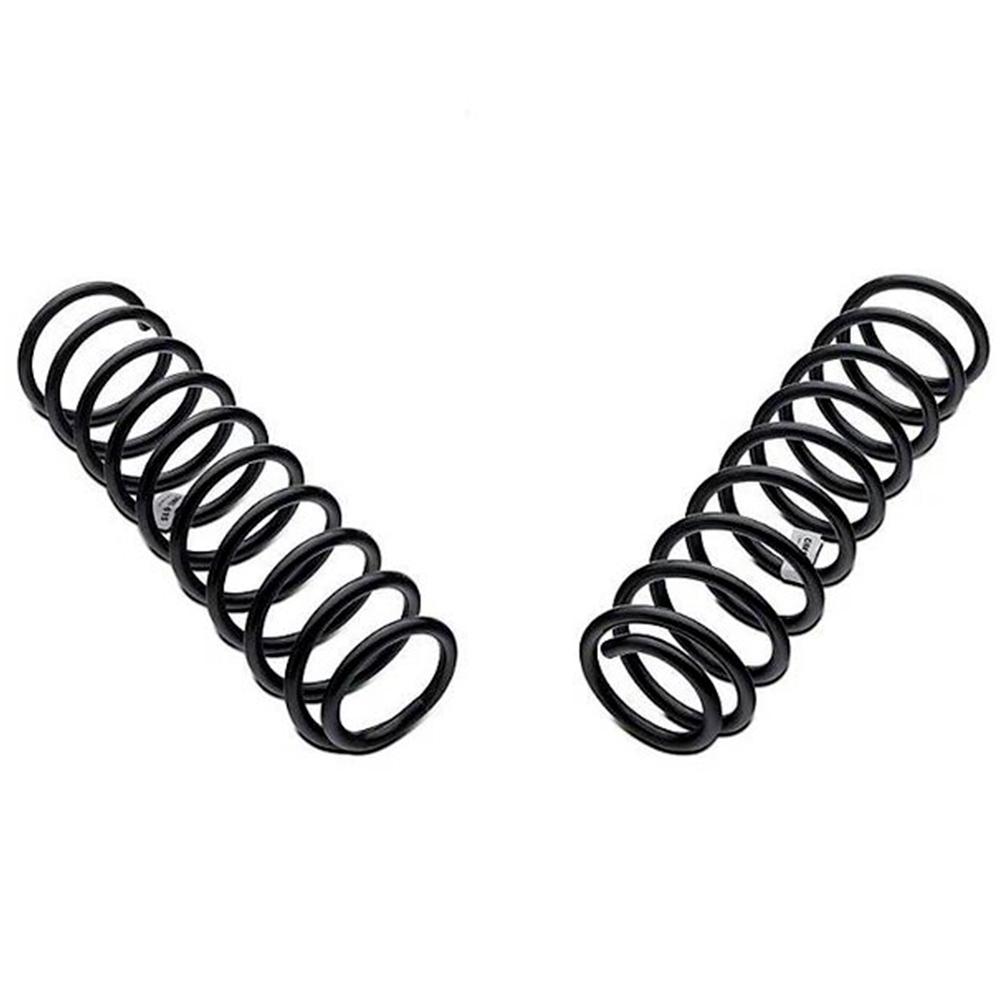

ARB Old Man Emu Front Coil Springs 2884 for Toyota Prado 150 and 120 Series, 4Runner, FJ Cruiser, Hilux

• Springs are formed on precision mandrels.
• Scragging before and after shot peening to prevent sagging.
• Constant and variable rate coils are available for multiple applications.
• Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
• Ride height increases are attained, emphasis is placed on ride control improvements.

[OXIDATION PROTECTION]

• Durable powder coat finish.

[EASY INSTALLATION]

• Can directly replace the OE components, no custom installation required.

[SPRINGS]

• Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
• Specific kits have been developed for both gas and diesel models.
• In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side.

Importants Notes:

- For Toyota Prado 150 Series:

• V6 1.05Gl PETROL ENGINE MODELS and 0.7GL & 0.79GL DIESEL ENGINE MODELS (Estimated Lift: 0.11 inches).
• Vehicles with KDSS, must have 1 x OME95PF5 packer installed on the front right hand side to maintain correct trim (Not Included).
• V6 1.05Gl PETROL ENGINE MODELS and (Estimated Lift: 0.15 inches):

• Vehicles with KDSS, must have 1 x OME95PF5 packer installed on the front right hand side to maintain correct trim (Not Included).

- For Toyota Prado 120 Series:

• To maintain front strut droop it is important front coils are selected as shown.

- For Toyota Hilux/ VIGO 2005-2015 (DIESEL ENGINES AND PETROL ENGINES):

• Strut Top Hat Kit may be required if original equipment is worn.

- For Toyota 4Runner 2010-2021 (Estimated Lift: 1.9 Inches):

• Vehicles with KDSS, must have 1 x OME95PF5 packer installed on the front right hand side to maintain correct trim (Not Included).

- For Toyota 4Runner 2003-2010 (Estimated Lift: 1.9 Inches):

• OME front coils can only be installed with OME Nitrocharger strut and coil seats (Not Included).

ABOUT THIS PRODUCT

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage.

While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

SPECIFICATIONS

• Dimensions (L x W x H): 21 x 15 x 8 inches.
• Bar Dia. mm: 16.5.
• Free Height mm (A): 390.
• Free Height mm (B): 390.
• Number Of Turns: 9.75 - Coil weight (kg): 4.7.
• Spring Rate (lbf / in): 590.
• Spring Rate (N / mm): 103.
• OE Spring Rate Lbs.: 500.
• UPC: 9319092023035.
• Part Number: 2884.
• Product Weight: 21.61 lbs.
• Suitable for:
  • TOYOTA FJ CRUISER 2006- 2010.
  • TOYOTA FJ CRUISER 2010-2022.
  • TOYOTA 4RUNNER 2003-2009.
  • TOYOTA 4RUNNER 2010-2022.
  • TOYOTA 4RUNNER 2010-2022.
  • TOYOTA PRADO 150 SERIES SWB 2009 -2022.
  • TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB.
  • TOYOTA HILUX 2015 - 2022 ALL MODELS
