ARB Slimline Roof Rack Light 1780500 W/out Wiring Loom
Starting at
/mo
with
i
[EFFECTIVE DESIGN]
- Unique reflector design to provide optimum distance and width for highway driving.
- Reflector design limits light being reflected off vehicle bonnet and bar work.
- Combo beam technology provides excellent mid-to long-range spread as well as distance down the road.
- Virtually indestructible polycarbonate lens.
- Extruded aluminum body with stealth black powder-coat finish.

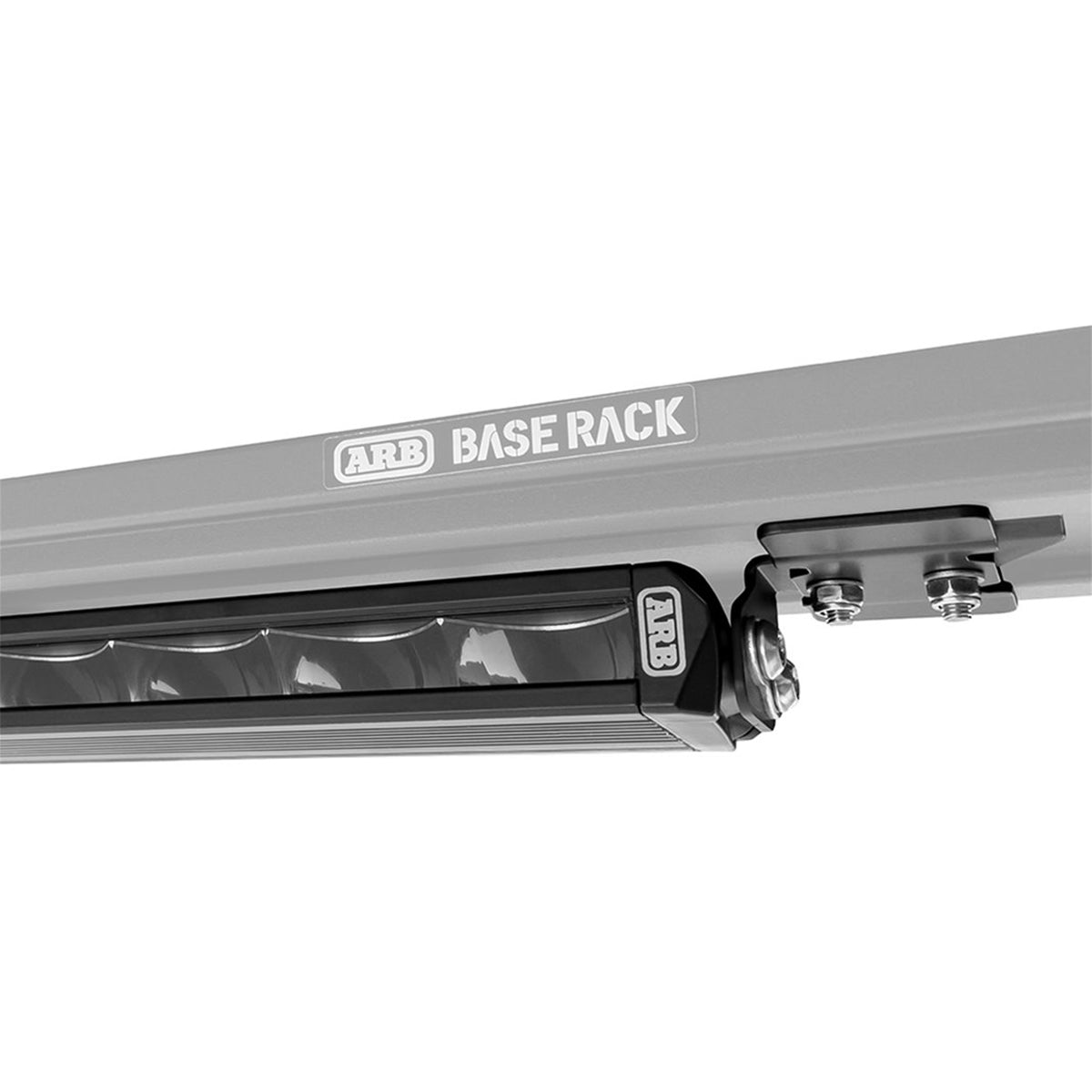

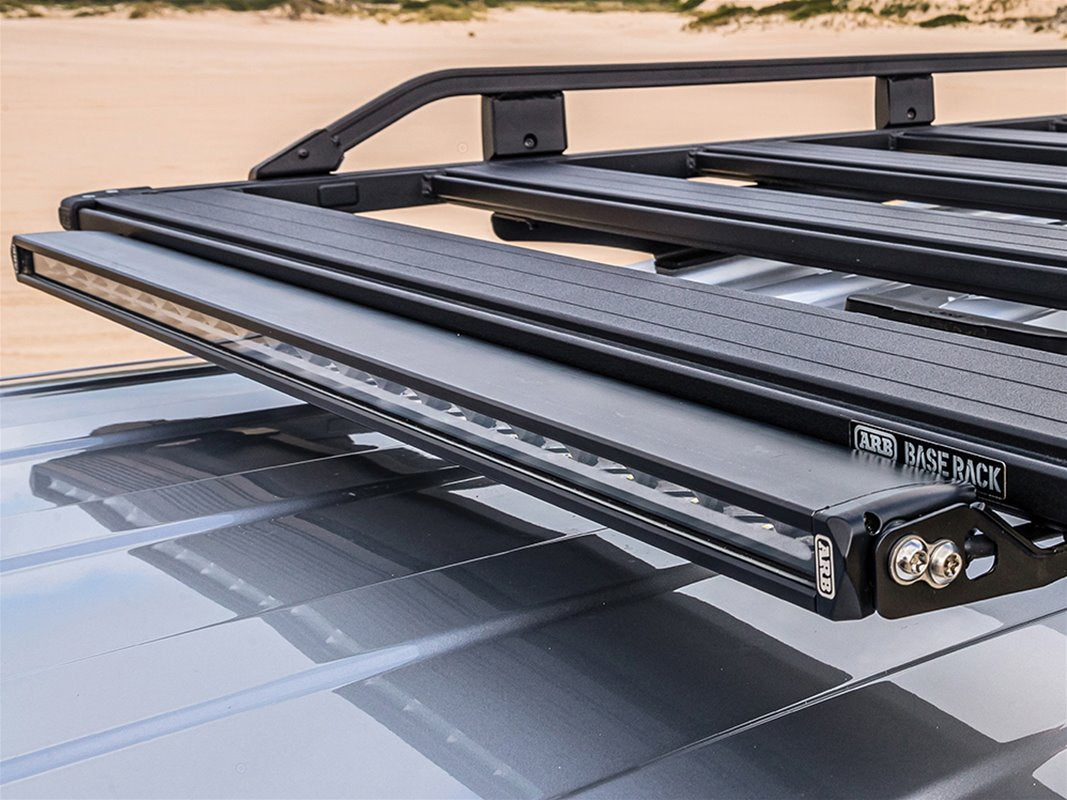

- Unique multi-position mounts are suitable for BASE Rack, as well as ARB trade and touring racks.
- Brackets included providing two mounting options dependent on roof rack.
- 304 stainless hardware.
- Reverse polarity protection.
- Breather with pressure-tested seal
- Vibration and UV tested.
- Thermal management.
- Dust and waterproof to IP68.
- Over and under-voltage protection.
ABOUT THIS PRODUCT
Super-strong, manufactured from extruded aluminum with high-pressure die-cast aluminum caps, this heat dissipation chassis provides great longevity to the LEDs and allows for a couple of hits from low hanging branches while out on the trails.
SPECIFICATIONS
- Suitable for: ARB Base Rack.
- Inputs: 12V to 48V.
- Operating Temperatures: -40°C to +65°C.
- Current Draw 9.2A @ 14.4V
- Output - Raw 9,279 lumens
- Output - Effective 8,552 lumens
- Lux @ M (Single Light) 1 lux @ 728m
- Spread Horizontal 8° & Vertical 6°
- Input Cable Length 330mm (male terminal)
- Operating Temp -40°C to +65°C (-40°F to +149°F)
- Colour Temp 5,500-6,000K
- Runtime 50,000hrs
- Weight 7LB.
- Connector 2-pin, over-moulded, waterproof plug
- Dimensions 954mm (37.55”)(W) x 67mm (2.63”) (L)
x 34mm (1.33”) (H)
- Certifications R10, CE & ROHS
NOTES IMPORTANTS
- Suitable for use with ARB driving light loom – 3500810 & 3500820.
- R10, CE and ROHS certified.
The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization. With a choice of sizes, accessories, and attachments, you can truly Make It Your Own.
Adding, removing, and repositioning accessories and roof loads are quick and simple with the BASE Rack’s dovetail system, making it easier to install and remove individual items without disturbing any other cargo or lashing points.
