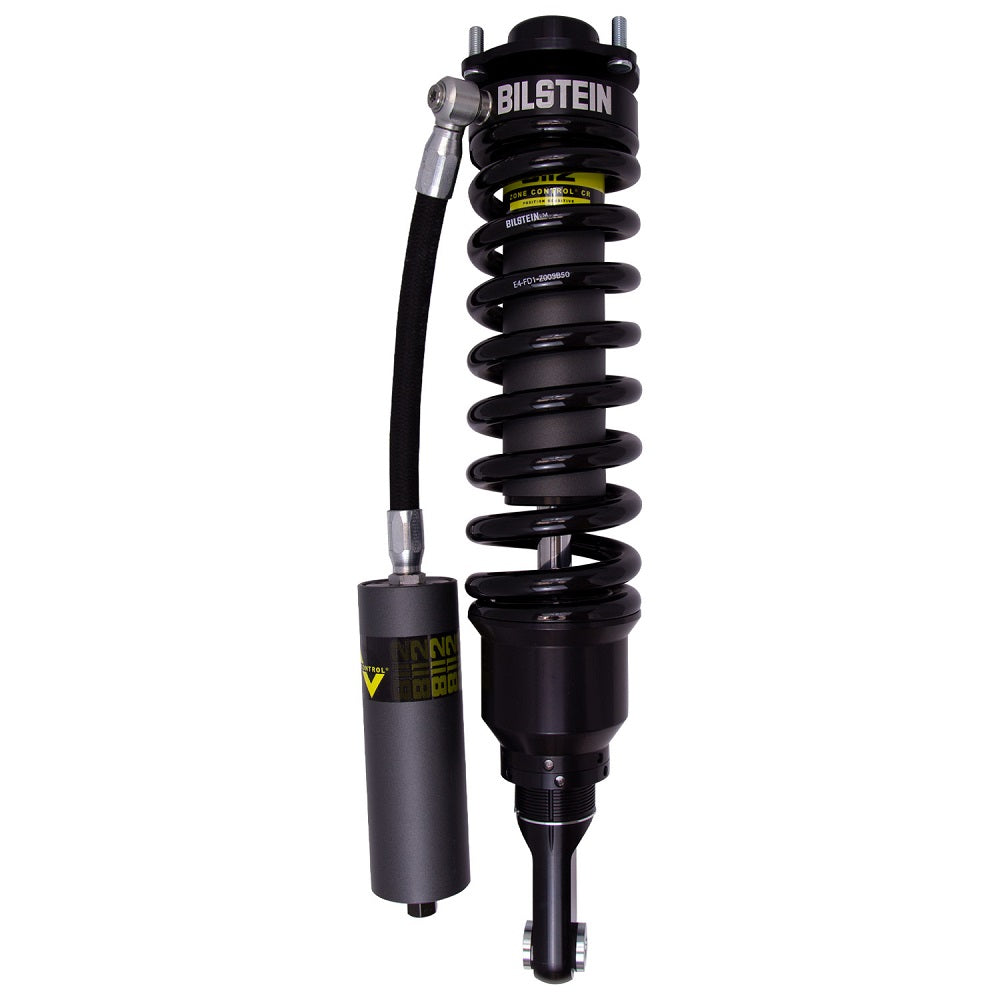

Bilstein B8 8112 (Zone Control CR) Front Left Coilover bil41-322673 fo – Mudify
Bilstein B8 8112 (Zone Control CR) Front Left Coilover bil41-322673 for Toyota Tacoma 05-23
Bilstein B8 8112 (Zone Control CR) Front Left Coilover bil41-322673 for Toyota Tacoma 05-23
Bilstein B8 8112 (Zone Control CR) Front Left Coilover bil41-322673 for Toyota Tacoma 05-23
Click to zoom in

Bilstein B8 8112 (Zone Control CR) Front Left Coilover bil41-322673 for Toyota Tacoma 05-23

$1,091.00

Bilstein B8 8112 (Zone Control...
$1,091.00 USD

FEATURES:

  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression: Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound: Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap.
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
    Adjustable threaded spring seat allows for fine-tuned ride height. Adjustable range 0.6-2.5in.
  • 60mm remote reservoir for increased oil capacity and cooling.
  • Vehicle specific design and tuning provides the ultimate driving experience..
  • Aerospace quality components are vehicle specific to optimize wheel travel and clearance.
  • High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution.
  • Aluminum components with zinc plated shock bodies will resist harsh off-road elements.

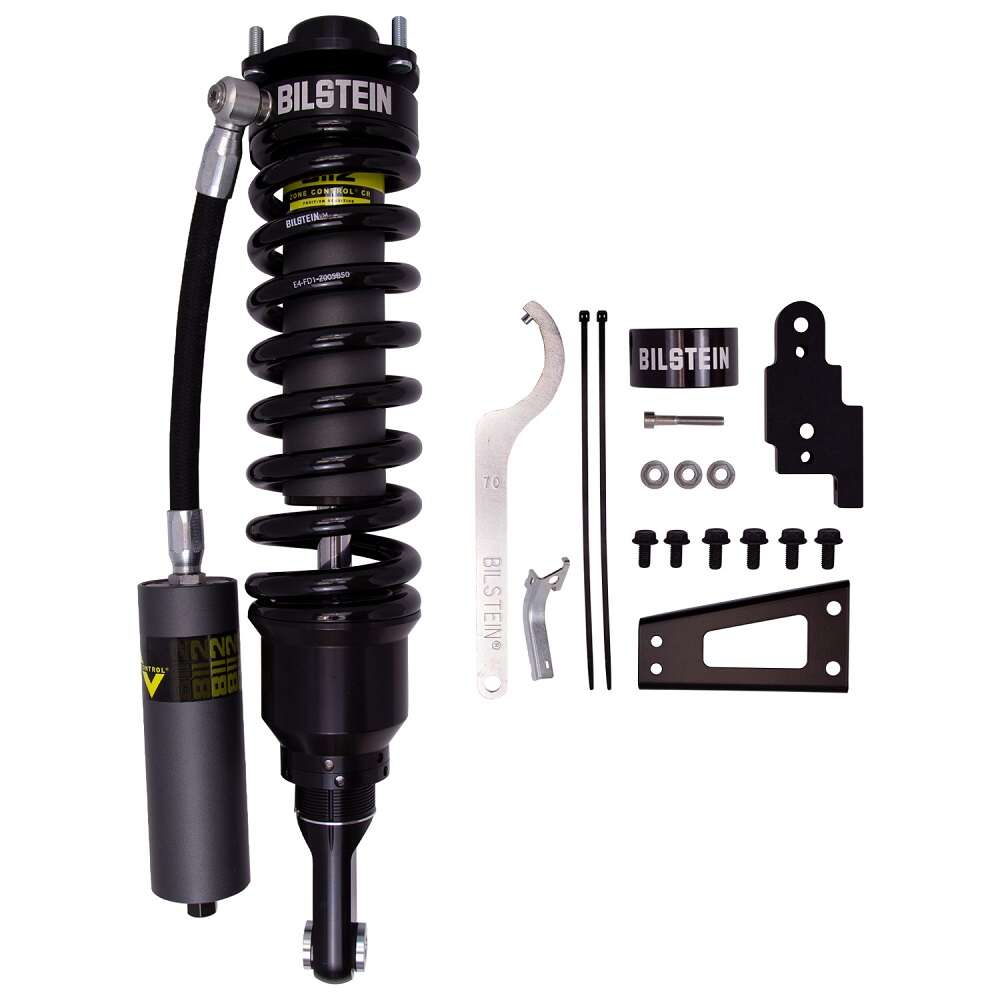

  • Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height.
  • Factory rebuildable.
  • Sold Individually.

    ABOUT THIS PRODUCT

    Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount.

    BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.


    SPECIFICATIONS

    • Collapsed Length (in): 17.43.
    • Extended Length (in): 22.39.
    • Body Diameter: 60mm.
    • Finish: Dampers: EVO Grey/Springs: Black.
    • Reservoir: Yes.
    • Body Design: Smooth Body (Coilover).
    • Internal Design: Monotube.
    • Body Material: Steel.
    • Spring Seat Included: Yes.
    • Adjustable Damping: Non-Adjustable.
    • SKU: bil41-322673.
    • Suitable for:
      • Toyota Tacoma 2005-2023.
