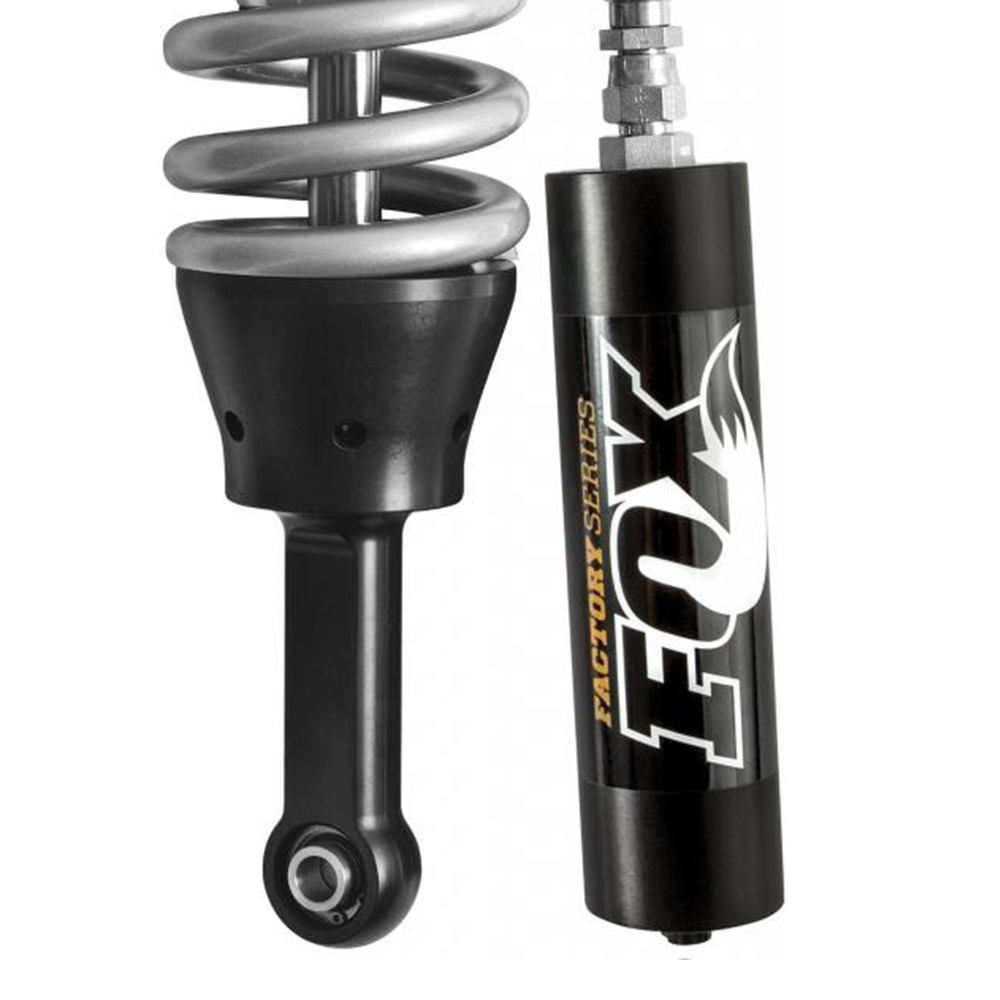

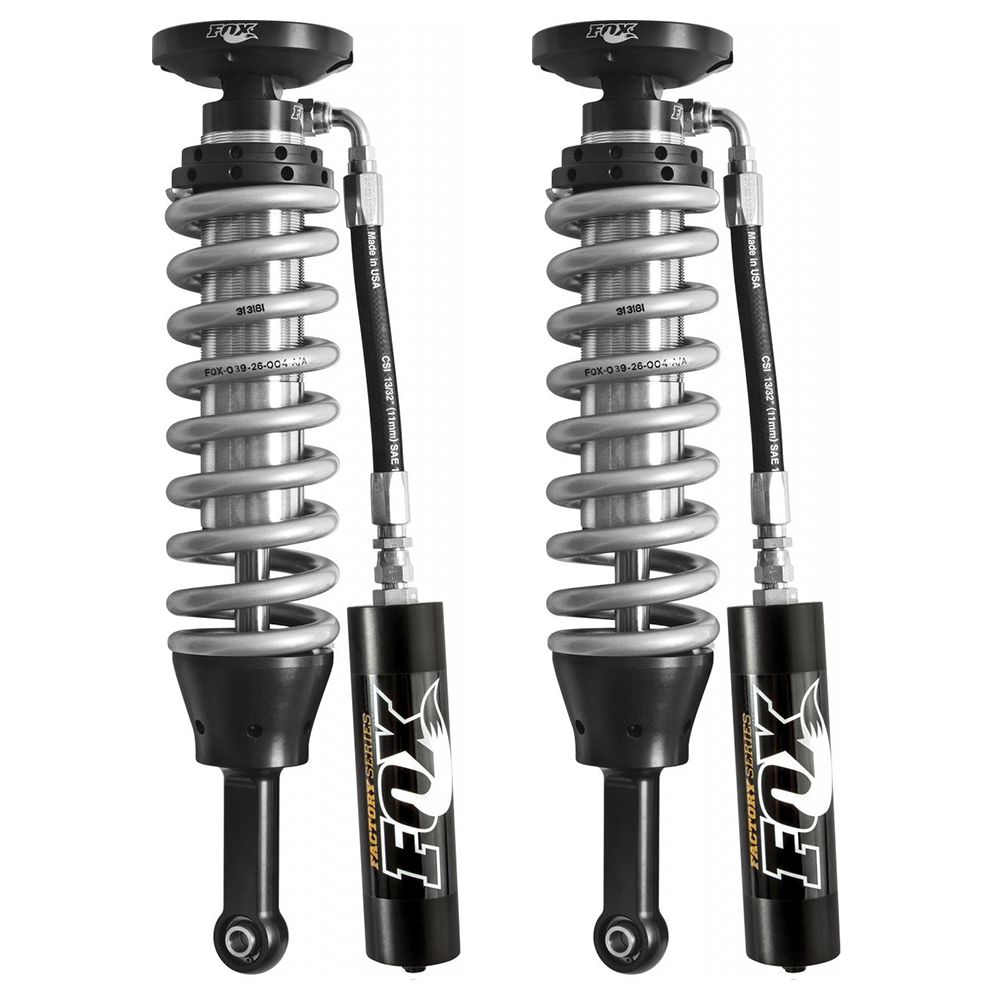

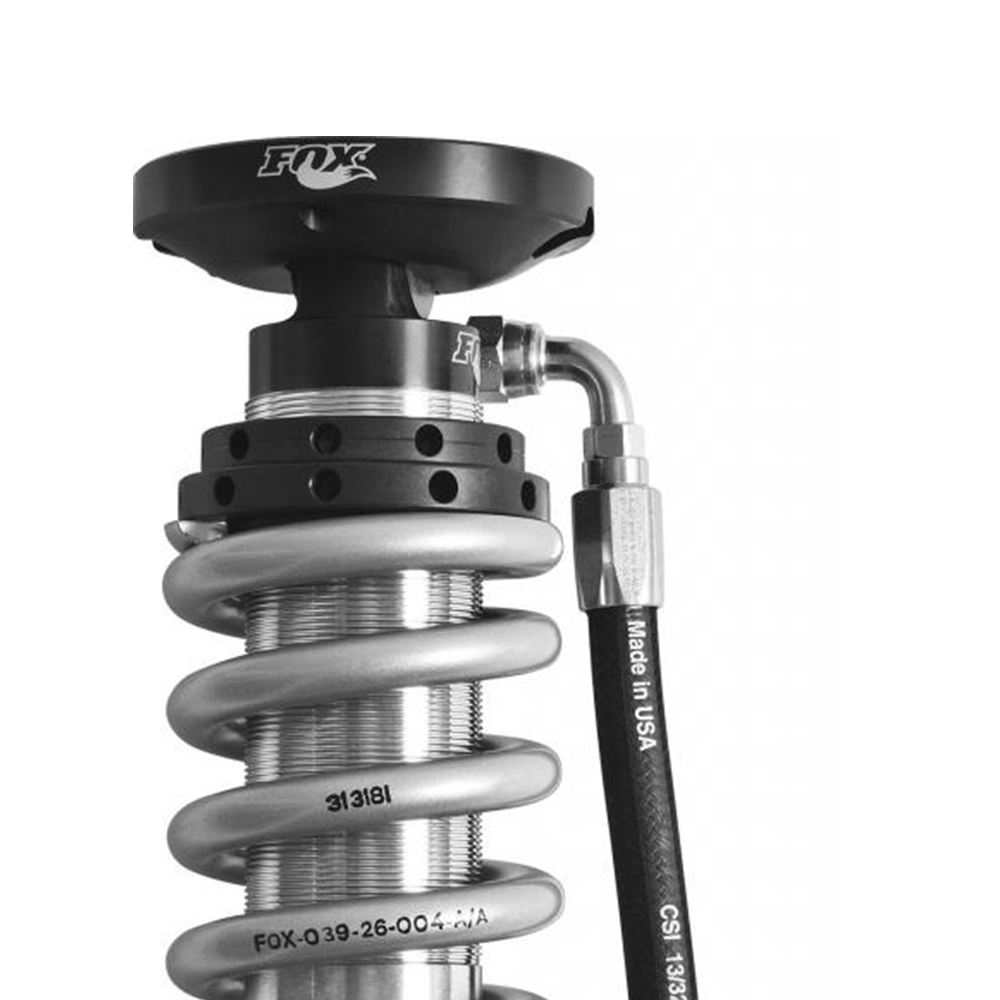

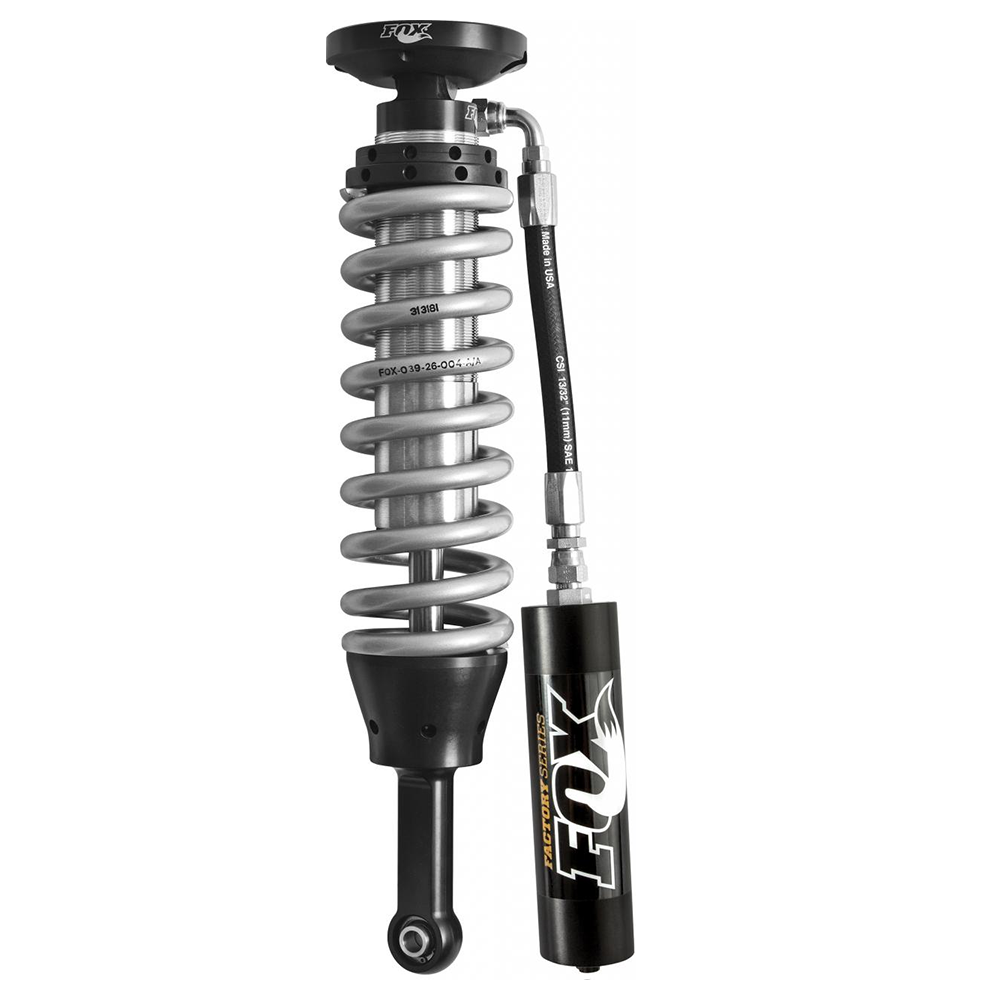

FOX Front Factory Race Series 2.5 Coil-Over Reservoir Shock (Pair) Non ADJ 883-02-130 for Toyota 4Runner / FJ Cruiser / Land Cruiser Prado120 & 150
Starting at
/mo
with
i
- 2.5” smooth bore zinc plated seamless steel body.
- Zinc-plated and double-clear coated for long lasting finish
- Reservoir Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Spring Application specific, adjustable 3.0 Eibach® racing springs
- Shaft 7/8" hardened NitroSteel® Steel carbon shafts
- Piston 6061-T6 hard-anodized, high flow aluminum piston
- Valving Application specific valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Bearing PTFE-lined, heat-treated, alloy steel spherical
- Adjustments Ride height preload ring
- Extended 22.930
- Compressed 18.040
- Travel 4.890
- Top Mount OEM
- Bottom Mount Eyelet
NOTES IMPORTANT:
- Requires Upper Control Arm. FOX’s Long Travel kits MUST be used with aftermarket upper control arms (“UCA”). Please refer to the UCA manufacturer for UCA installation.
- Guide Installation (PDF)
ABOUT PRODUCT
Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel.
Our bolt-on Factory Race Series Coil-over IFP shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-overs IFP shocks deliver.
SPECIFICATIONS
- Dimensions (L x W x H): 28.75 x 5.75 x 5.75 inches.
- Part number: 883-02-130
- Suitable for:
- Toyota 4Runner (2003-2022)
- Toyota FJ Cruiser (2007-2014)
- Toyota FJ Cruiser UAE only (2015-2021)
- Toyota Land Cruiser Prado 120 (2004-2009)
- Toyota Land Cruiser Prado 150 (2010-2014)
