OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu

OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu
OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu
OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu
OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu
Click to zoom in

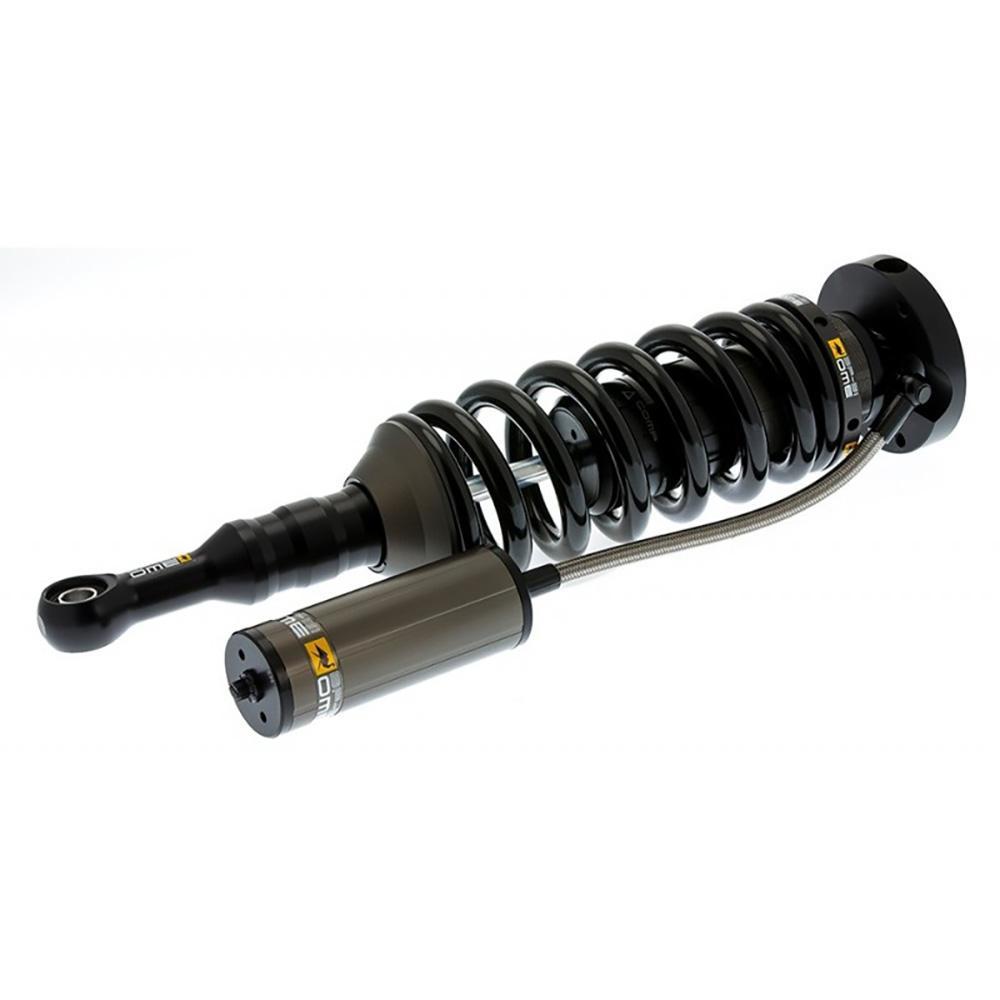

Load image into Gallery viewer, An Old Man Emu BP-51 Coil Over LC200 Front RH BP5190003R with a shock absorber body attached.

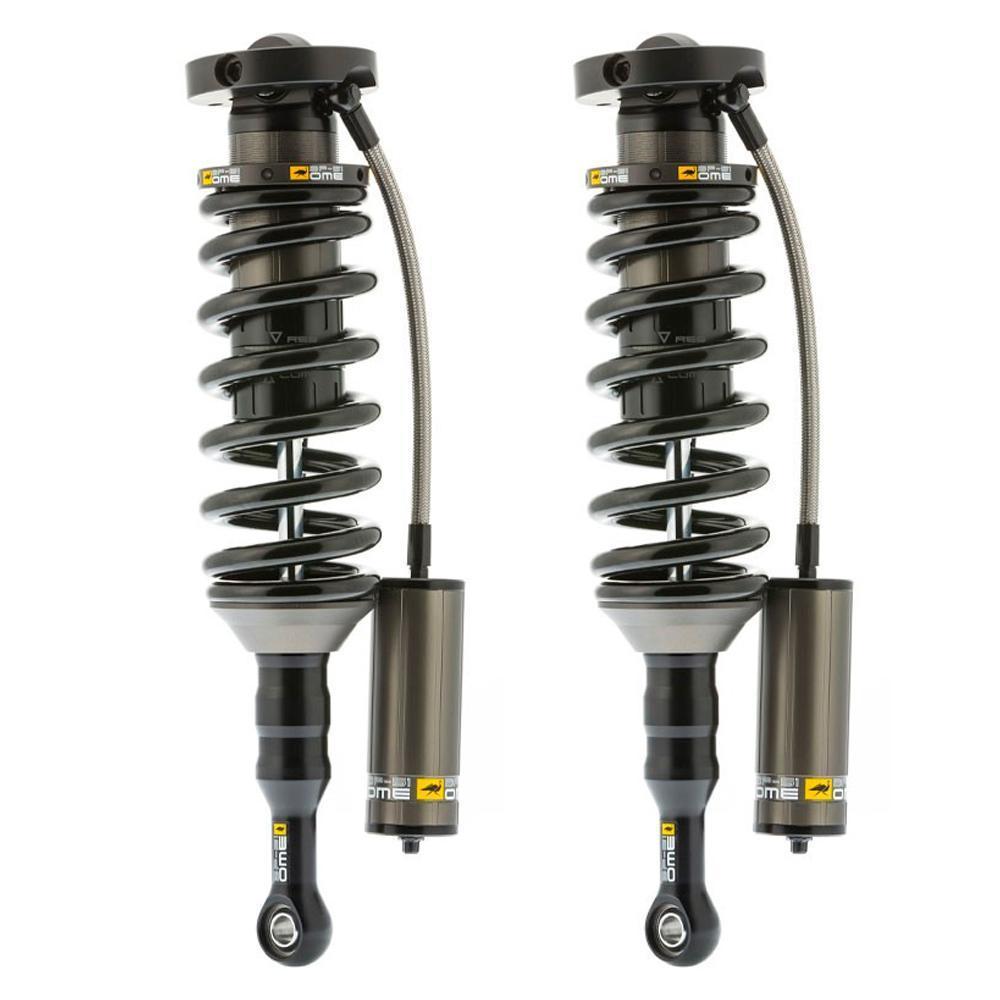

Load image into Gallery viewer, A pair of OME BP-51 Coil Over LC200 Front RH BP5190003R Old Man Emu shock absorbers for the Toyota Tacoma featuring a high-temperature hose.

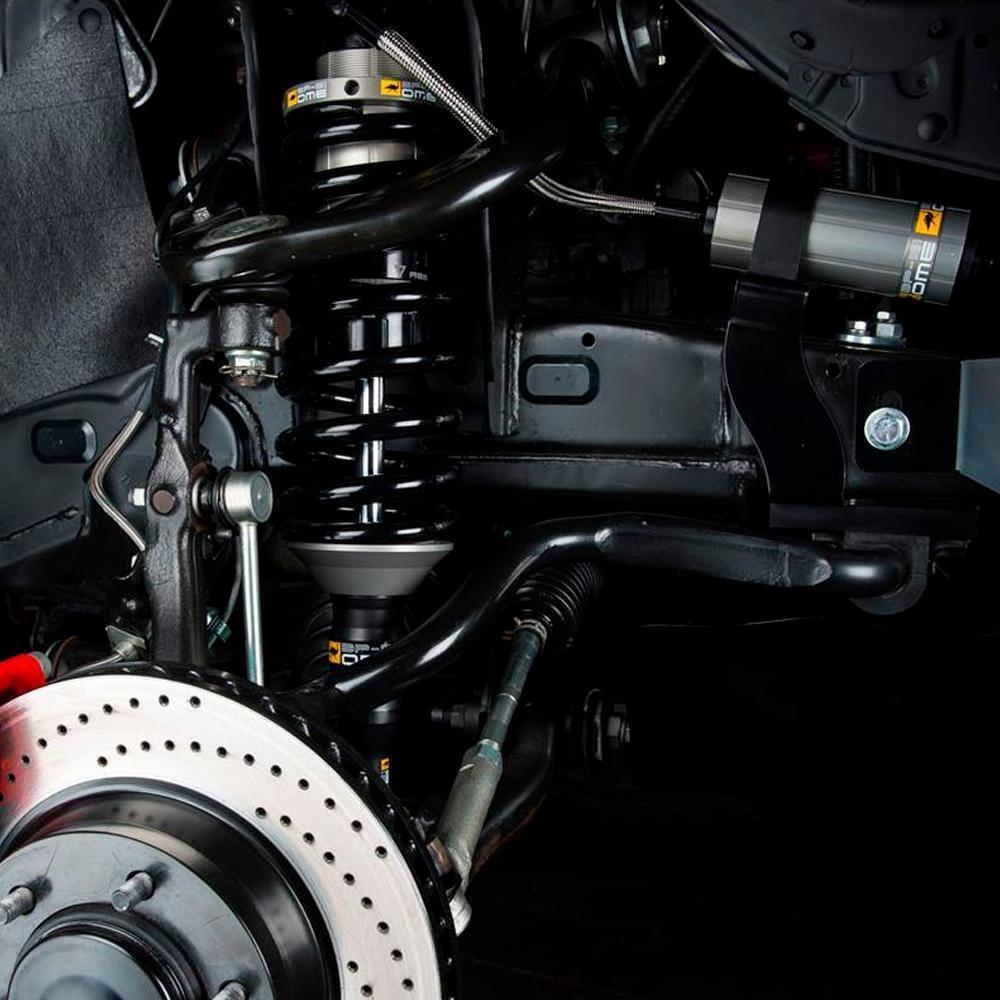

Load image into Gallery viewer, A close up of a vehicle's suspension system featuring an Old Man Emu OME BP-51 Coil Over LC200 Front RH BP5190003R shock absorber body.

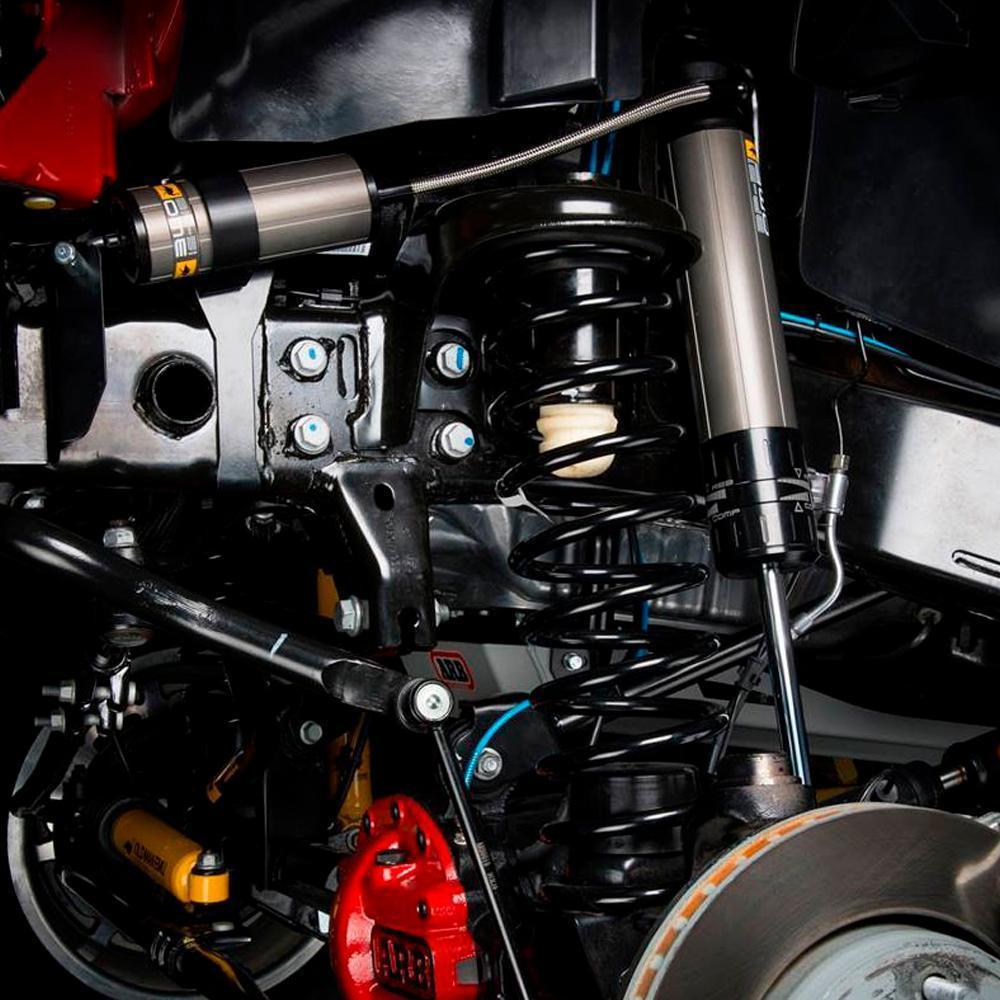

Load image into Gallery viewer, A close up of a Old Man Emu suspension system on a motorcycle featuring an OME BP-51 Coil Over LC200 Front RH BP5190003R shock absorber body.
$862.00 price-match-build-now
icon
icon
Lift Height Details
Click To Expand

*Lifts may vary, estimated heights.

Assistant

Lift Kit Advice?

Talk to us

786-699-8829
icon Guaranteed Fit
icon Free Shipping
icon 30 Day Returns

[REMOTE RESERVOIR]

  • 6061-grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

[HIGH-TEMPERATURE HOSE]

  • Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.

[SPRING ADJUSTMENT]

  • 6061-grade aluminum adjustor allows adjustment of spring preload and ride height.

[X5K COIL]

  • High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.

[SHOCK ABSORBER BODY]

  • 51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance.

[RACE TECHNOLOGY CLEVERLY PACKAGED FOR EVERYDAY 4WDS]

  • Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints; especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body where the tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.

ABOUT THIS PRODUCT

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

SPECIFICATIONS

  • Dimensions (L x W x H): 29.53 x 9.53 x 5.51 Inches.
  • Part number: BP5190003R.
  • UPC: 9332018029096.
  • 1 Right Front.
  • Weight: 33 lbs.
  • Designed and manufactured in Australia.
  • Suitable for: TOYOTA LANDCRUISER 200 SERIES WAGON ** DOES NOT SUIT AHC MODELS **.
