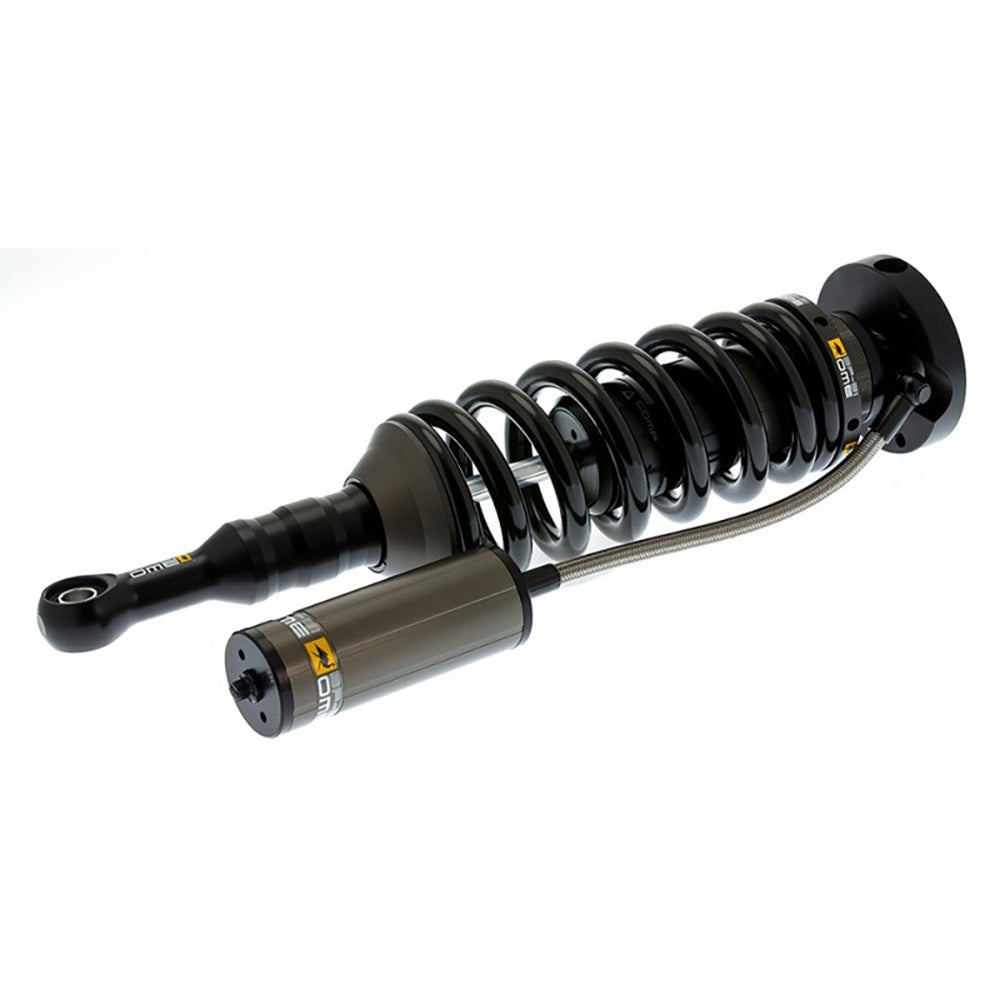

OME BP-51 Front Coil Over LH BP5190010L for Toyota Tundra (2007-2022) Old Man Emu
Starting at
/mo
with
i
[REMOTE RESERVOIR]
- 6061-grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.
[HIGH-TEMPERATURE HOSE]
- Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.
[SPRING ADJUSTMENT]
- 6061-grade aluminum adjustor allows adjustment of spring preload and rides height
[X5K COIL]
- - High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.
[SHOCK ABSORBER BODY]
- 51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance
[RACE TECHNOLOGY CLEVERLY PACKAGED FOR EVERYDAY 4WDS]
- Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints; especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body where the tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.
ABOUT THIS PRODUCT
The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.
All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.
The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.
Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.
SPECIFICATIONS
