OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu

OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu
OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu
OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu
OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu
Click to zoom in

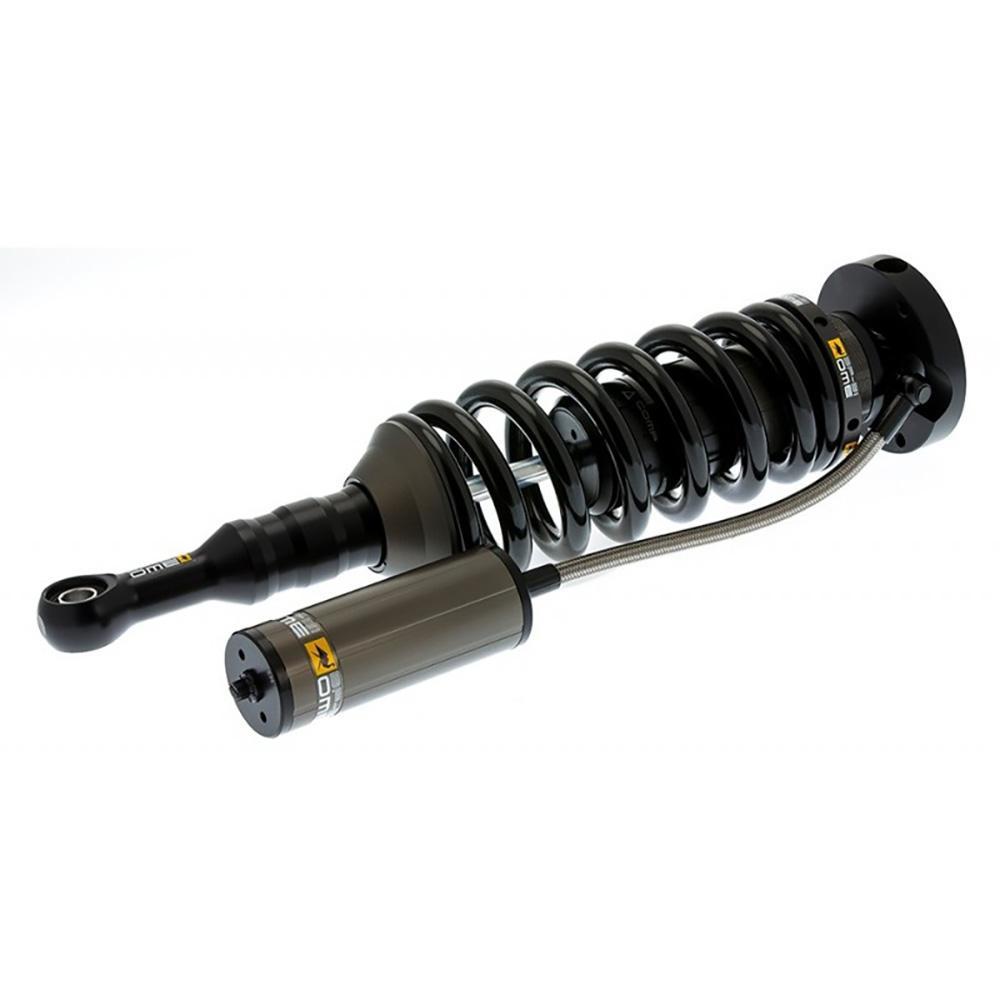

Load image into Gallery viewer, A black OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON Old Man Emu coil spring with a shock absorber body attached to it.

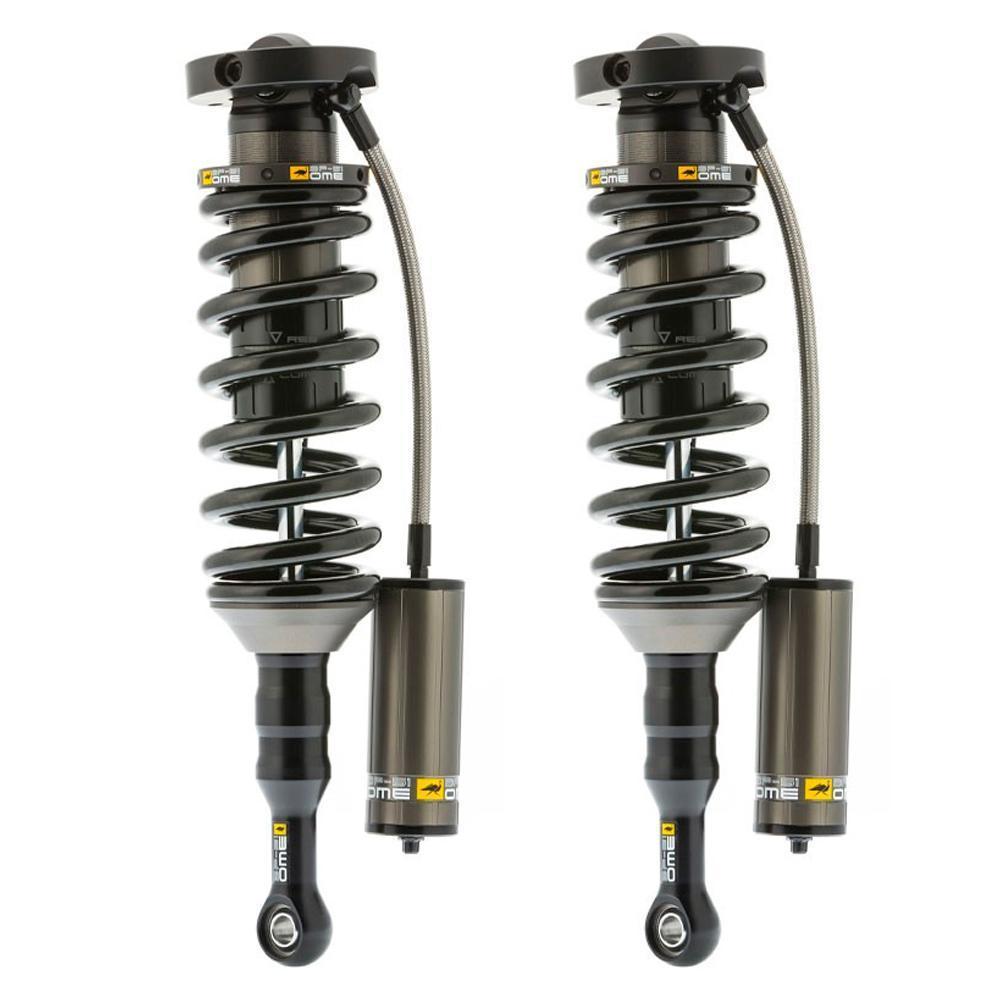

Load image into Gallery viewer, A pair of OME BP-51 Front LH Coilover BP5190007L with remote reservoir for the Toyota Tacoma by Old Man Emu.

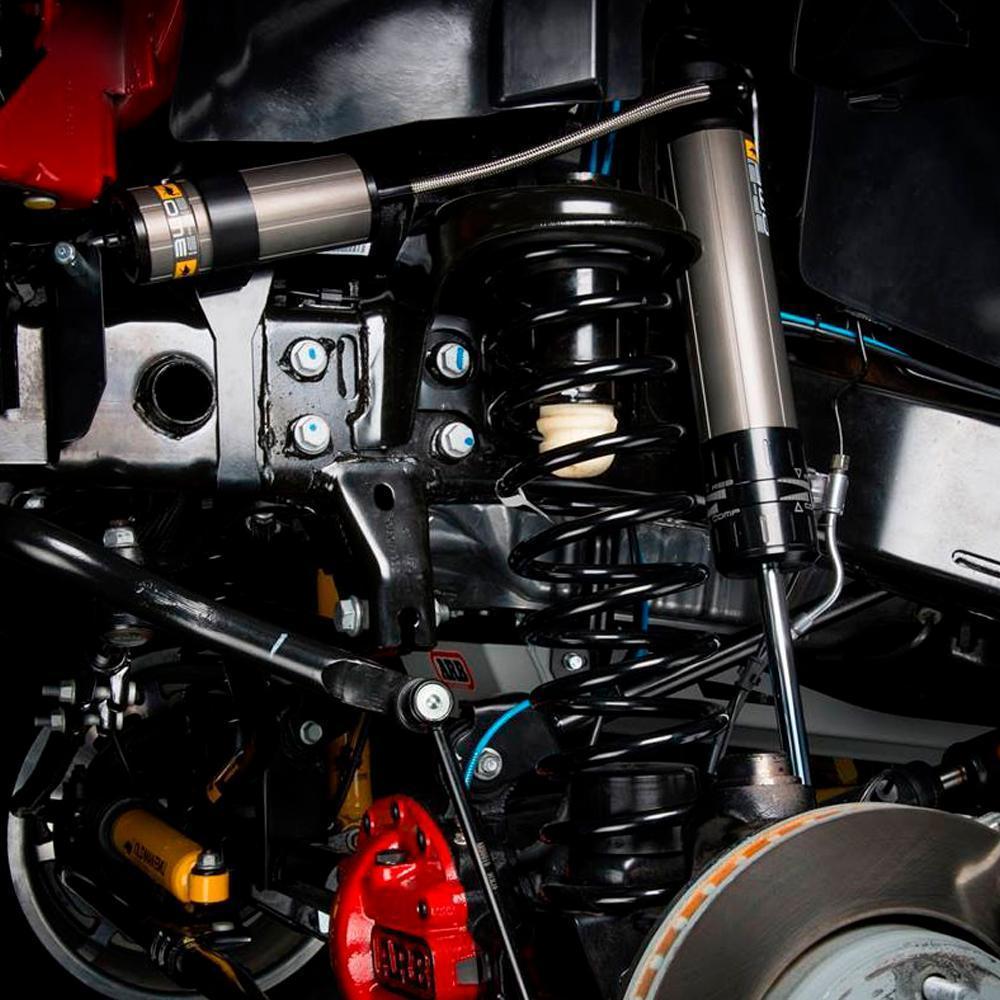

Load image into Gallery viewer, A close up of a vehicle's Old Man Emu BP-51 Front LH Coilover BP5190007L shock absorber body.

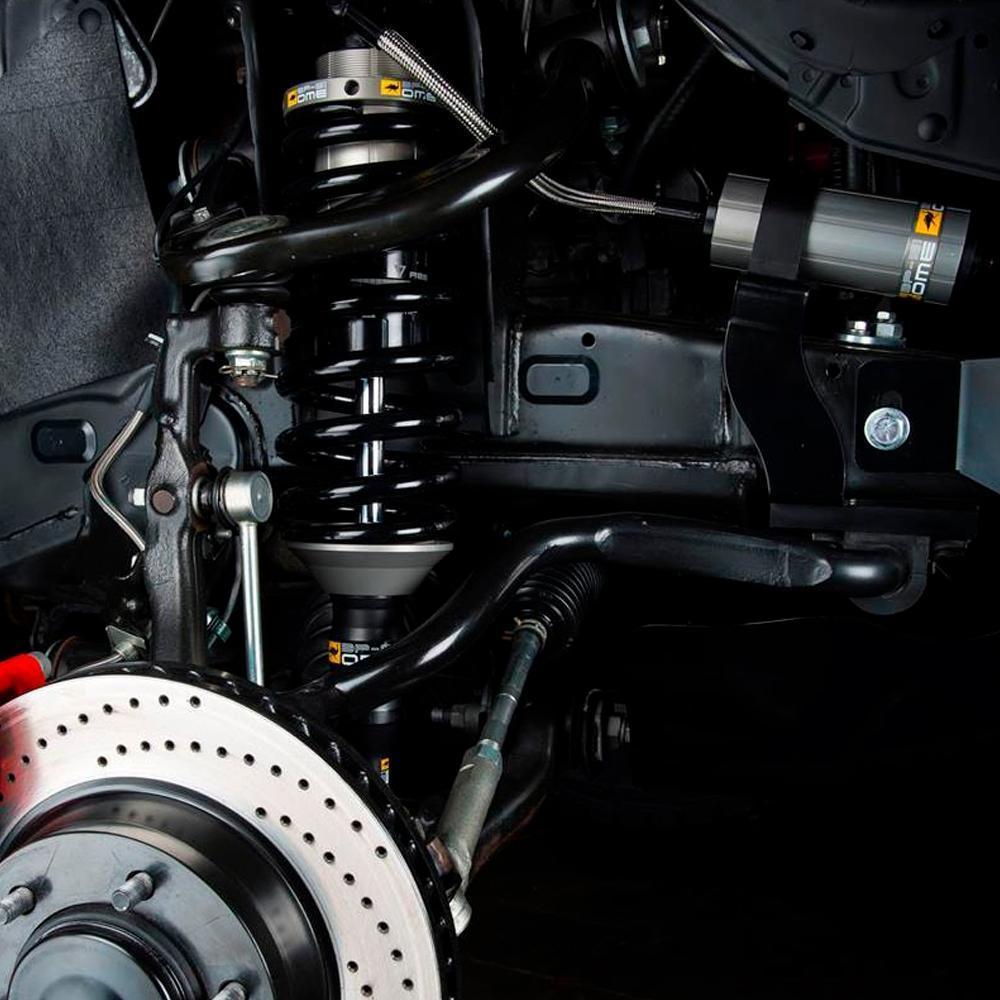

Load image into Gallery viewer, A close up of a Old Man Emu motorcycle suspension system featuring a shock absorber body with a remote reservoir attached, specifically the OME BP-51 Front LH Coilover BP5190007L for Toyota Hilux 2015-ON.
$862.00 price-match-build-now
icon
icon
Lift Height Details
Click To Expand

*Lifts may vary, estimated heights.

Assistant

Lift Kit Advice?

Talk to us

786-699-8829
icon Guaranteed Fit
icon Free Shipping
icon 30 Day Returns

[REMOTE RESERVOIR]

  • 6061-grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

[HIGH-TEMPERATURE HOSE]

  • Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.

[SPRING ADJUSTMENT]

  • 6061-grade aluminum adjustor allows adjustment of spring preload and ride height.

[X5K COIL]

  • High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.

[SHOCK ABSORBER BODY]

  • 51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance.

[RACE TECHNOLOGY CLEVERLY PACKAGED FOR EVERYDAY 4WDS]

  • Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints; especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body where the tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.

ABOUT THIS PRODUCT

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

SPECIFICATIONS

  • Dimensions (L x W x H): 34.65 x 6.35 x 3.94 Inches.
  • Part number: BP5190007L.
  • UPC: 9332018041432.
  • 1 Left Front.
  • Weight: 11.02 lbs.
  • Designed and manufactured in Australia.
  • Suitable for: TOYOTA HILUX 2015 -2022.
Read More
Read Less
Warranty

We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy

Returns

ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition. Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;) We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy

  • - Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE

  • - Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE

  • - Price Matching for Products You Have Already Purchased

  • - Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.

For Fast Products*
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.

For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
YES, If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of sale for a hassle-free refund of the amount paid for the product. Refunds do not include shipping costs. We only specify that you have the original packaging, the product not be installed, damaged, missing components or manufacturer's documentation.

Please see our full return policy Here

We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy

You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.

If you wish to cancel your order please contact us ASAP at (786) 798-6597 or through live chat. We will make our best effort to cancel the order
We are committed to keeping your personal information private and safe. We use encrypted secure communications in our checkout.

For additional details, please read our complete Privacy Policy

Description

[REMOTE RESERVOIR]

  • 6061-grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

[HIGH-TEMPERATURE HOSE]

  • Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.

[SPRING ADJUSTMENT]

  • 6061-grade aluminum adjustor allows adjustment of spring preload and ride height.

[X5K COIL]

  • High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.

[SHOCK ABSORBER BODY]

  • 51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance.

[RACE TECHNOLOGY CLEVERLY PACKAGED FOR EVERYDAY 4WDS]

  • Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints; especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body where the tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.

ABOUT THIS PRODUCT

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

SPECIFICATIONS

  • Dimensions (L x W x H): 34.65 x 6.35 x 3.94 Inches.
  • Part number: BP5190007L.
  • UPC: 9332018041432.
  • 1 Left Front.
  • Weight: 11.02 lbs.
  • Designed and manufactured in Australia.
  • Suitable for: TOYOTA HILUX 2015 -2022.
