ARB Awning Bracket 50mm(2) With Gusset 813402

An ARB Awning Bracket 50mm(2) With Gusset 813402 for the side of a vehicle, suitable for attaching roof bars or an awning.

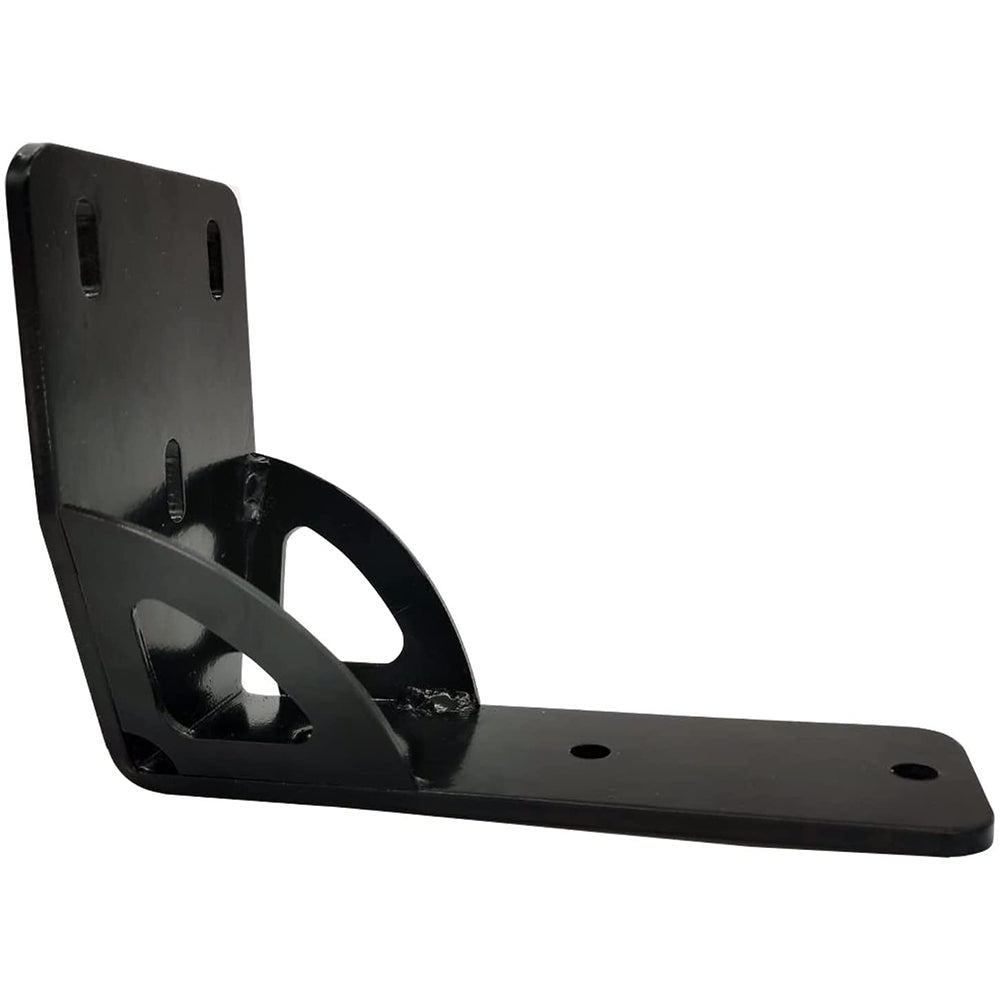

A black metal ARB Awning Bracket 50mm(2) With Gusset 813402, suitable for roof awing bars, with two corrosion resistant holes.

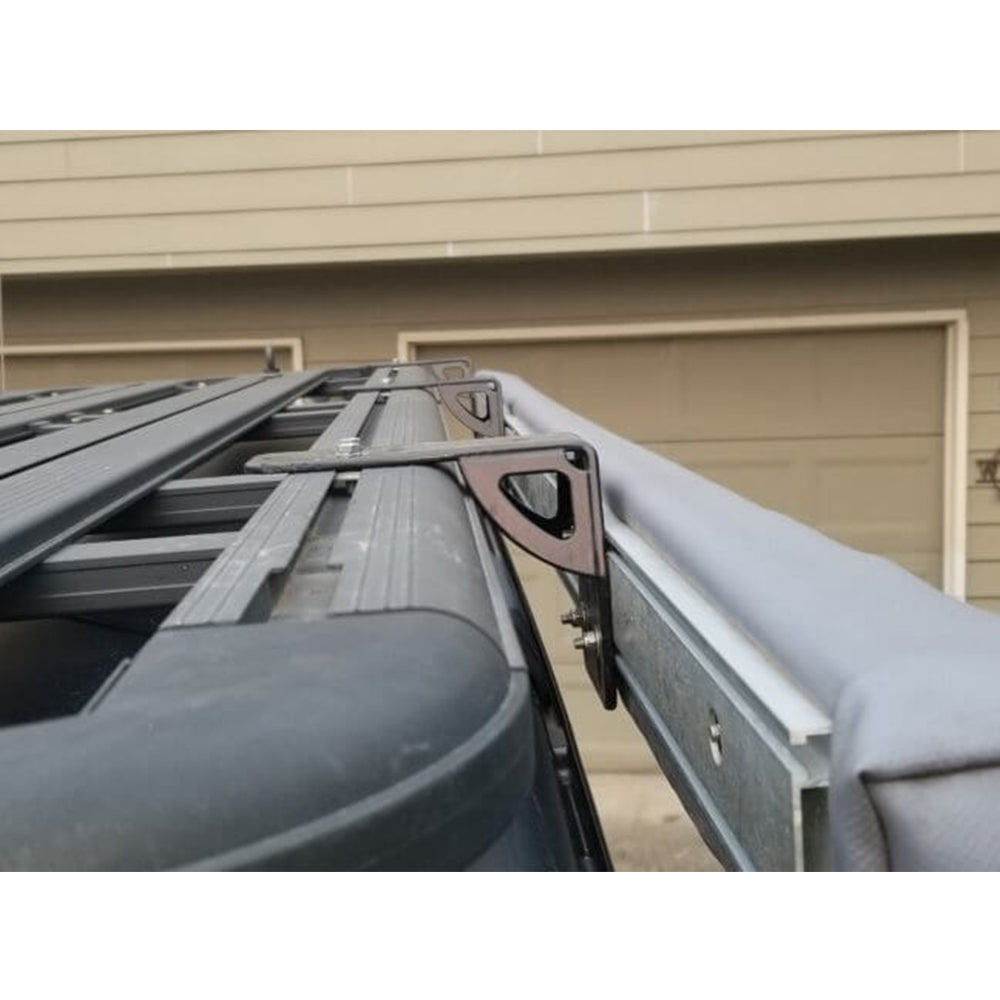

An ARB Awning Bracket 50mm(2) With Gusset 813402, a corrosion-resistant roof rack with roof bars attached to the side of a car.

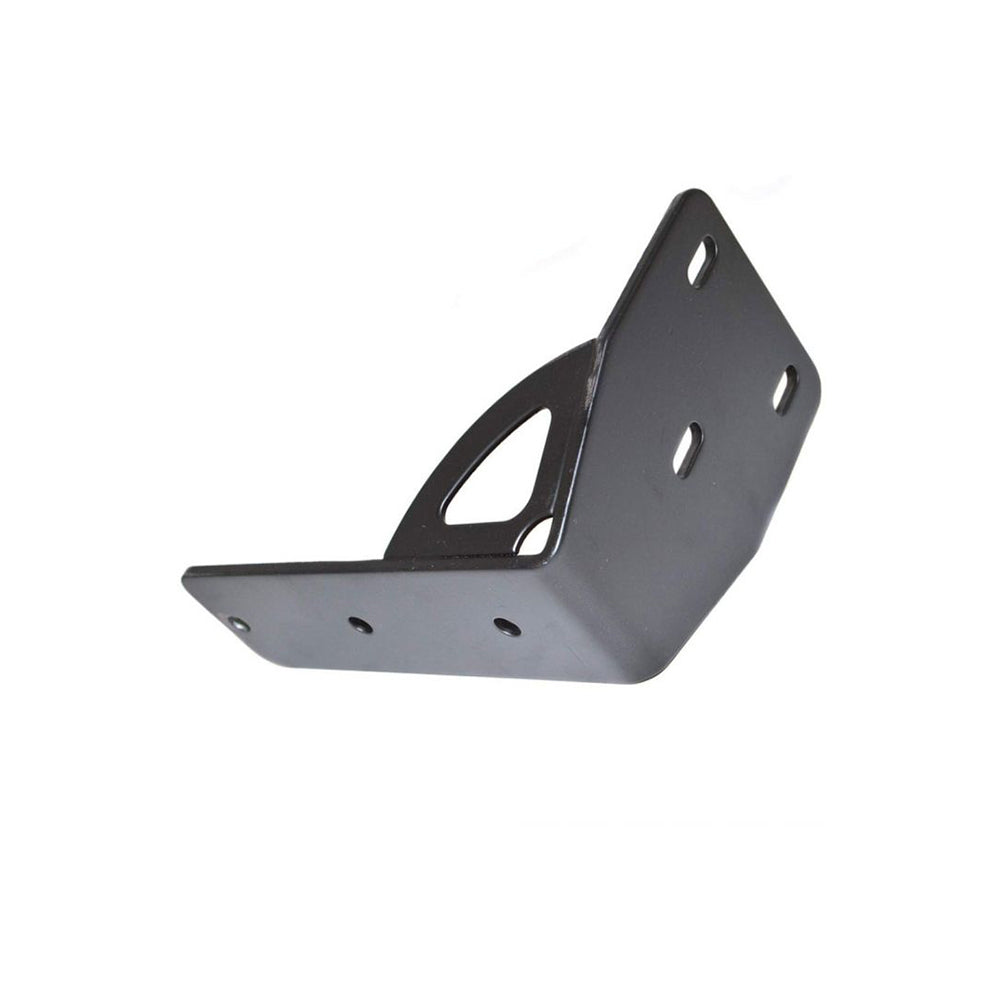

An ARB Awning Bracket 50mm(2) With Gusset 813402 for a motorcycle on a white background.

ABOUT THIS PRODUCT

The 813402 Awning bracket is designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off-road or under extreme conditions.

Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the awning bracket is 50 mm wide allowing it to fit over both Thule SquareBar & Rhino Heavy Duty bars in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar & AeroBar or Rhino Heavy Duty.

SPECIFICATIONS

Dimensions (L x W x H): ‎5.00 x 3.50 x 6.50 inches.
Weight: ‎2.00 lb.
Designed and manufactured in Australia.
Part number: 813402.
Fitment: Universal.
