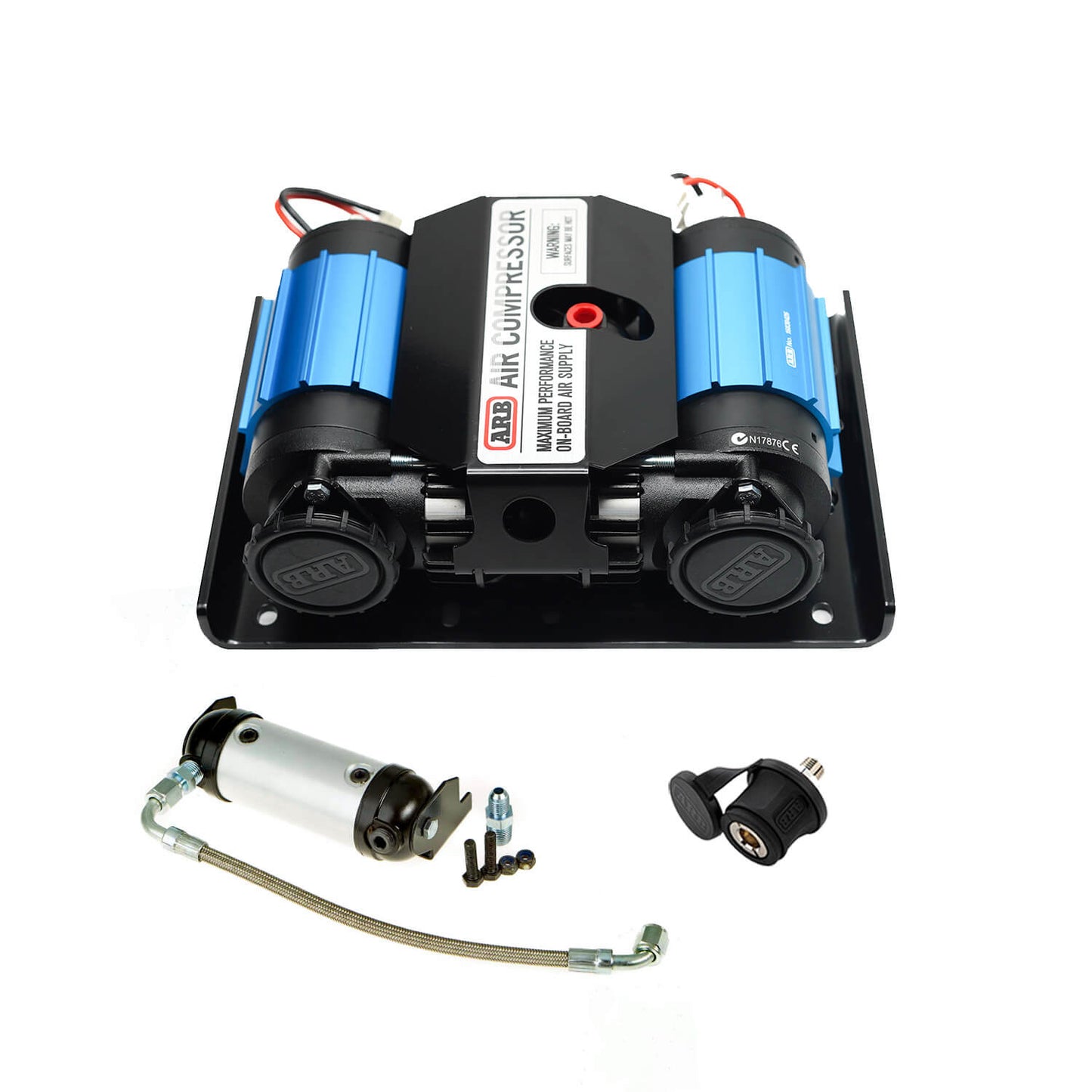

ARB Twin 12V Onboard Compressor Kit CKMTA12BK1
$1,064.75
Starting at
/mo
with
i
45 day hassle free returns & exchanges
Manufacturer Warranty
FEATURES
- Constructed primarily of lightweight, high-strength, engineering-grade materials, including military and aerospace-grade components.
- Pressure switch-controlled air manifold system regulates pressure.
- Highest air flow rate and high-efficiency design minimizes power consumption.
- Sealed components for moisture and dust resistance.
- Hard-anodized cylinder bores and PTFE-impregnated carbon fiber piston seals for reduced friction and maximum life.
- Ducted, sealed, brushless DC cooling fan and anodized motor mount brackets effectively dissipate heat from the motors, heads, and electronics.
- Anti-vibration, sound-deadening mount.
- Relocatable, splash-resistant air filter assemblies for cleaner, cooler air supply and versatile water-resistant air intake positioning.
- High-density and high-flow washable sintered bronze air filter elements.
- Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids (requires Air Locker manifold kit ARB-171503, sold separately, to mount solenoids).
- Dual, heavy-duty Maxi-Fuses for in-line circuit protection and true circuit redundancy in case of a fault.
- Ball bearing-equipped motor (no bushings) with unique, linear brush, pre-load system for long life, low heat, and quiet operation.
- Motors are internally thermal-protected against extreme temperature damage.
- Compressor pistons equipped with a heavy-duty, European-made cylindrical roller bearing.
- Over-pressure safety valve-equipped.
- Sealed, illuminated, automotive-grade dash switch included.
- EMF-suppressed for use in proximity to sensitive electronic equipment.
- CE and C-Tick compliant.
- Engineered, built, and individually dyno-tested in Australia.
ABOUT THIS PRODUCT

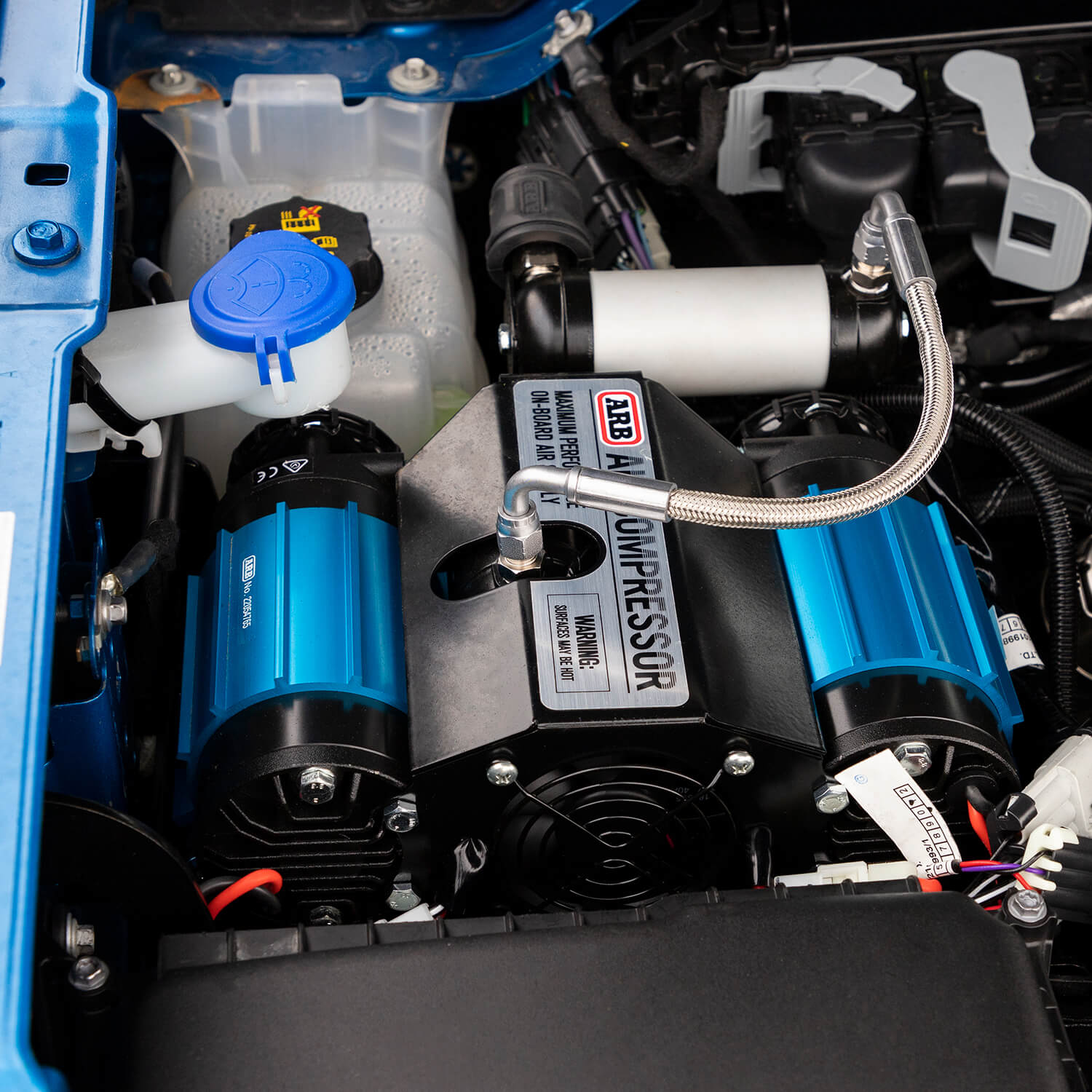

Whether you're a seasoned overlander or a newbie off-roader we can all reap the benefits of an onboard air compressor. This invaluable adventure upgrade can easily be installed under the hood of your Ford Bronco with the ARB Compressor Engine Bay Mount that has been validated by Ford Engineers. The mount is 100% bolt-on and uses factory mounting points with support for both 2.3L and 2.7L engines.
SPECIFICATIONS
- Product Dimensions (L x W x H): 23 x 18 x 13 inches.
- Weight: 35.1 lbs.
- Designed and manufactured in Australia.
- UPC: 9332018100054.
- Part number: CKMTA12BK1.
