- BDS 3 Inch Lift Kit w/ Radius Arm | FOX 2.5 Coil-Over Conversion - Performance Elite | Ford F250/F350 Super Duty (23-24) 4WD
Built to Outperform, take your 23-24 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

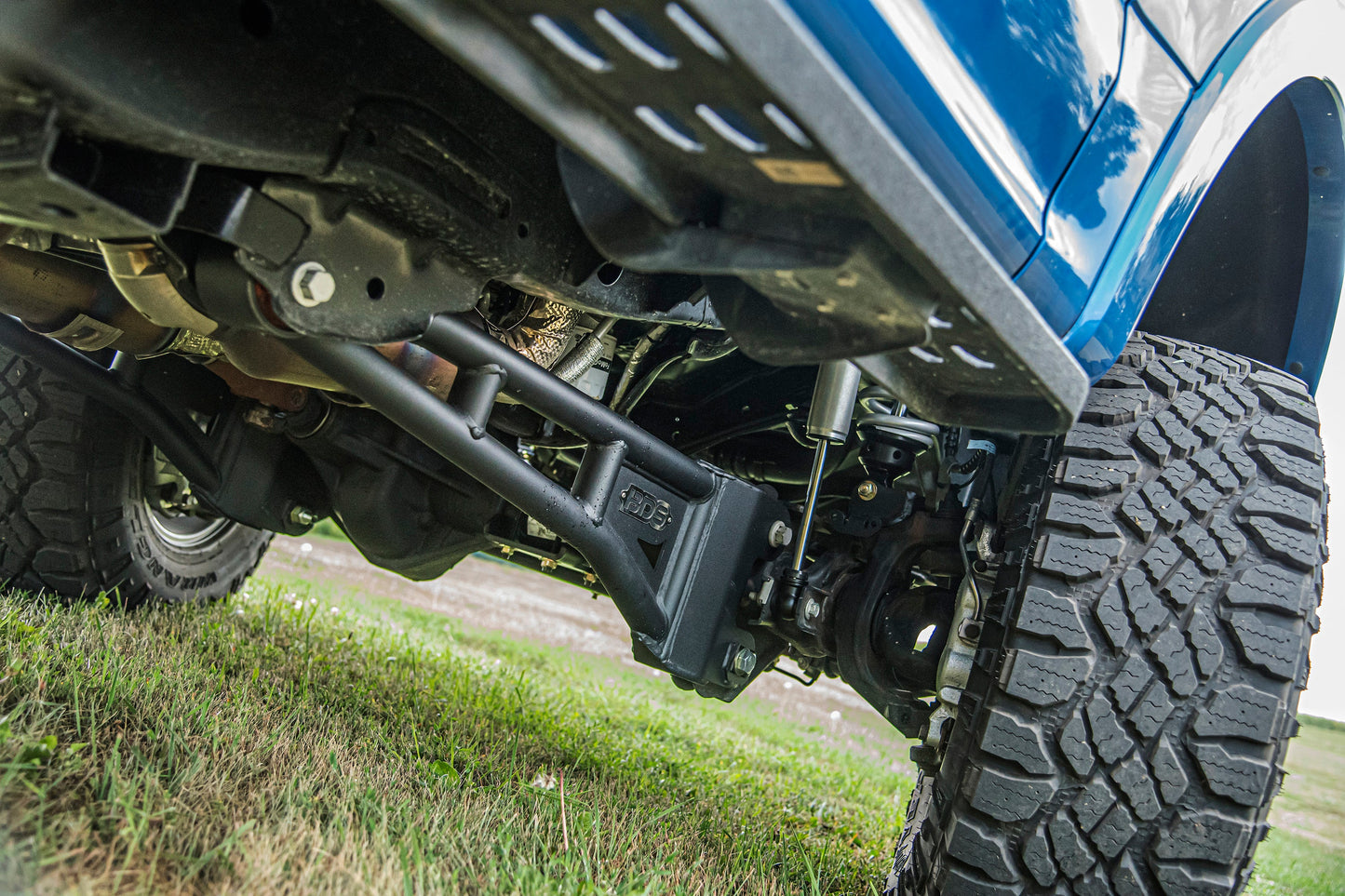

HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

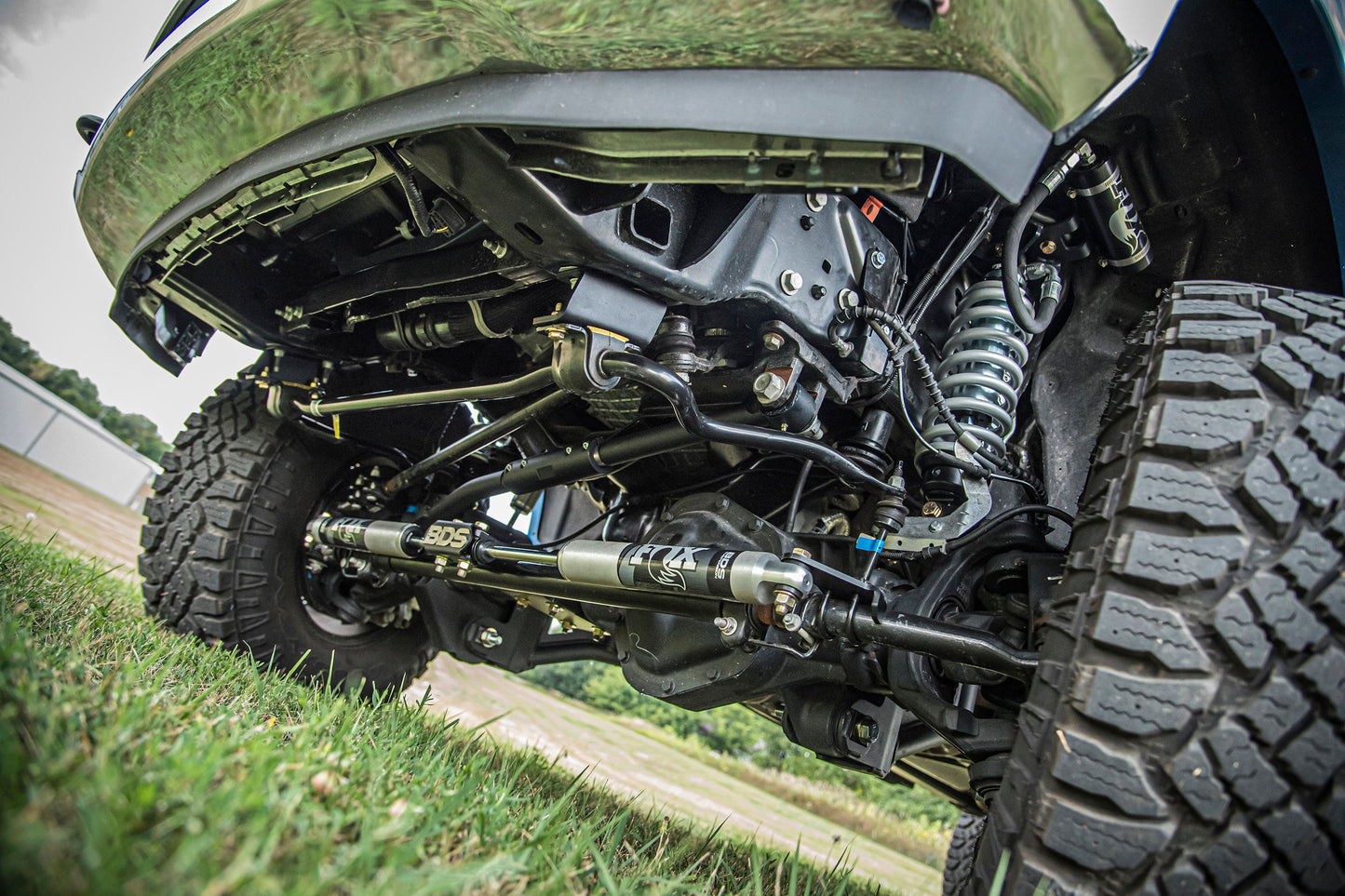

HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 6 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 35 x 12.5 with 17 x 9 and 5 in. Backspace.
- 35 x 12.5 with 18 x 9 and 5 in. Backspace.
- 35 x 12.5 with 20 x 9 and 5 in. Backspace.
Item | Qty |
BDS013108 - 2017-2024 F250/F350 1" Rear Block Kit | 1 |
BDS013261 - 2020-2024 F250/350 2.5" Front Box Kit | 1 |
BDS123263 - 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
FOX88406426 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 2.5" Lift, DSC | 1 |
FOX98224710 - Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 | 2 |
FOX98224717 - Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 | 2 |
Warranty
We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy
Returns
ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition.
Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;)
We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy
-
- Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE
-
- Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE
-
- Price Matching for Products You Have Already Purchased
-
- Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.
For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
Click here for our Full Warranty Policy
You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.
For additional details, please read our complete Privacy Policy
Description
Built to Outperform, take your 23-24 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 6 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 35 x 12.5 with 17 x 9 and 5 in. Backspace.
- 35 x 12.5 with 18 x 9 and 5 in. Backspace.
- 35 x 12.5 with 20 x 9 and 5 in. Backspace.
Important Notes
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
- Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height
- Installation requires a torque wrench capable of 406 ft-lbs.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
- Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
Fitment

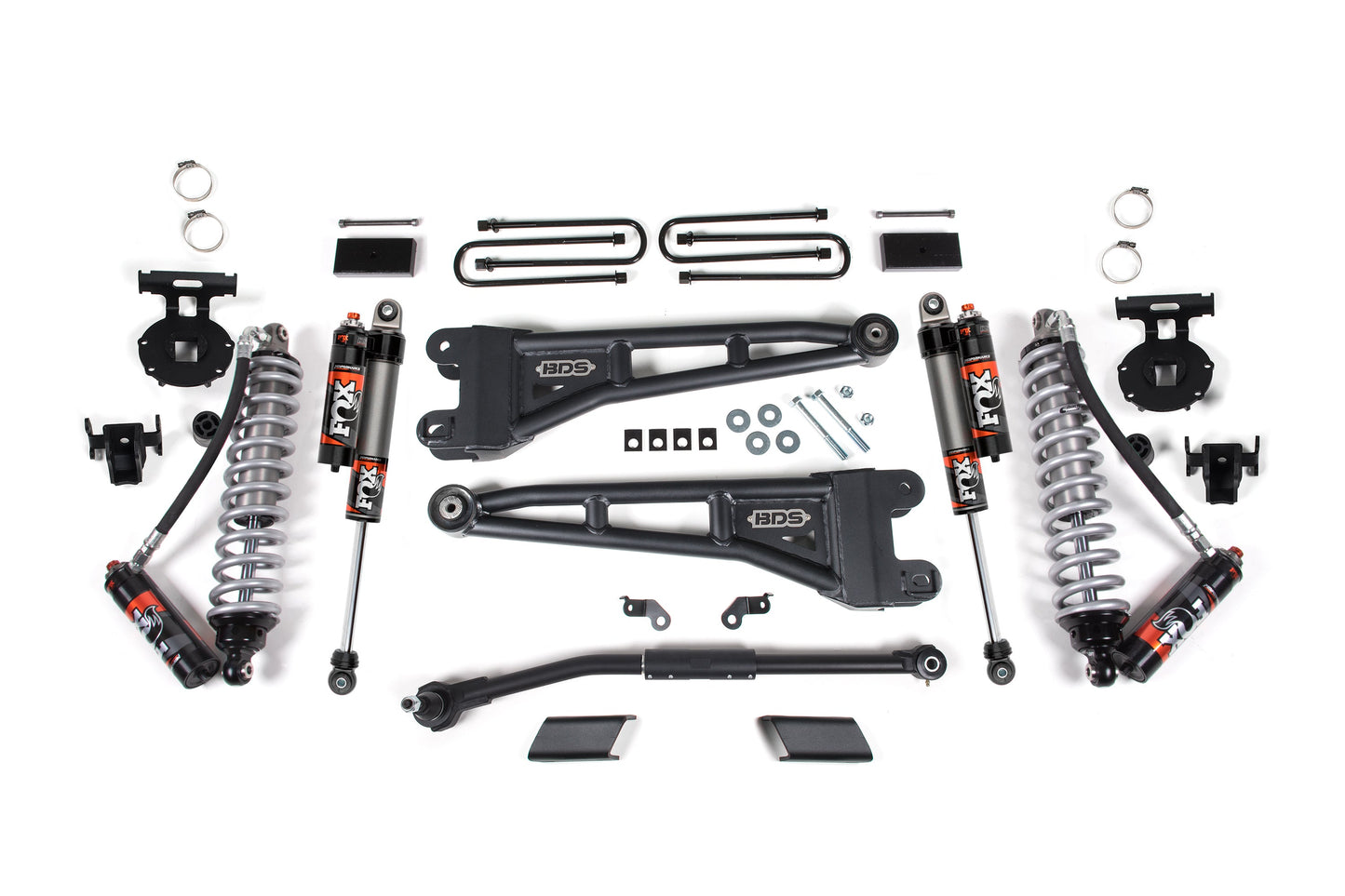

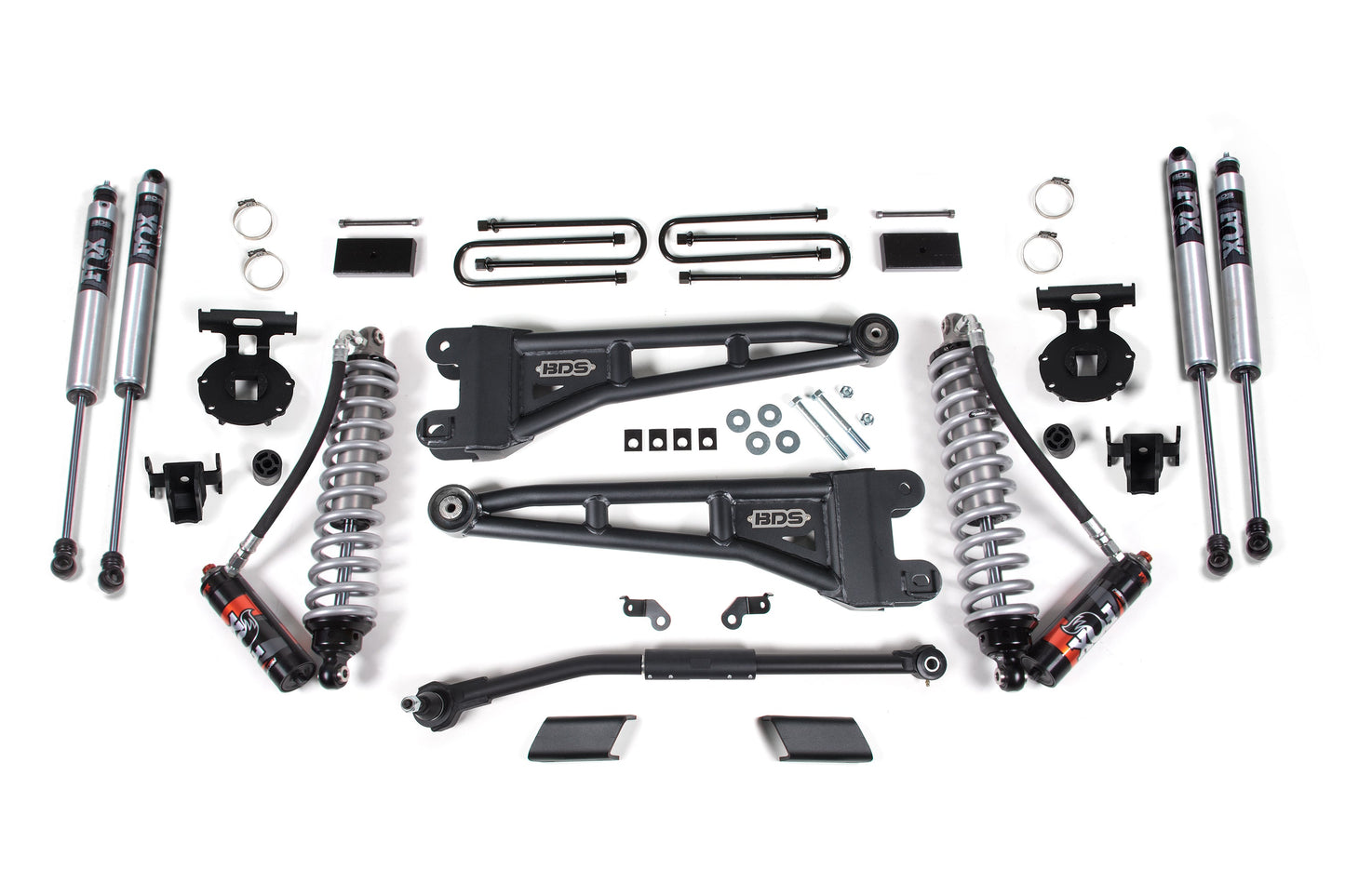

Set Includes (In the Box)
Item | Qty |
BDS013108 - 2017-2024 F250/F350 1" Rear Block Kit | 1 |
BDS013261 - 2020-2024 F250/350 2.5" Front Box Kit | 1 |
BDS123263 - 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
FOX88406426 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 2.5" Lift, DSC | 1 |
FOX98224710 - Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 | 2 |
FOX98224717 - Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 | 2 |
Item | Qty |
BDS013108 - 2017-2024 F250/F350 1" Rear Block Kit | 1 |
BDS013261 - 2020-2024 F250/350 2.5" Front Box Kit | 1 |
BDS123263 - 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
FOX88326096 - Kit: 2017-2024 Ford SD Rear, 2.5 Truck PES, P/B, 0-1.5" Lift, DSC | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88406426 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 2.5" Lift, DSC | 1 |
