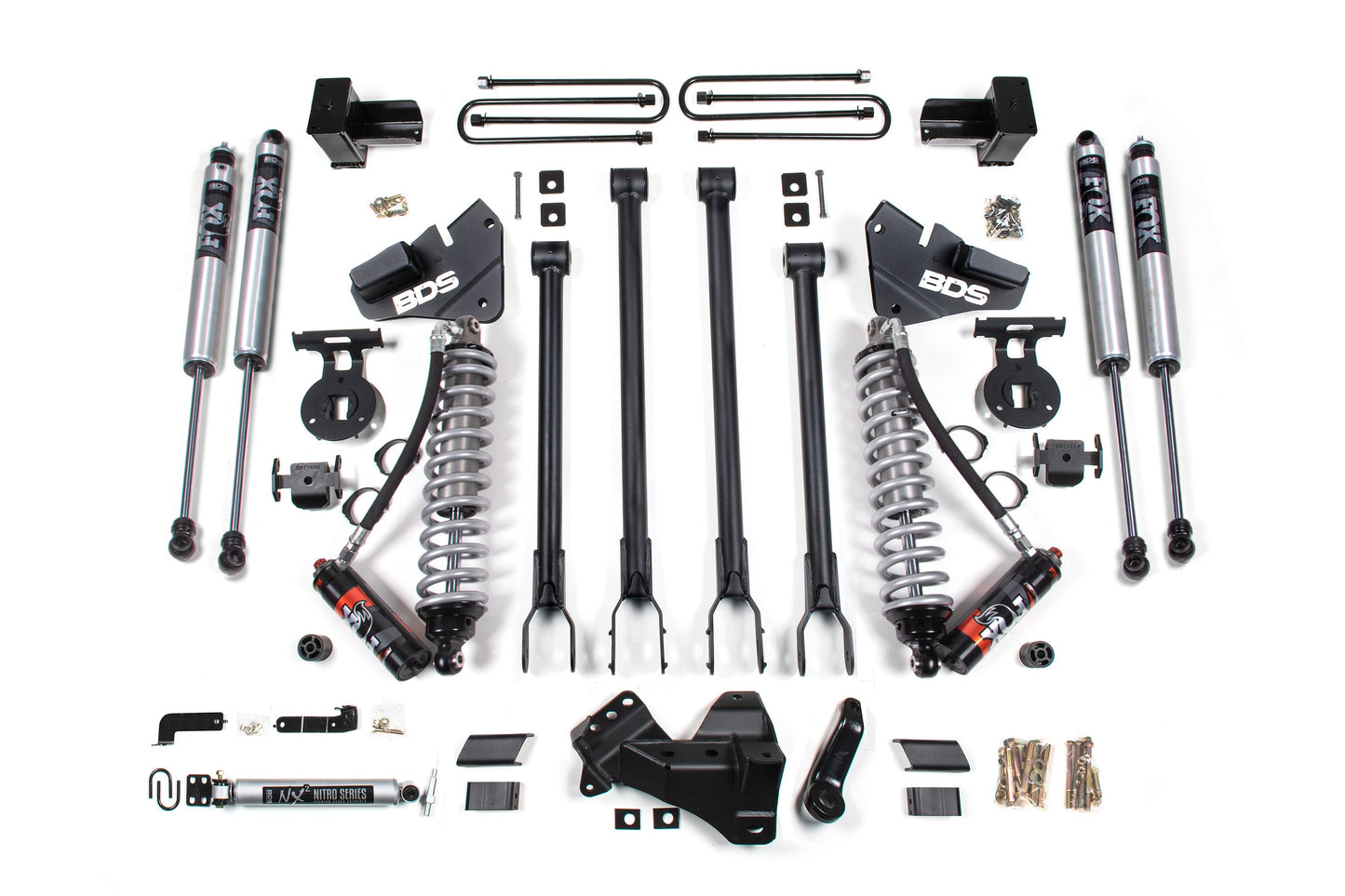

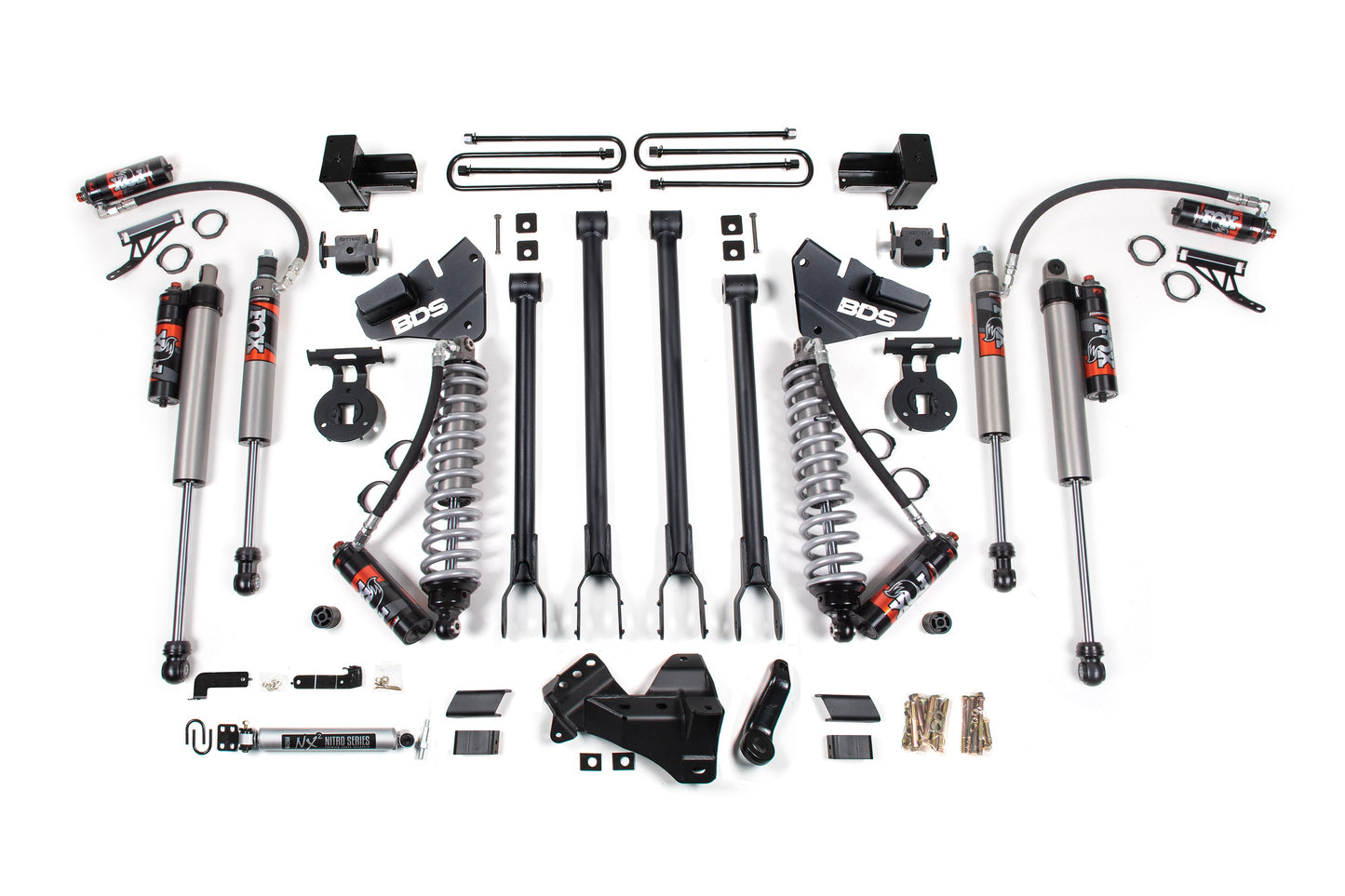

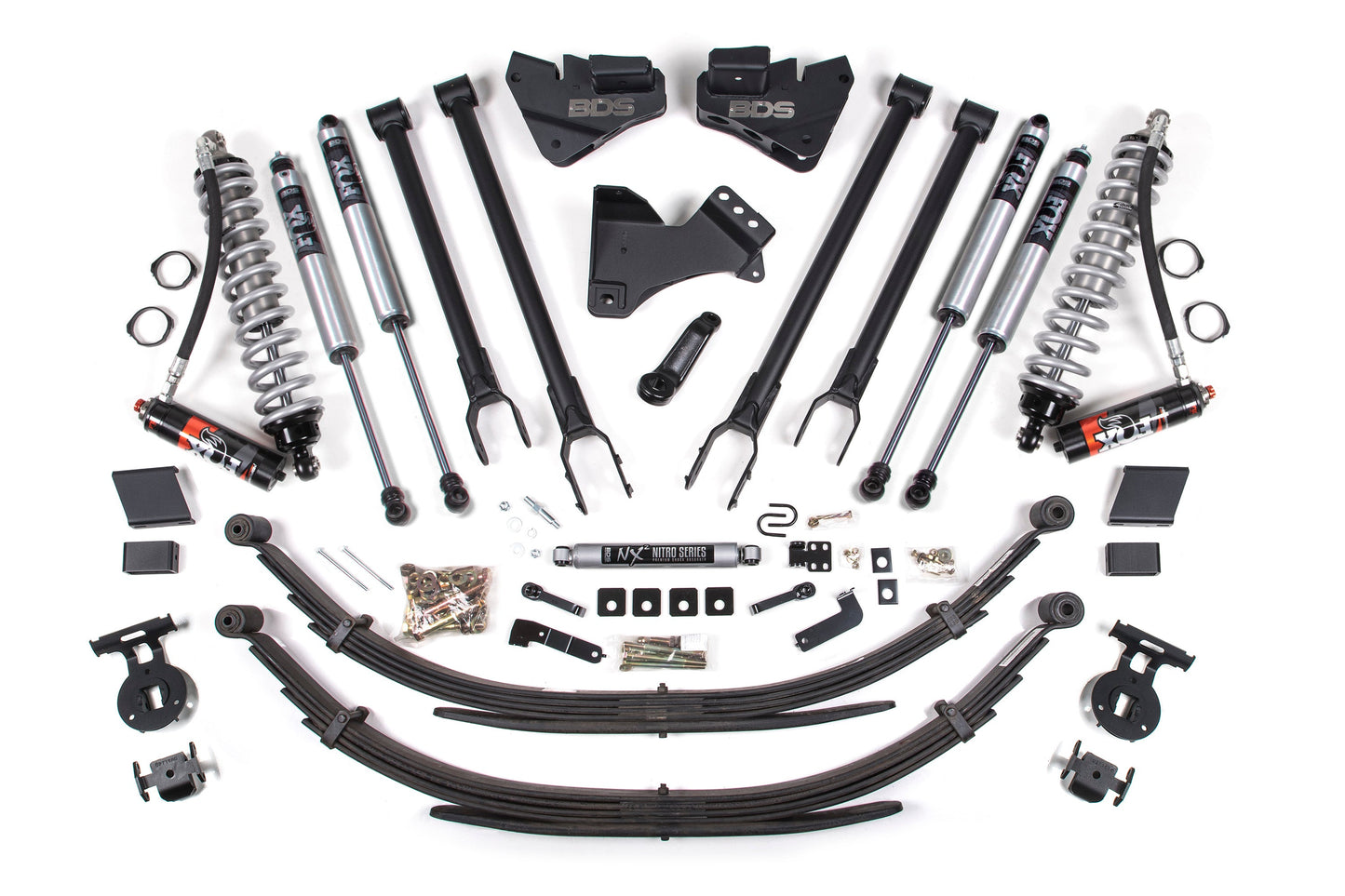

- BDS 4 Inch Lift Kit w/ 4-Link | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
Maximize the capability of your 2017-2019 Ford Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace.
- 37 x 12.5 with 18 x 9 and 5 in. Backspace.
- 37 x 12.5 with 20 x 9 and 5 in. Backspace.
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013517 - 2017-2024 F250 5" Rear Block Kit - 2 Leaf Main (W/O Overload Springs) | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Warranty
We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy
Returns
ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition.
Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;)
We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy
-
- Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE
-
- Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE
-
- Price Matching for Products You Have Already Purchased
-
- Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.
For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
Click here for our Full Warranty Policy
You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.
For additional details, please read our complete Privacy Policy
Description
Maximize the capability of your 2017-2019 Ford Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace.
- 37 x 12.5 with 18 x 9 and 5 in. Backspace.
- 37 x 12.5 with 20 x 9 and 5 in. Backspace.
Important Notes
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
Fitment
Set Includes (In the Box)
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013517 - 2017-2024 F250 5" Rear Block Kit - 2 Leaf Main (W/O Overload Springs) | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013517 - 2017-2024 F250 5" Rear Block Kit - 2 Leaf Main (W/O Overload Springs) | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88326098 - Kit: 2017-2023 Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013516 - 2017-2024 F250 5" Rear Block Kit -3 Leaf Main | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Item | Qty |
BDS003639 - 2017-2024 Super Duty 6" Rear Leaf Spring | 2 |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013438 - 2017-2024 Ford F250/F350 4" Rear Leaf Spring Box Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013516 - 2017-2024 F250 5" Rear Block Kit -3 Leaf Main | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88326098 - Kit: 2017-2023 Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
Item | Qty |
BDS003639 - 2017-2024 Super Duty 6" Rear Leaf Spring | 2 |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013438 - 2017-2024 Ford F250/F350 4" Rear Leaf Spring Box Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88326098 - Kit: 2017-2023 Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC | 1 |
FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC | 1 |
