BDS 5 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (20-22) 4WD | Diesel
Starting at
/mo
with
i
Select Rear Setup
Shock Option

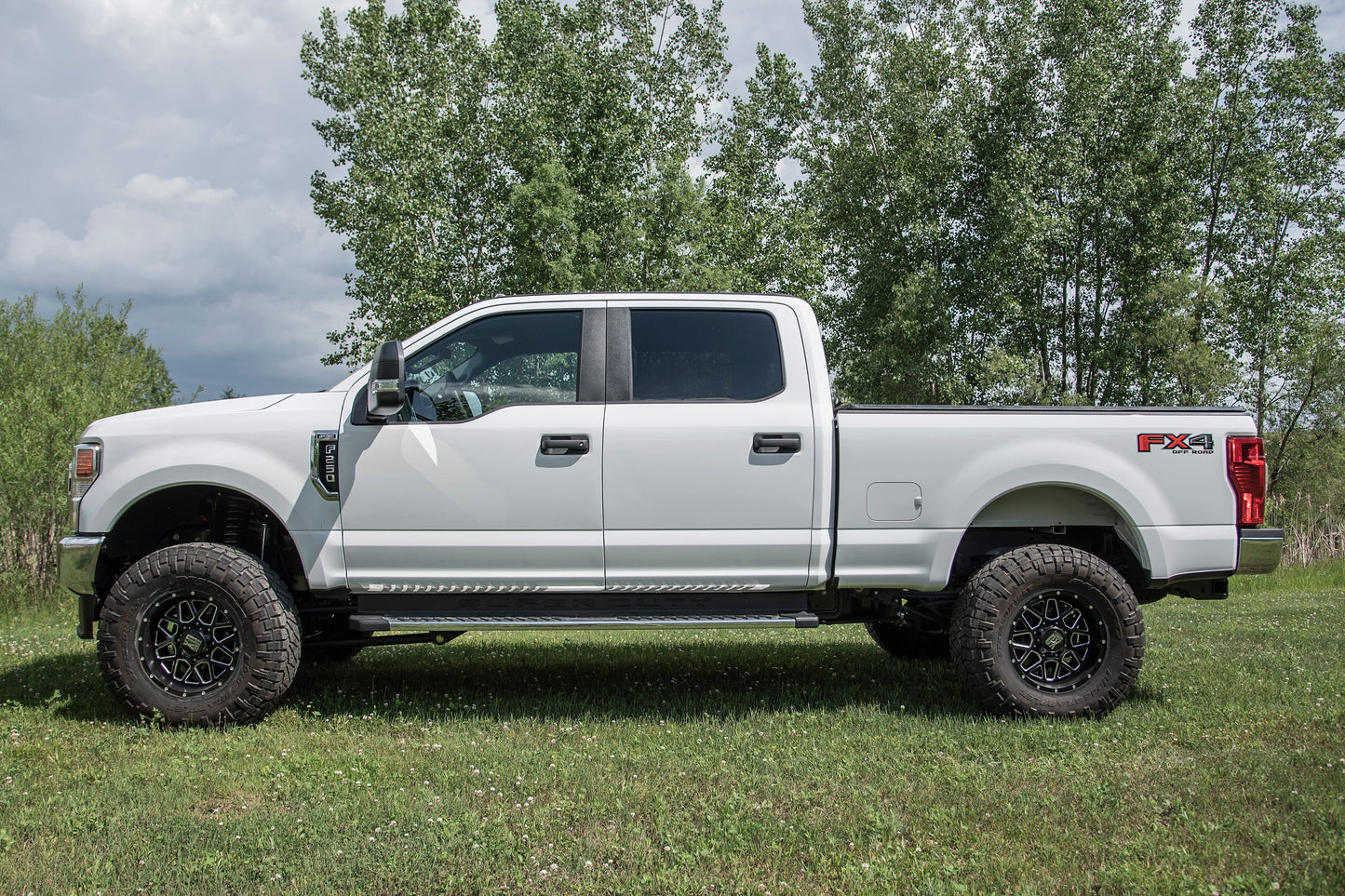

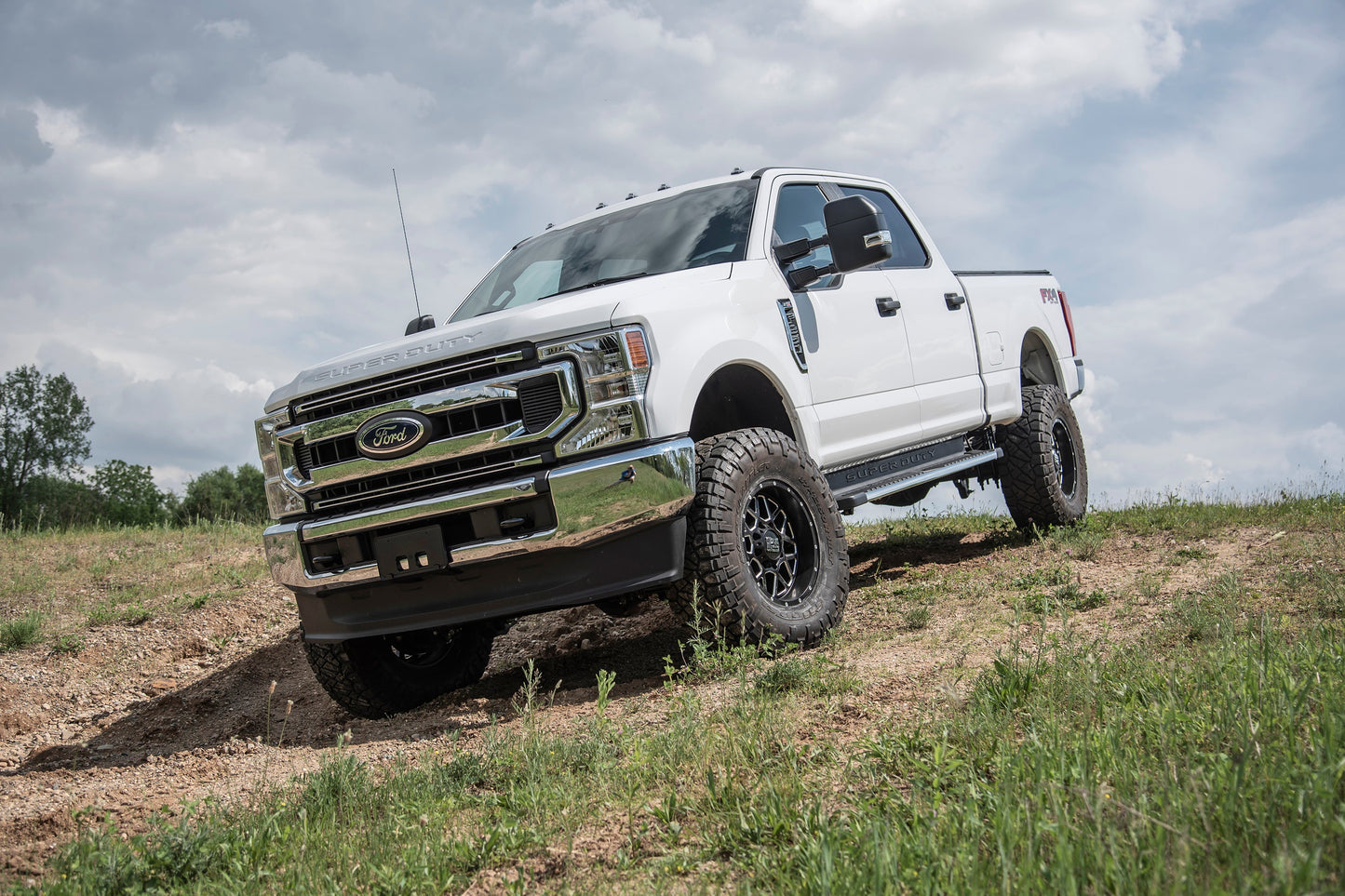

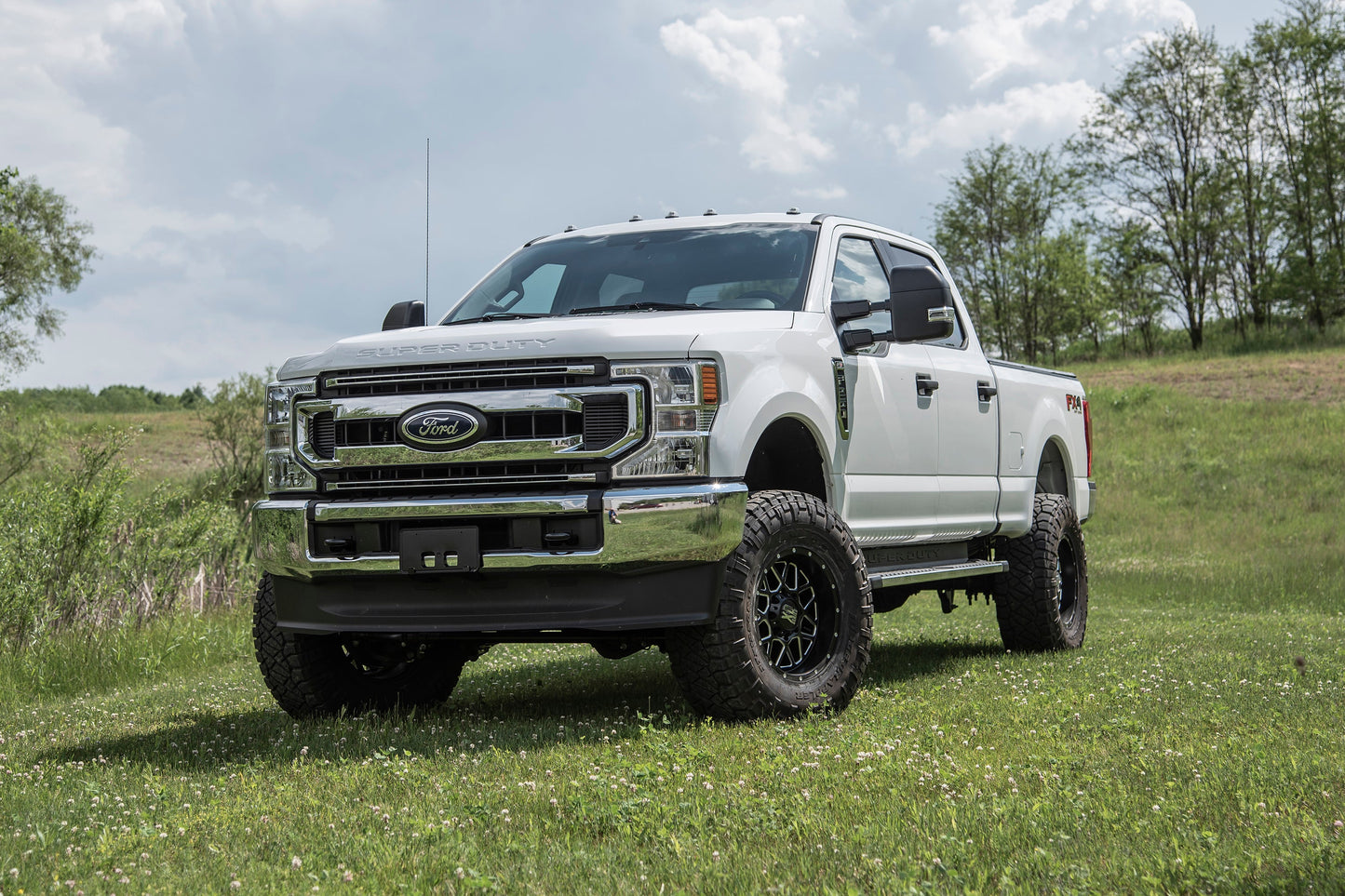

Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

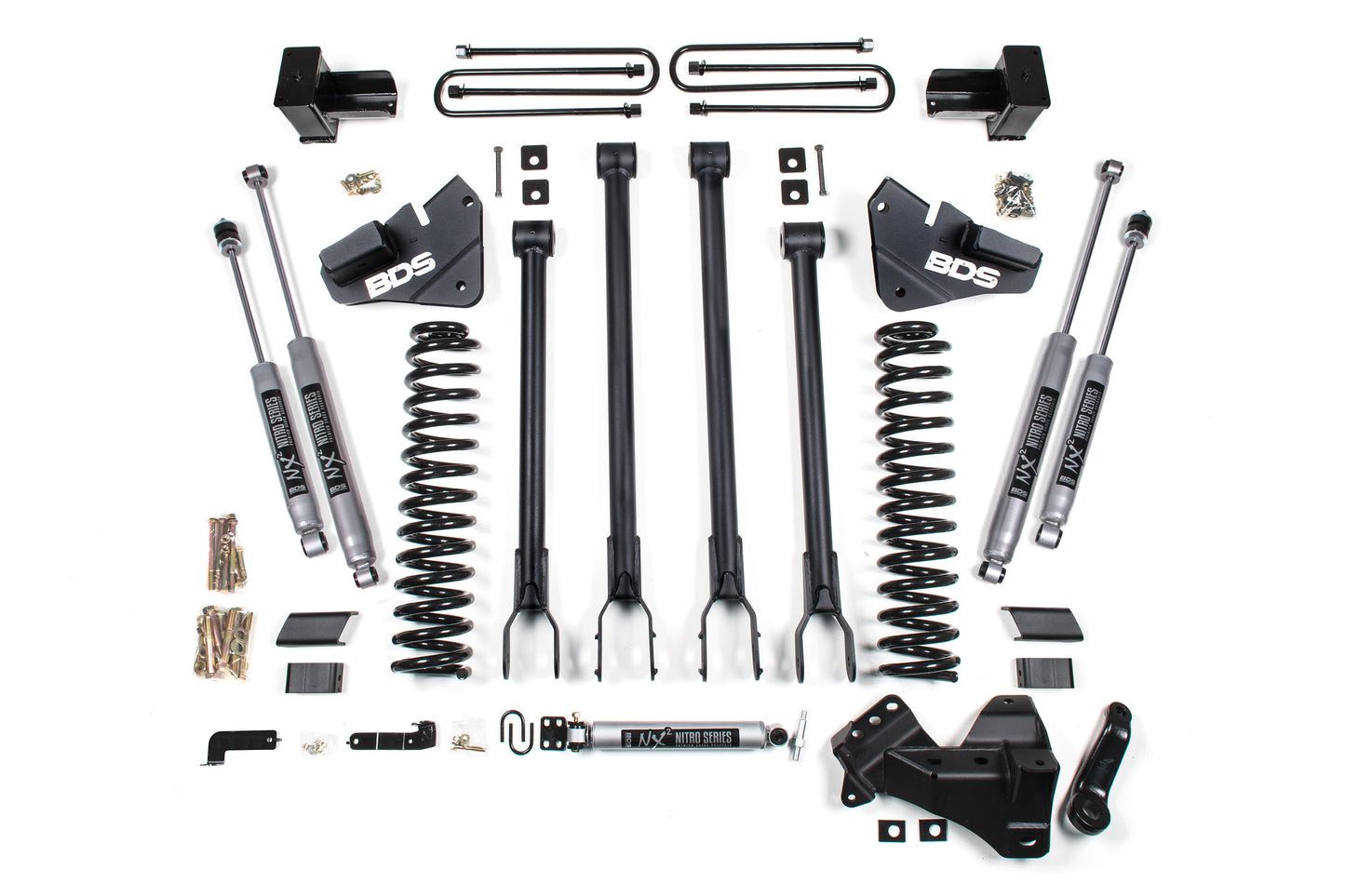

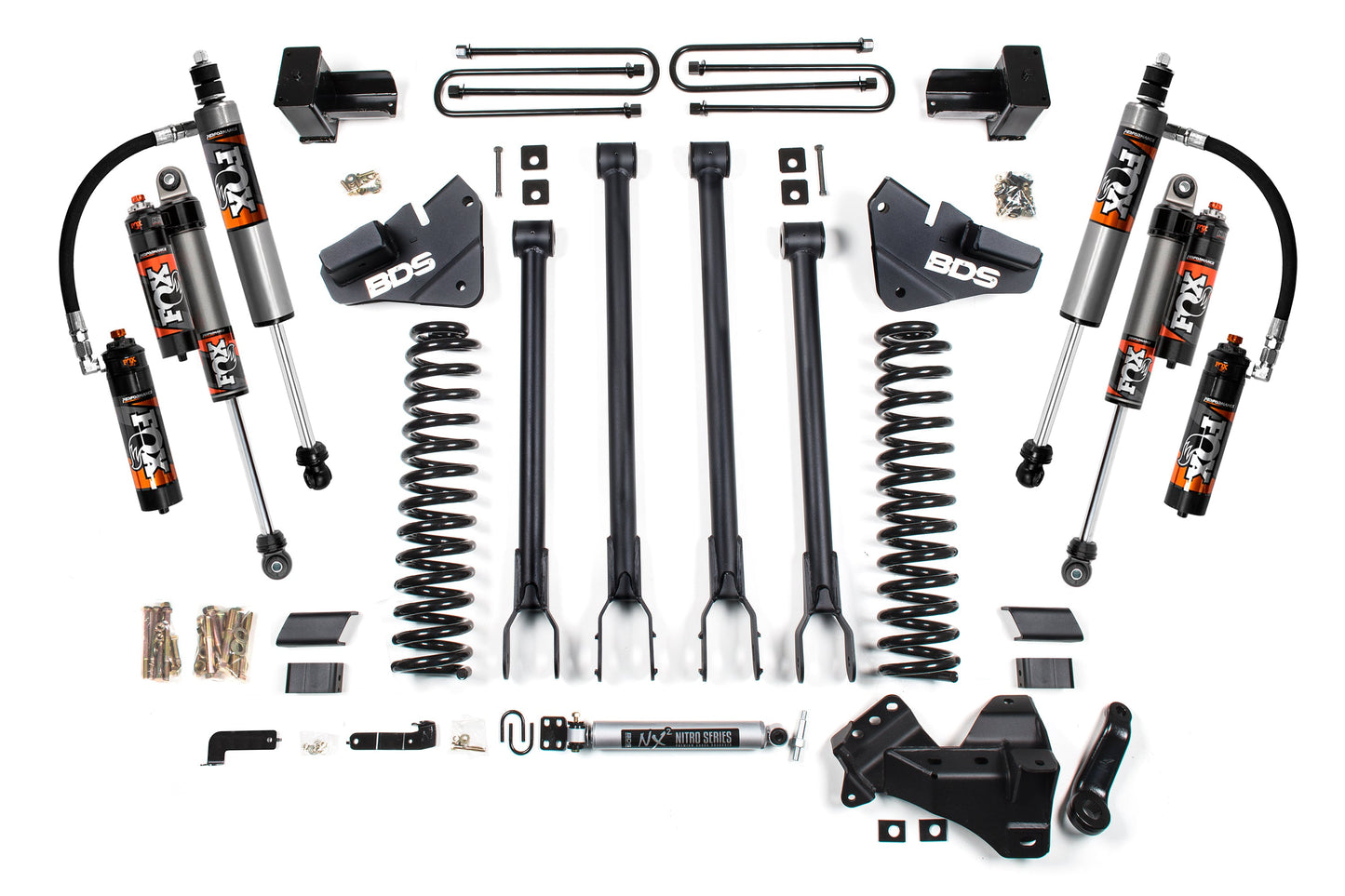

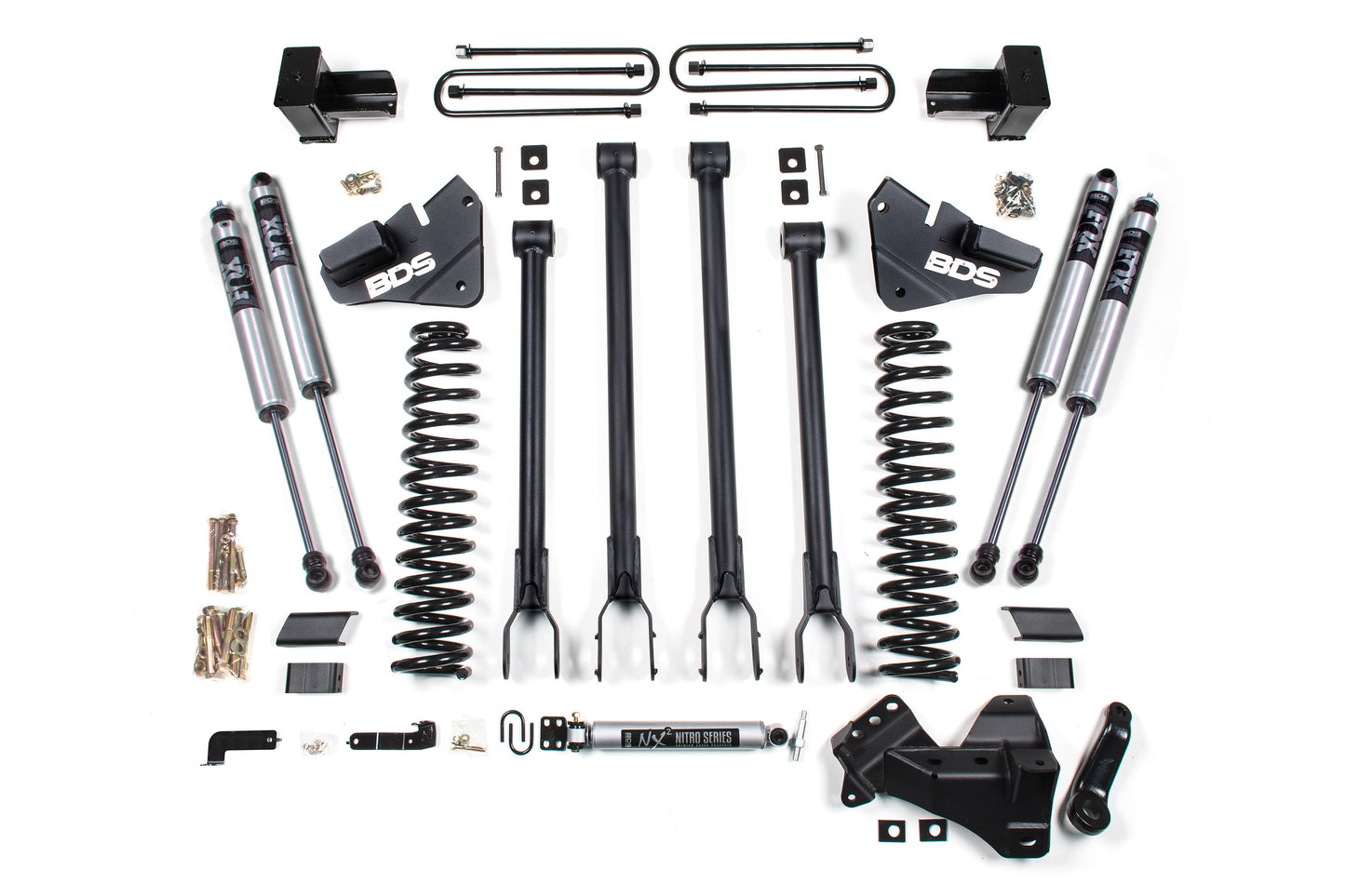

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

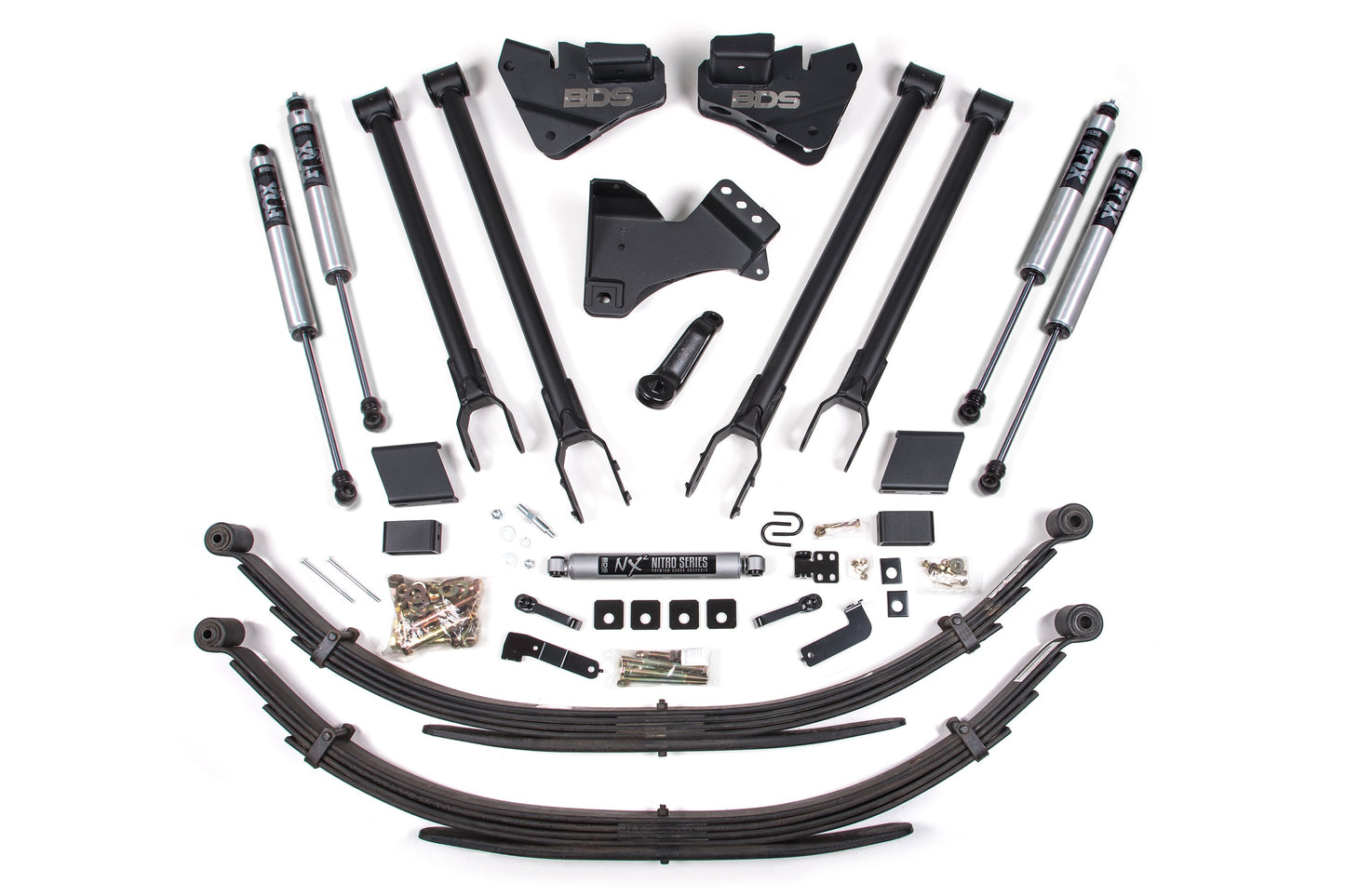

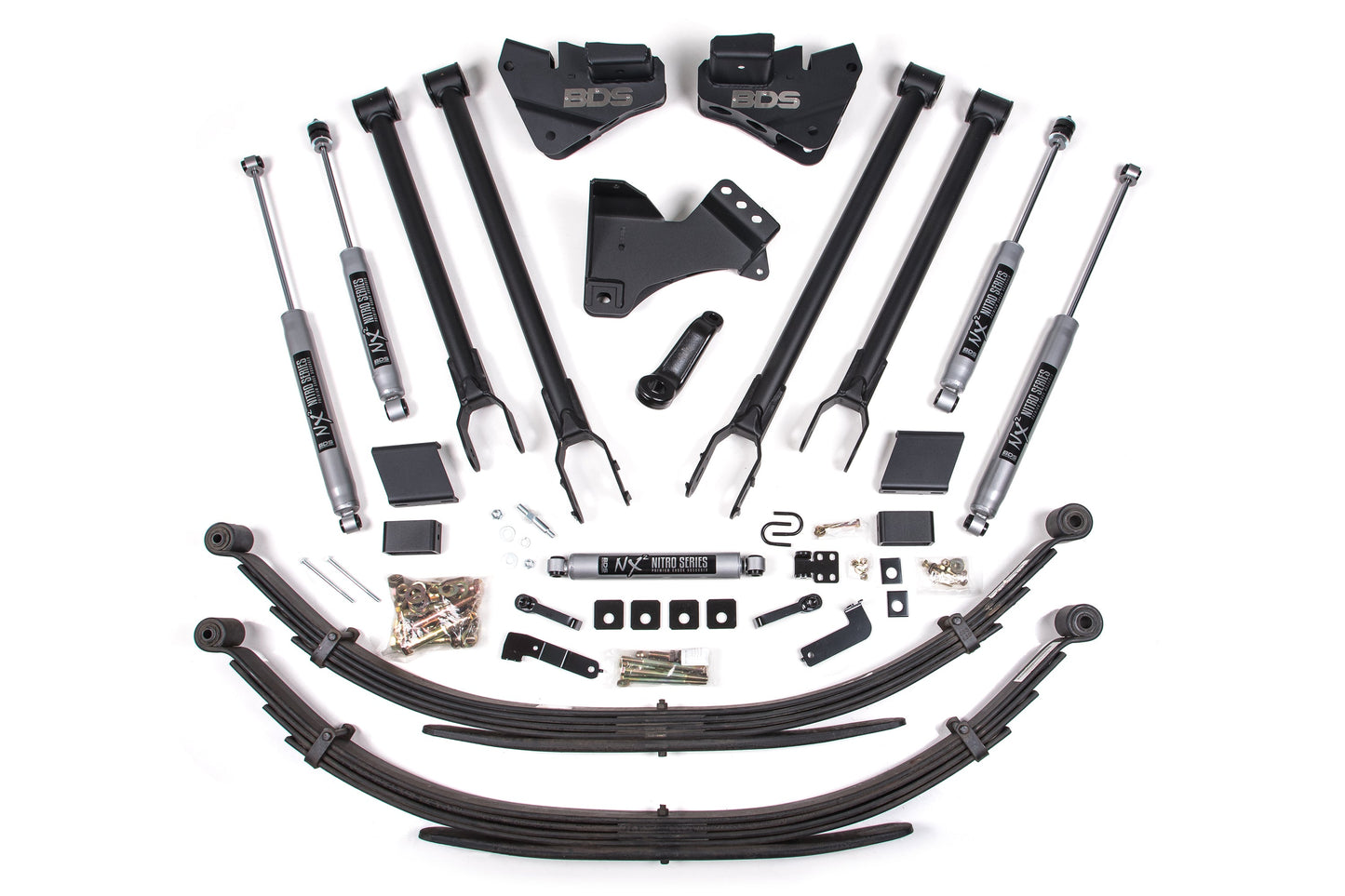

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

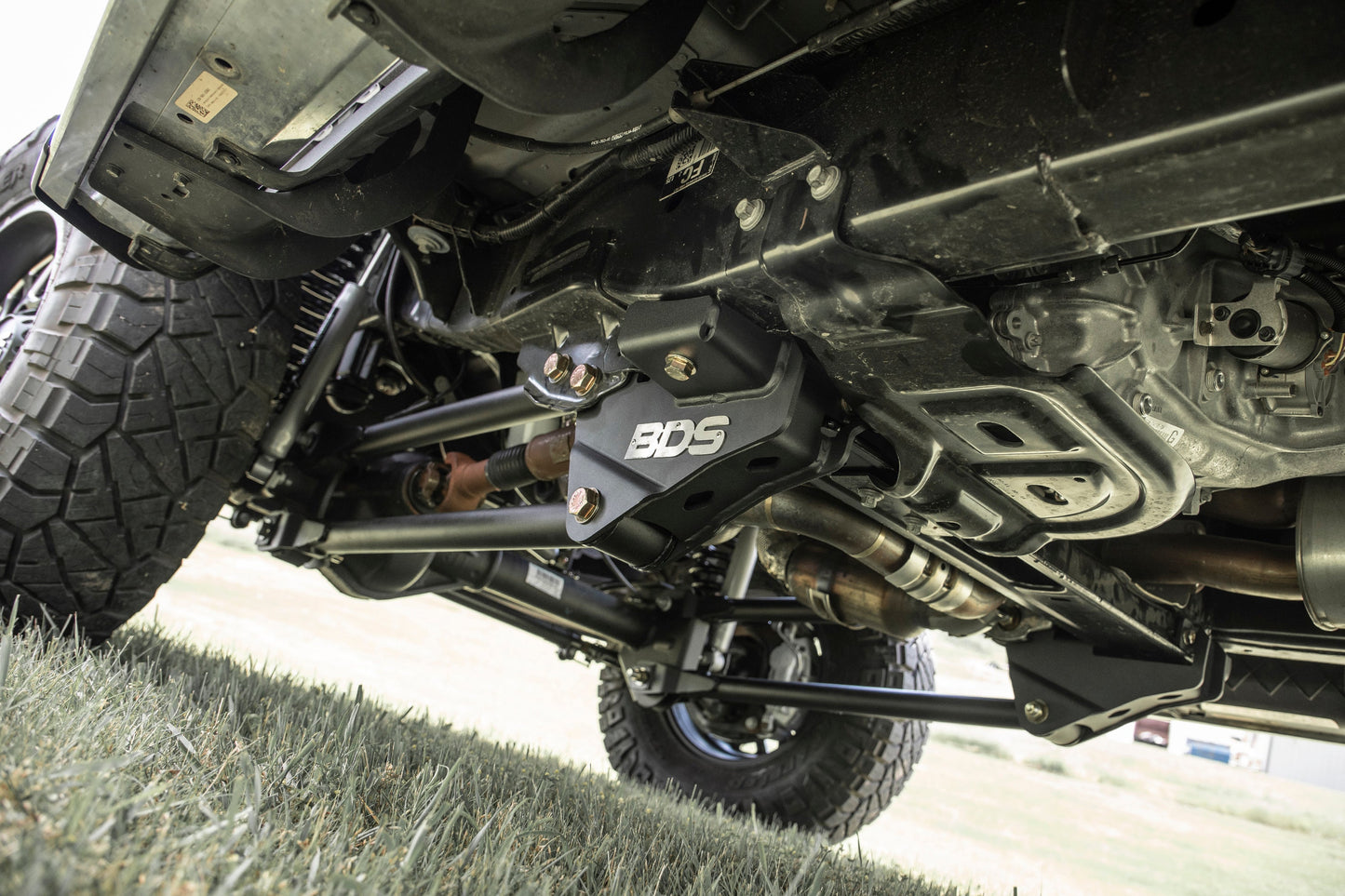

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control

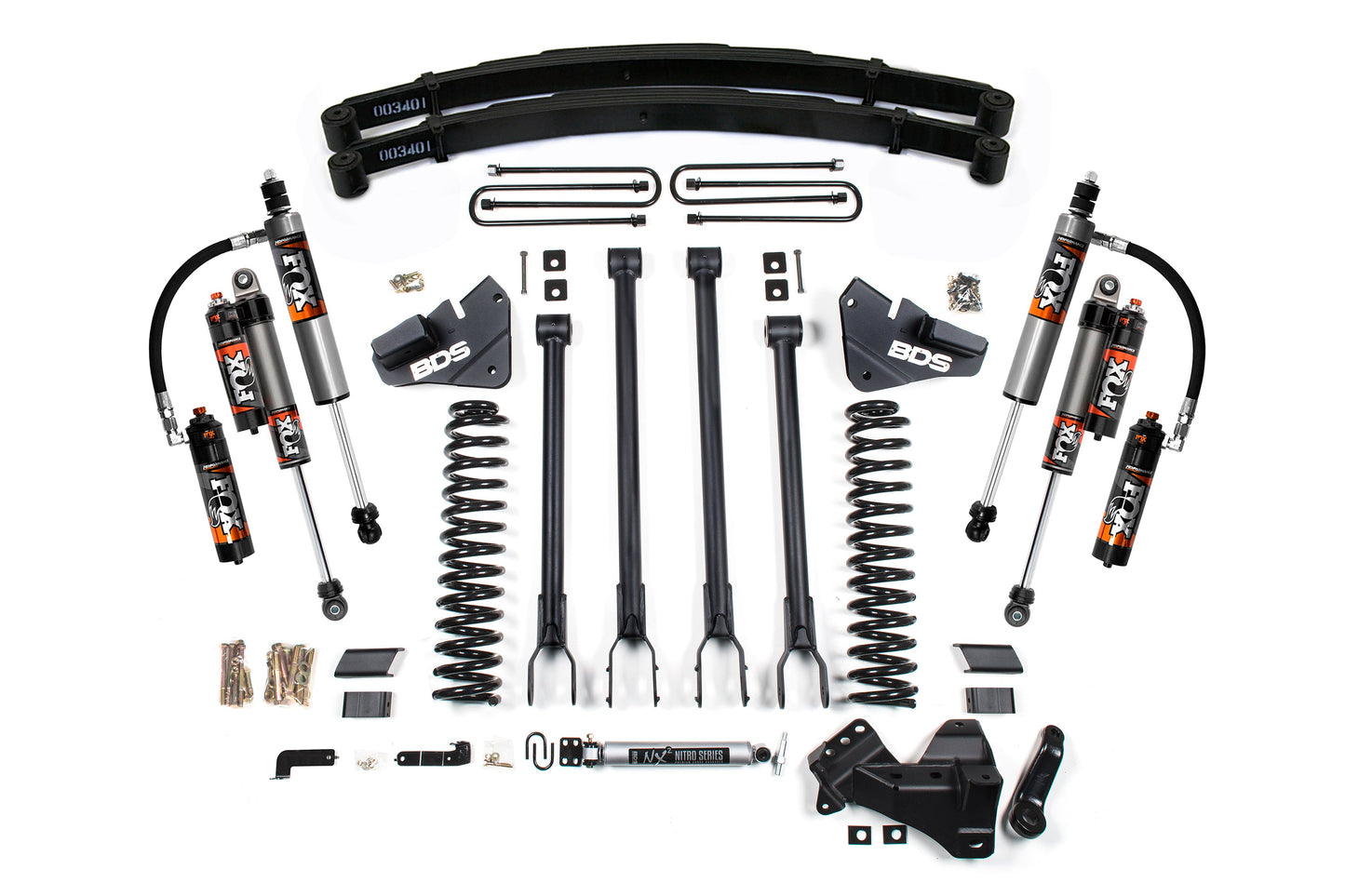

- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace.
- 37 x 12.5 with 18 x 9 and 5 in. Backspace.
- 37 x 12.5 with 20 x 9 and 5 in. Backspace.
| Qty | Item |
|---|---|
| 1 | BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 |
| 1 | BDS013459 - 2020-2022 F250/F350 4.5" Rear Block Kit |
| 1 | BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 |
| 1 | BDS033411 - 2005-2024 Ford F250/F350 Superduty 4" Coil Kit - Diesel |
| 1 | BDS85431 - 2017-2024 F250/F350 Single Stabilizer |
| 2 | FOX98224700 - Fox 2.0 Shock 25.65 |
| 2 | FOX98224718 - Fox 2.0 Shock 33.85 |
