BDS 5 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (20-22) 4WD | Gas
$2,631.55

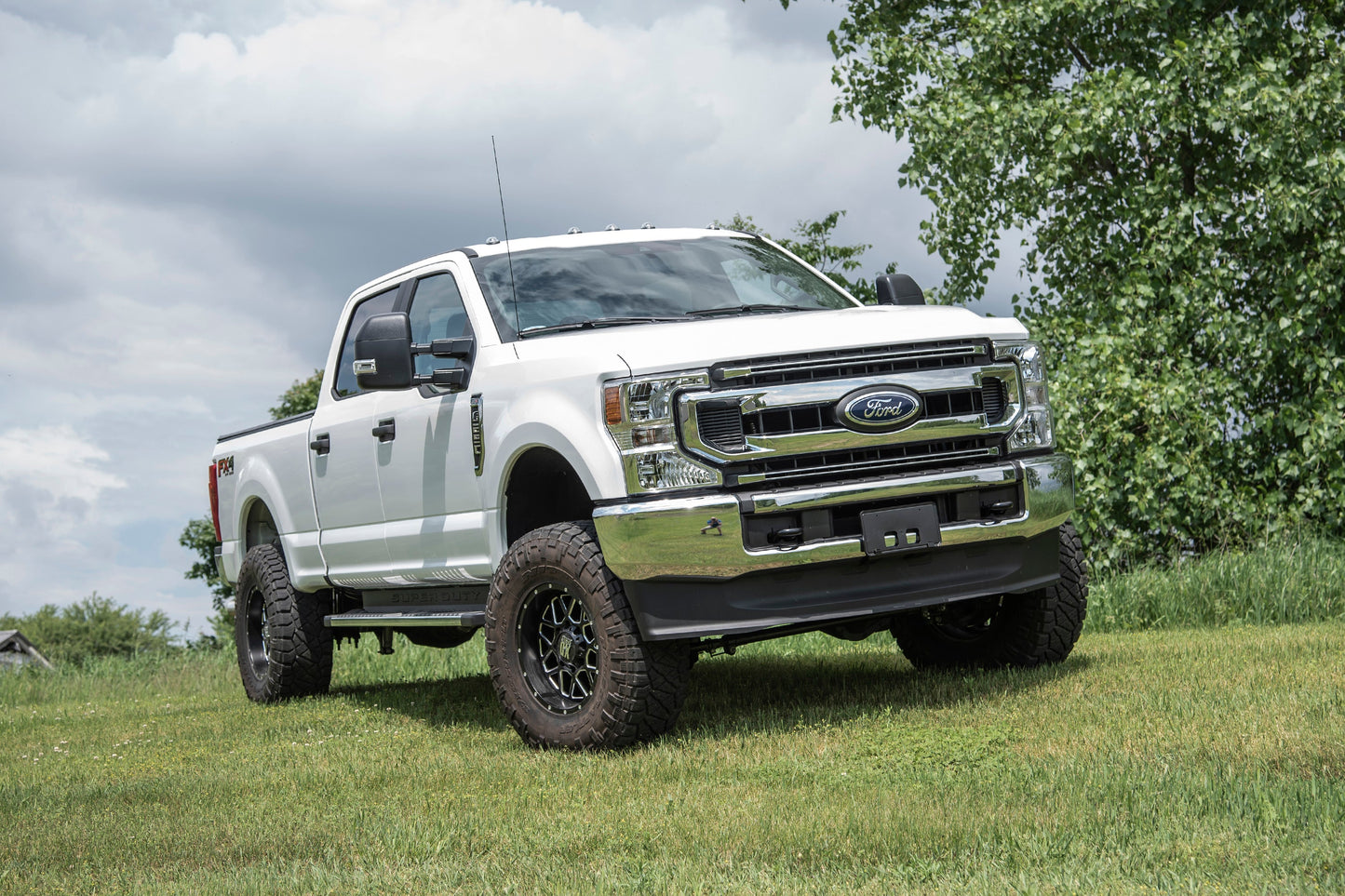

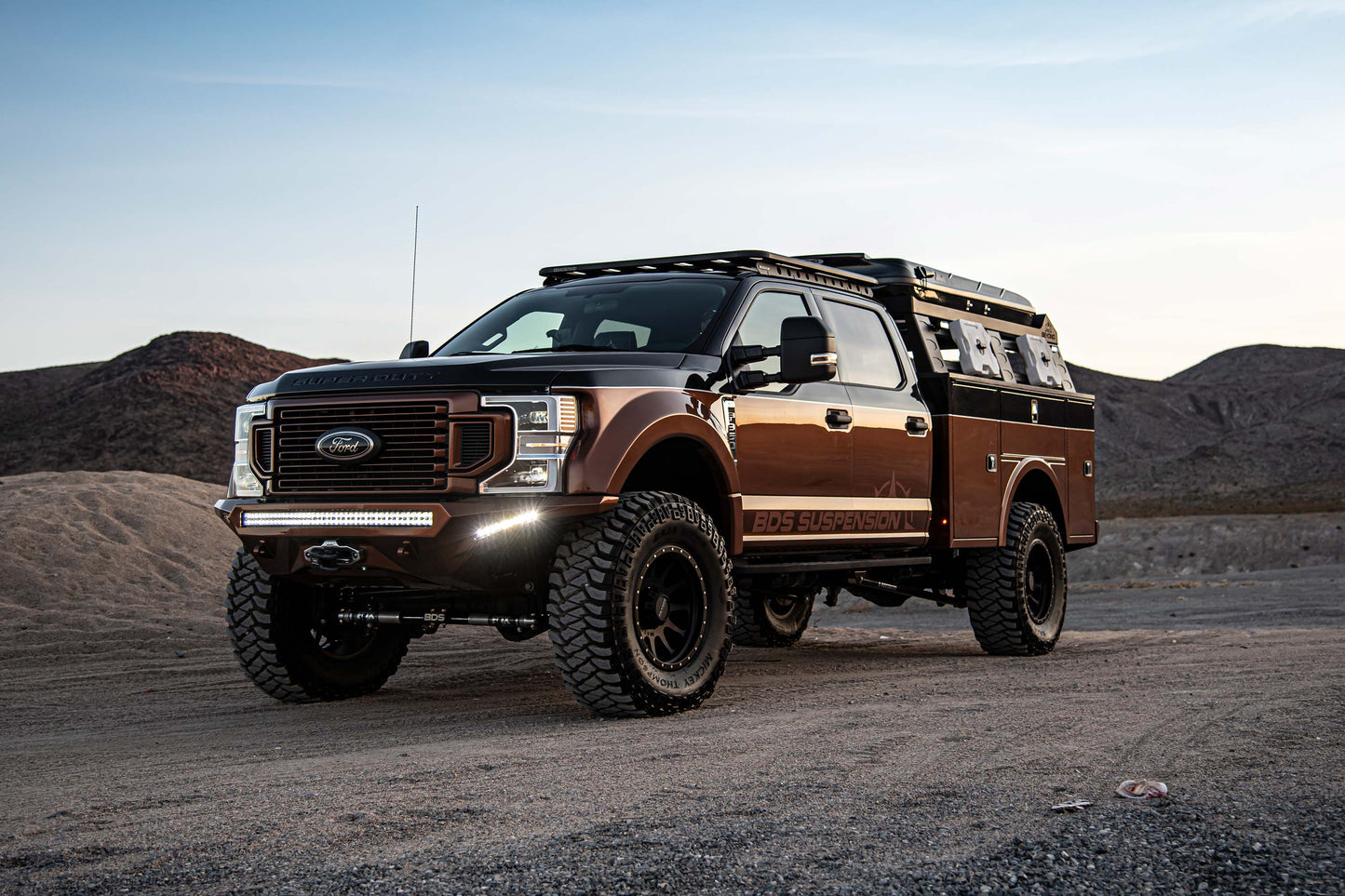

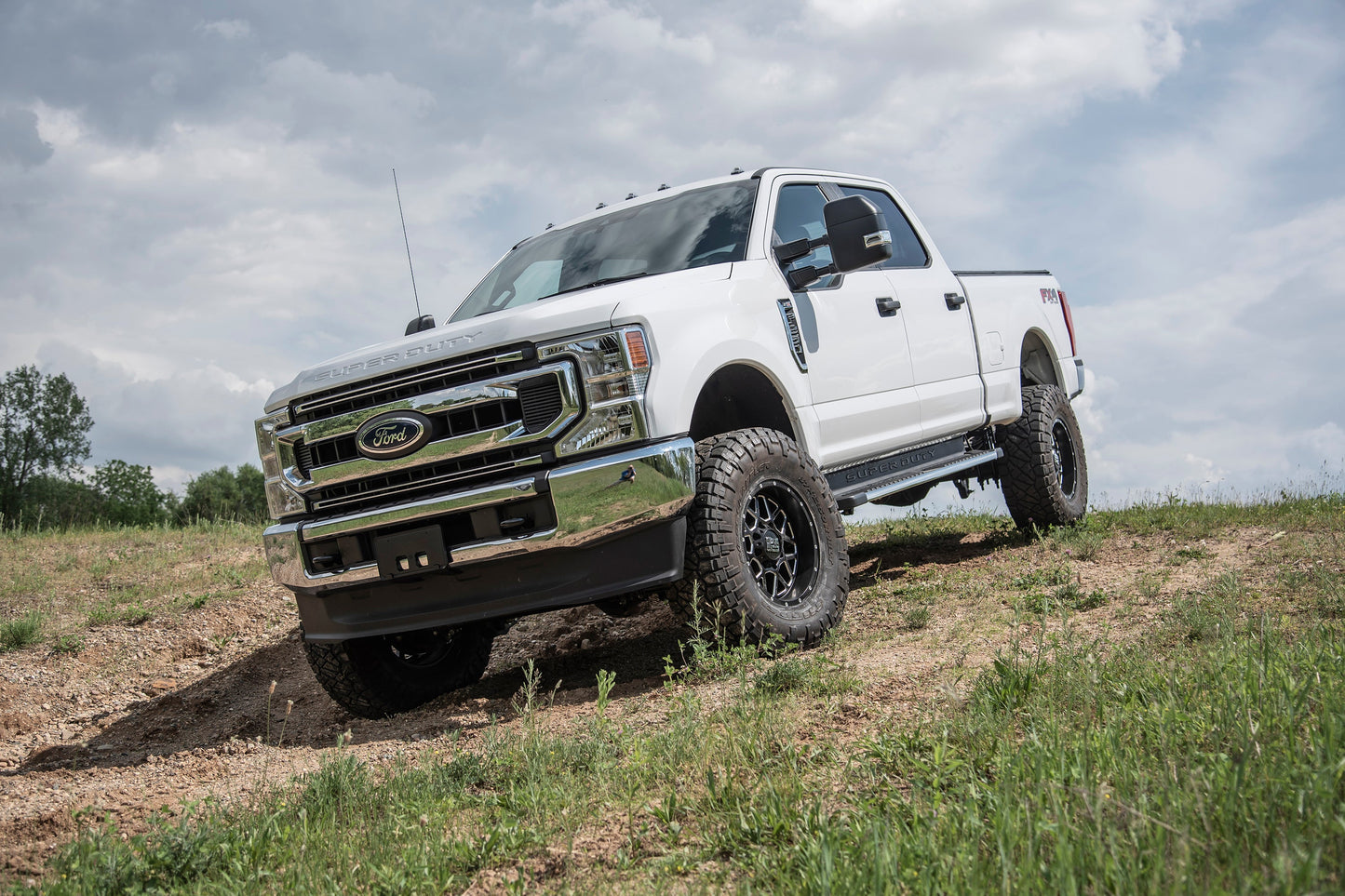

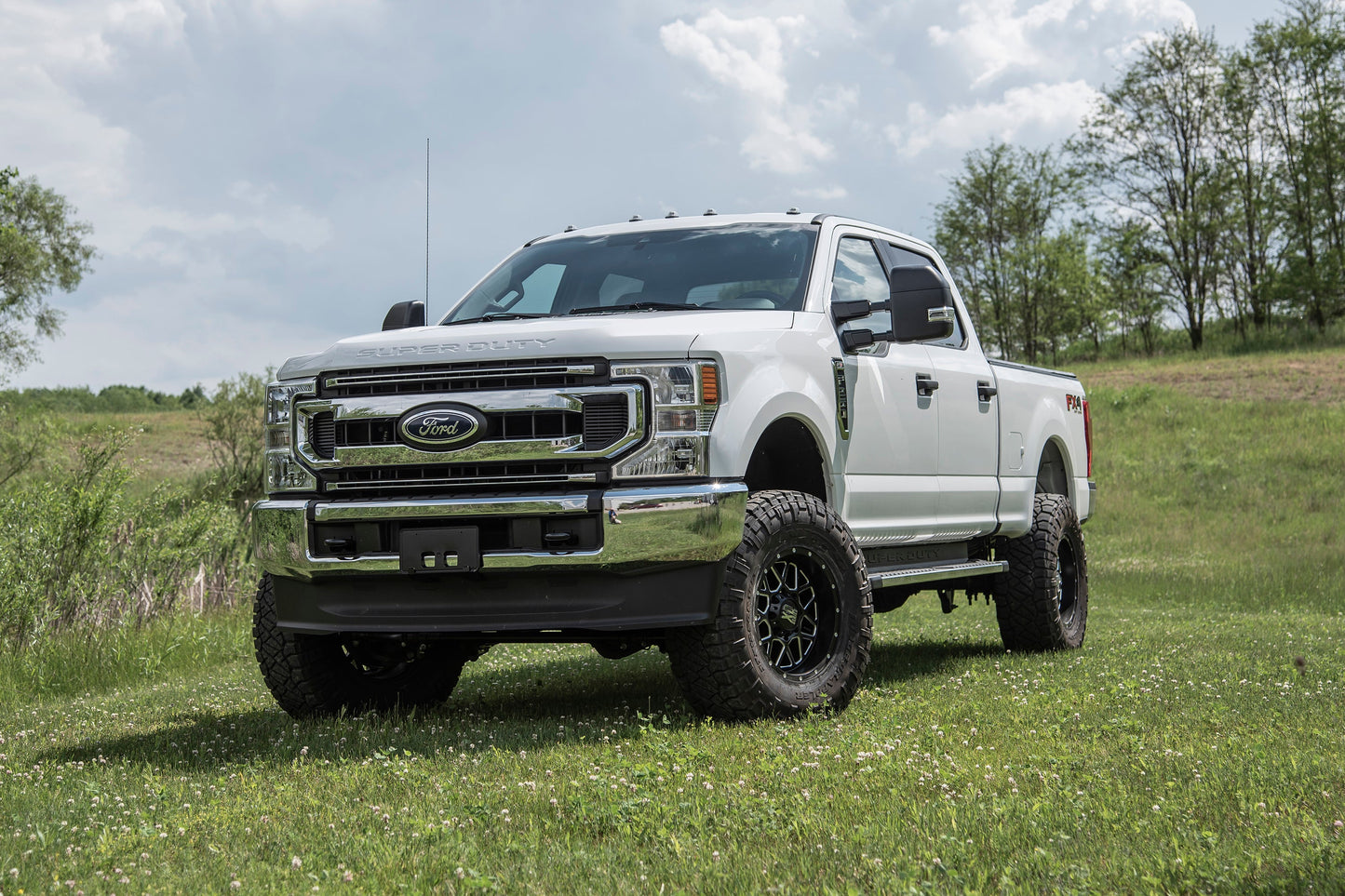

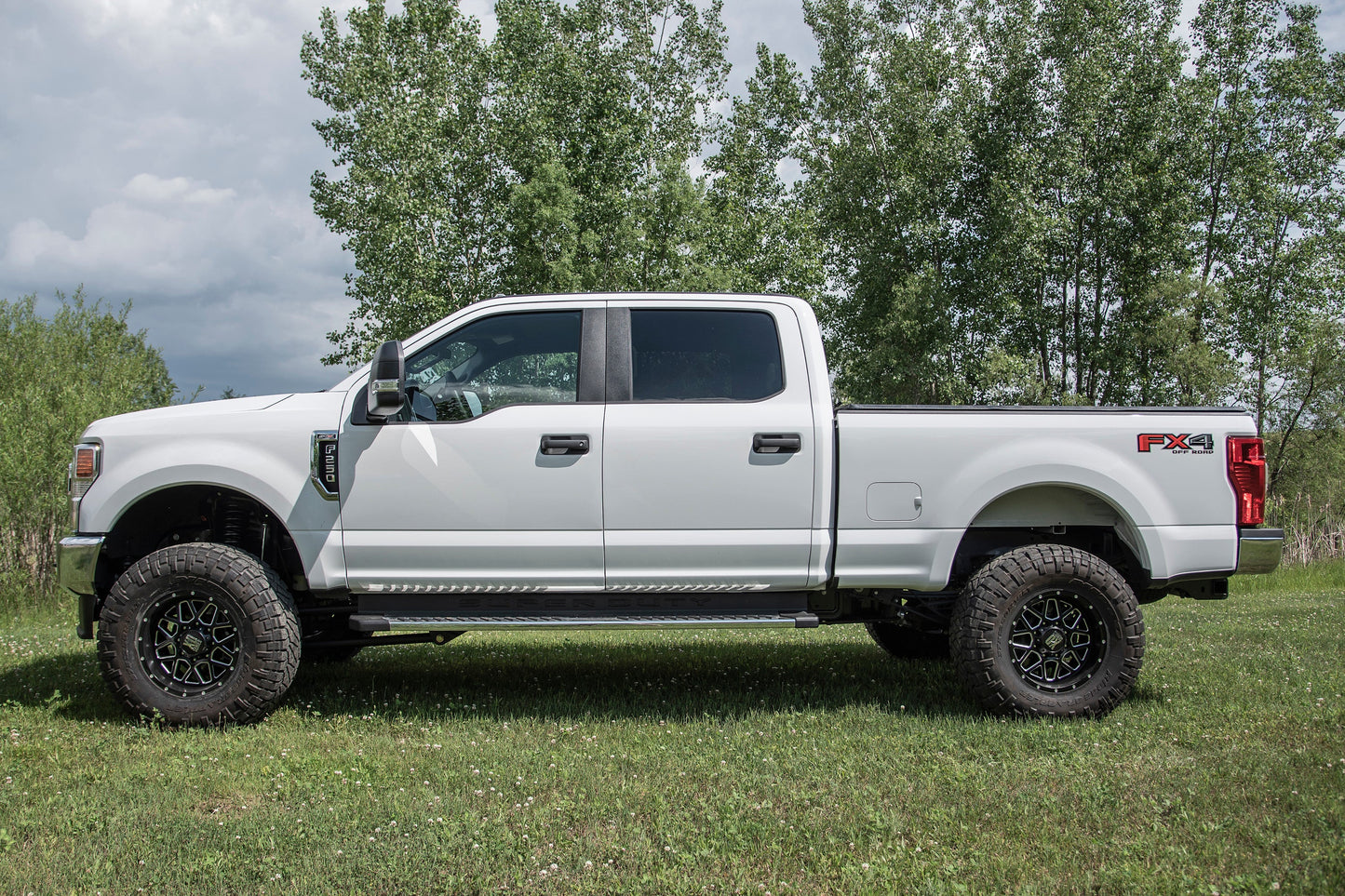

Raise the height of your Ford Super Duty gas powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

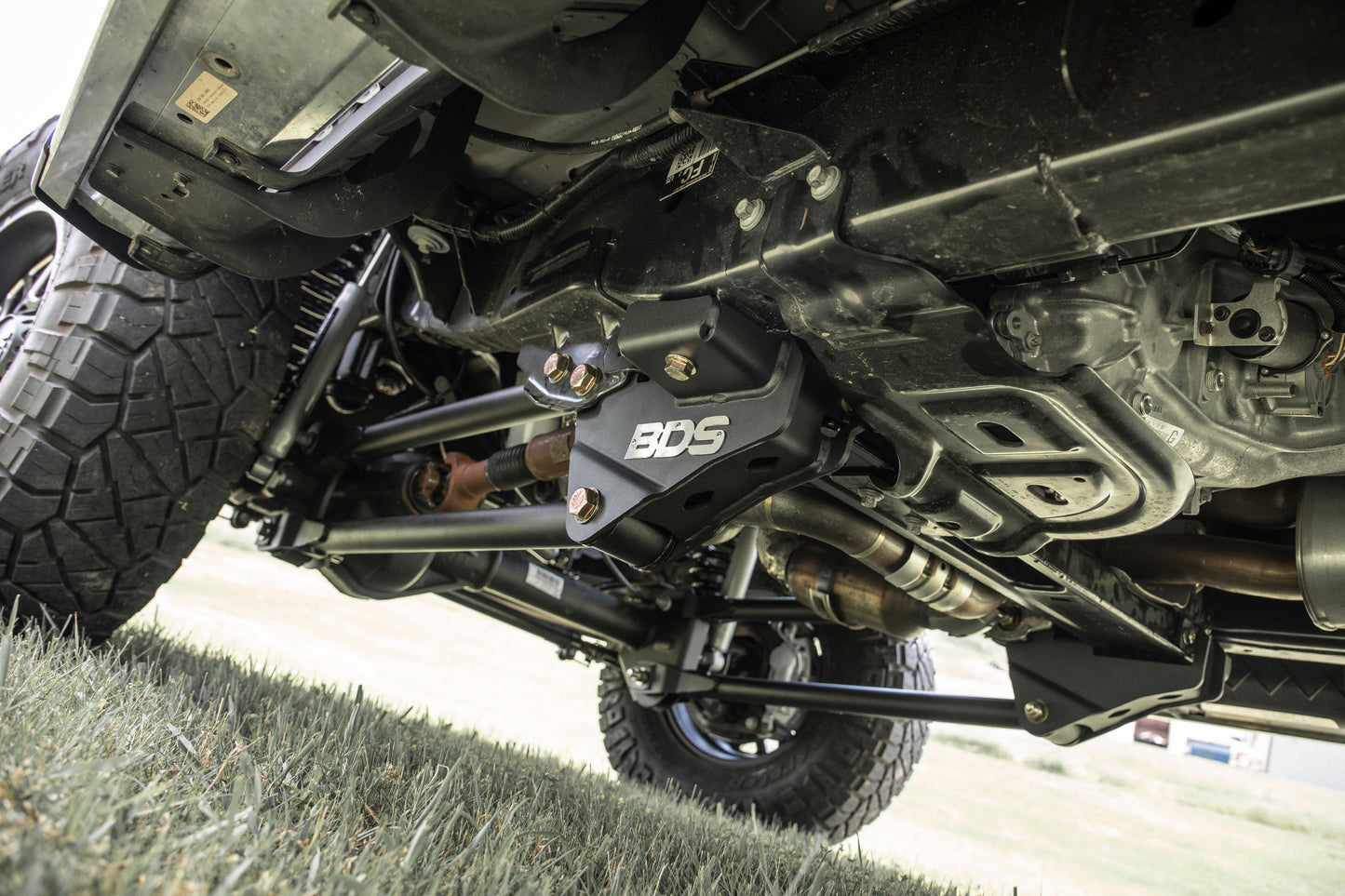

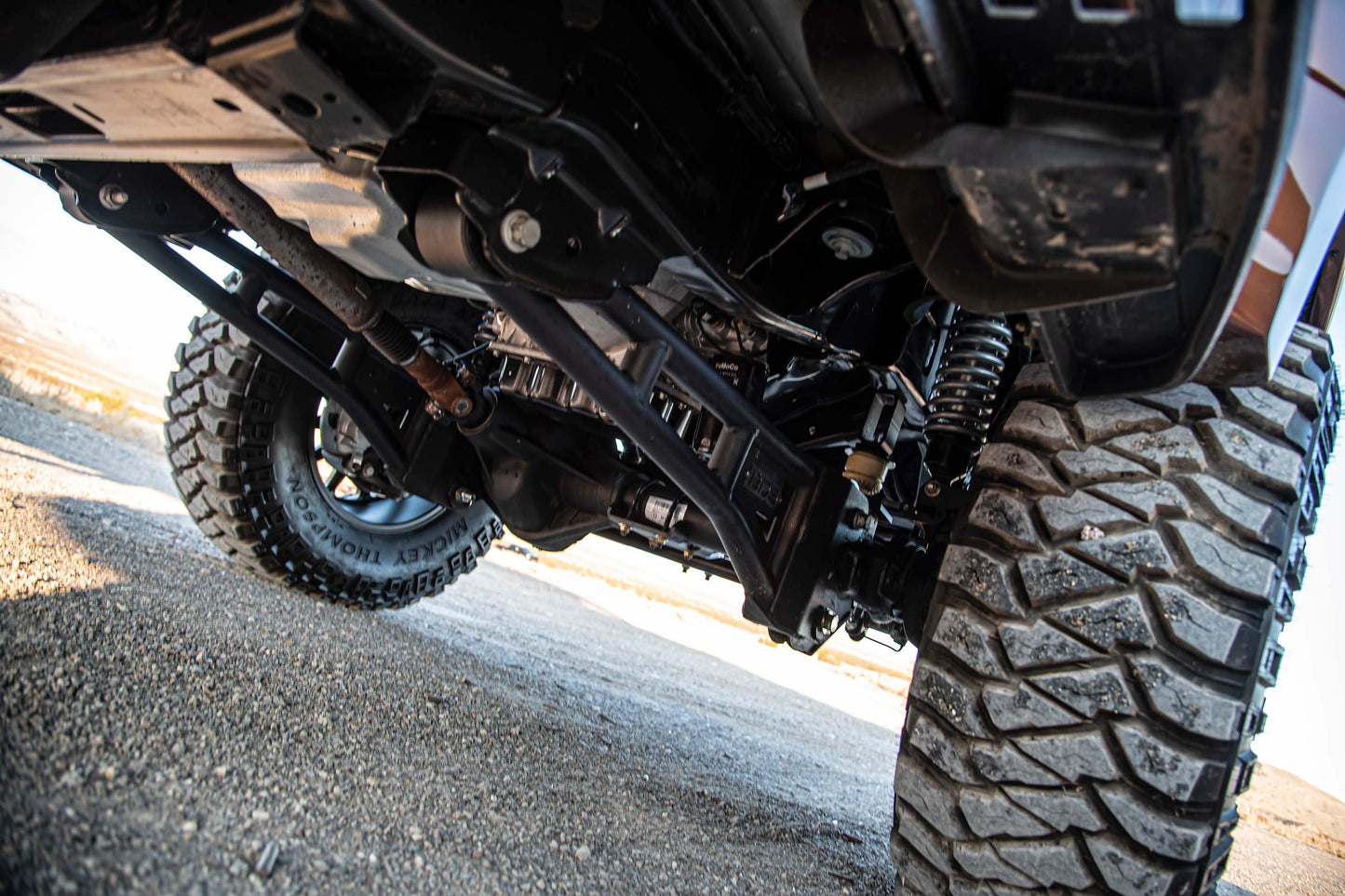

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace.
- 37 x 12.5 with 18 x 9 and 5 in. Backspace.
- 37 x 12.5 with 20 x 9 and 5 in. Backspace.
Read More
Read Less
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013459 - 2020-2022 F250/F350 4.5" Rear Block Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Warranty
We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy
Returns
ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition.
Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;)
We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy
-
- Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE
-
- Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE
-
- Price Matching for Products You Have Already Purchased
-
- Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.
For Fast Products*
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.
For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.
For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
YES, If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of sale for a hassle-free refund of the amount paid for the product. Refunds do not include shipping costs. We only specify that you have the original packaging, the product not be installed, damaged, missing components or manufacturer's documentation.
We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy
Click here for our Full Warranty Policy
You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.
If you wish to cancel your order please contact us ASAP at (786) 798-6597 or through live chat. We will make our best effort to cancel the order
We are committed to keeping your personal information private and safe. We use encrypted secure communications in our checkout.
For additional details, please read our complete Privacy Policy
Description
Raise the height of your Ford Super Duty gas powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace.
- 37 x 12.5 with 18 x 9 and 5 in. Backspace.
- 37 x 12.5 with 20 x 9 and 5 in. Backspace.
Read More
Read Less
Important Notes
- Ford recommends the replacement of the pitman arm nut after each time it has been removed.
- If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
- Front exhaust modification may be required to clear the front drive shaft (Gas Only).
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
Fitment

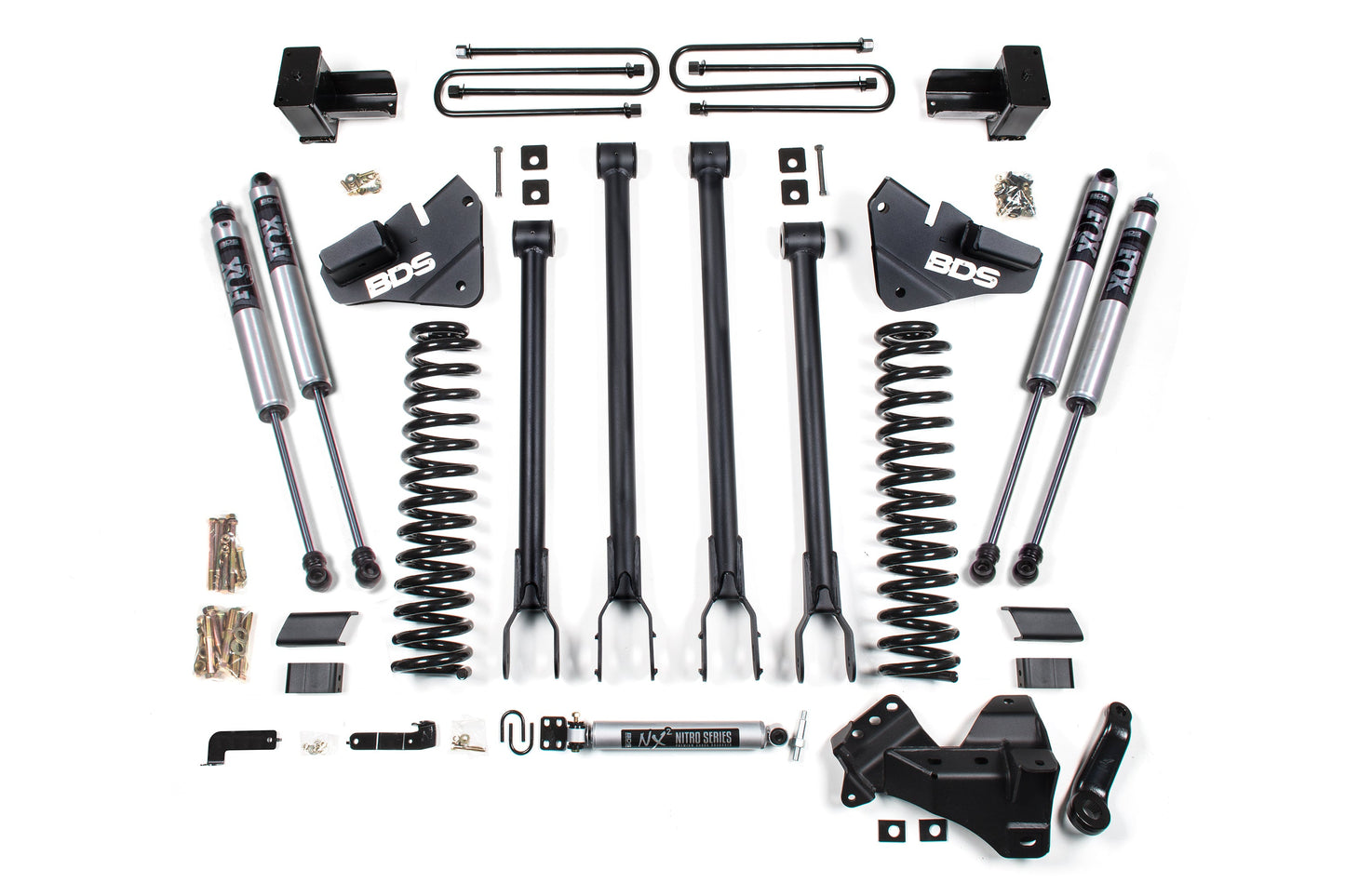

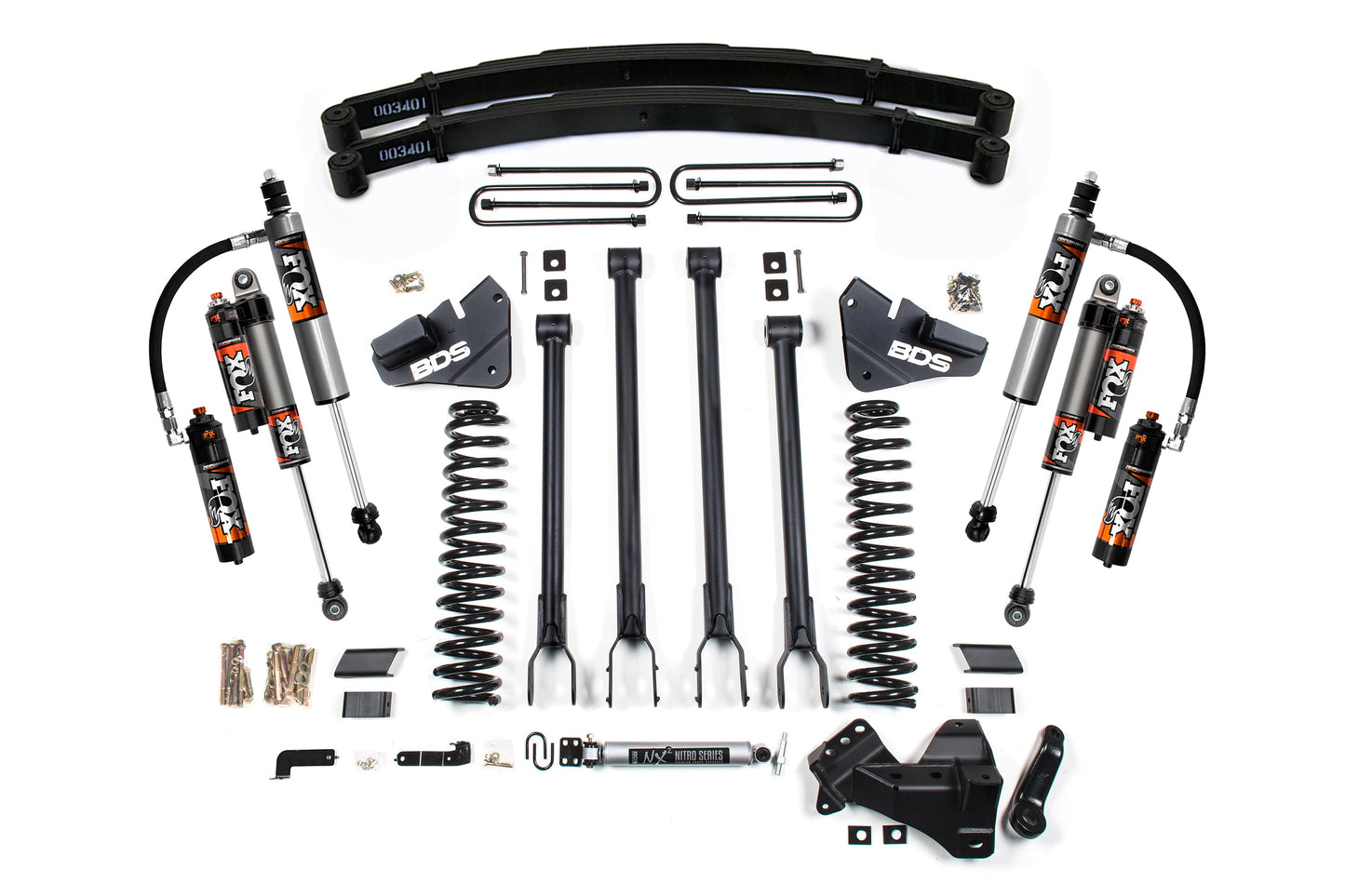

Set Includes (In the Box)
Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013459 - 2020-2022 F250/F350 4.5" Rear Block Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |

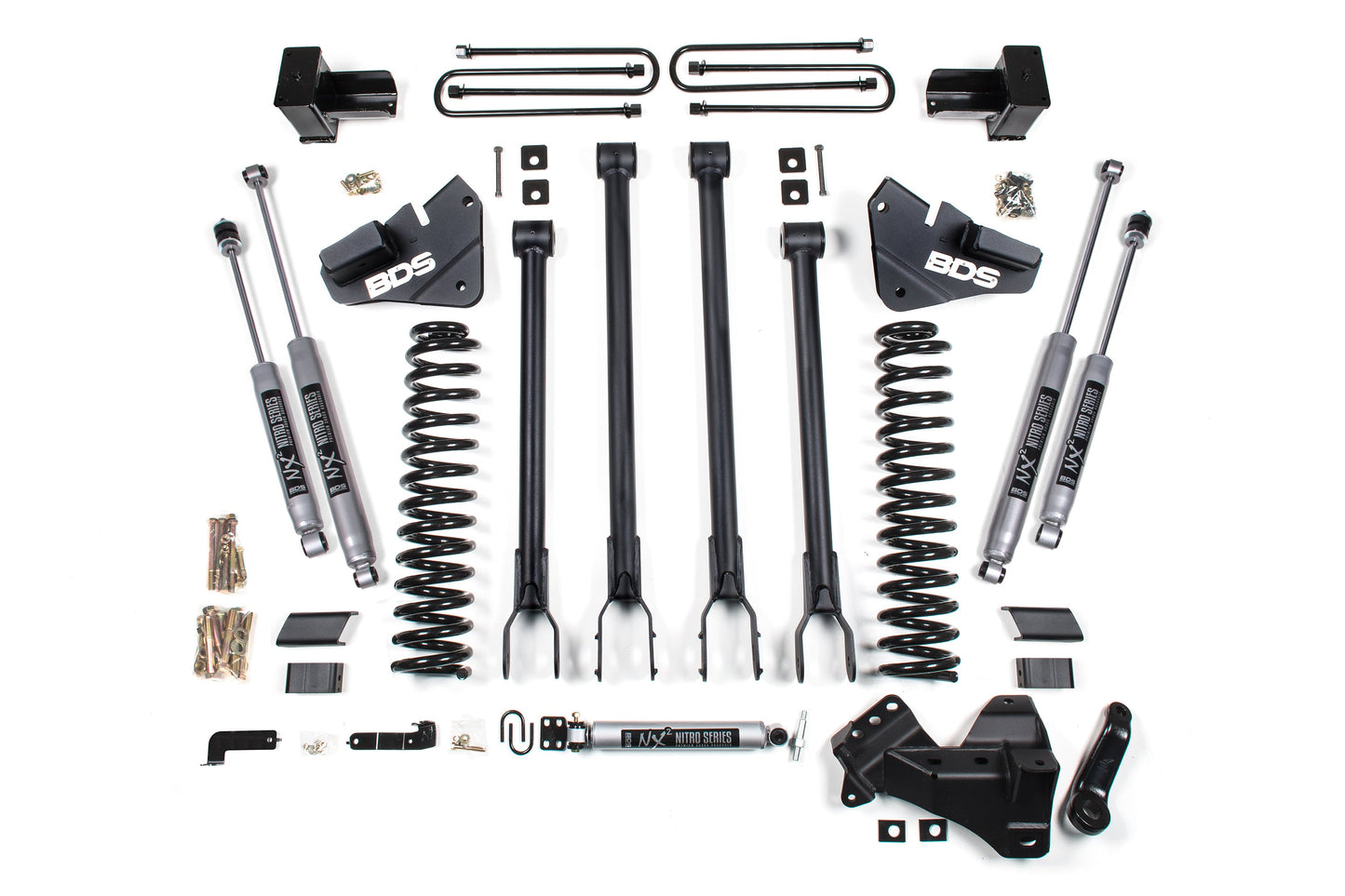

Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013459 - 2020-2022 F250/F350 4.5" Rear Block Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
BDS85700 - Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 | 2 |
BDS85718 - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 | 2 |

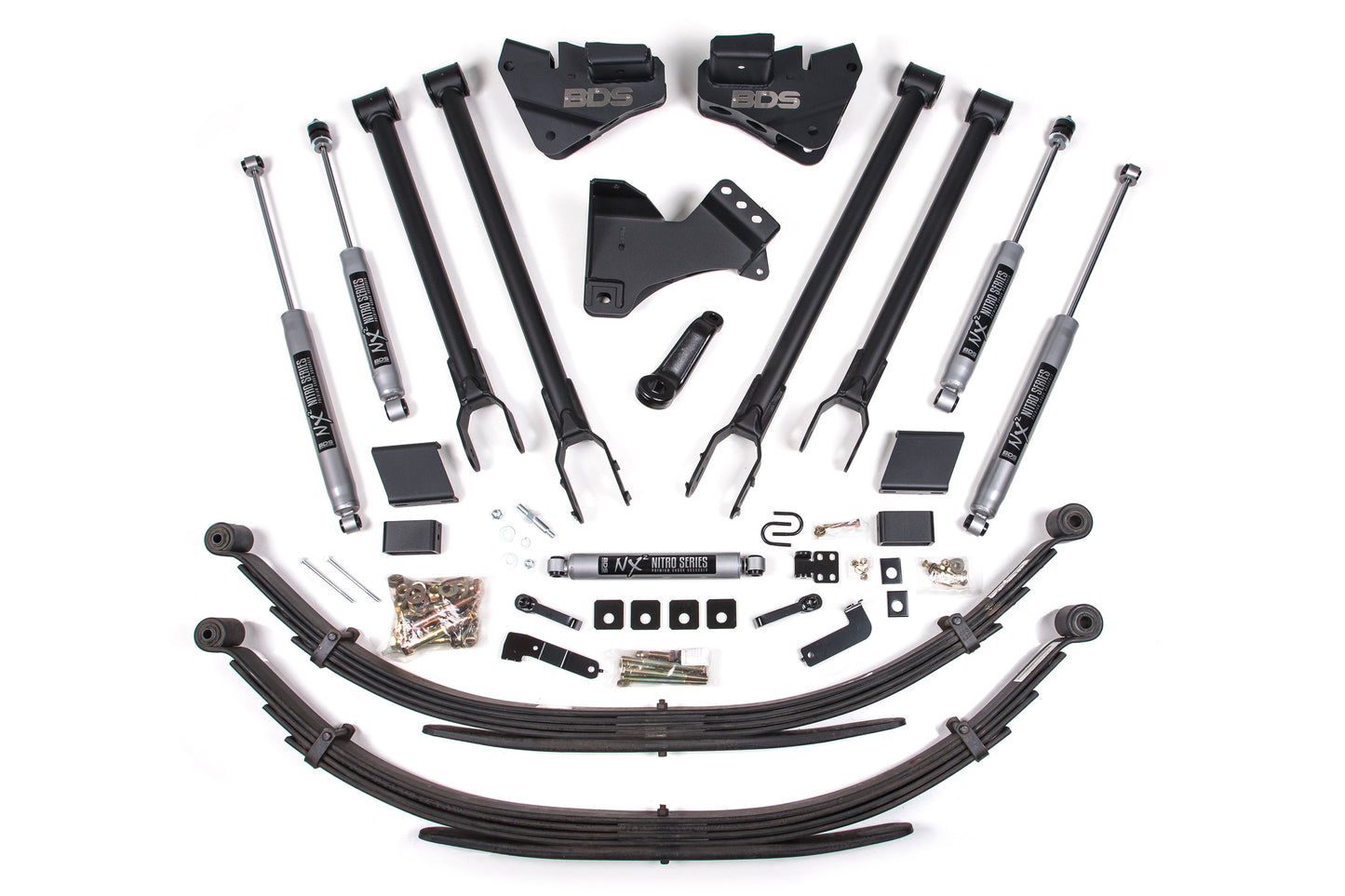

Item | Qty |
BDS003639 - 2017-2024 Super Duty 6" Rear Leaf Spring | 2 |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013438 - 2017-2024 Ford F250/F350 4" Rear Leaf Spring Box Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 | 2 |
FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 | 2 |
Item | Qty |
BDS003639 - 2017-2024 Super Duty 6" Rear Leaf Spring | 2 |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013438 - 2017-2024 Ford F250/F350 4" Rear Leaf Spring Box Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
BDS85700 - Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 | 2 |
BDS85718 - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 | 2 |

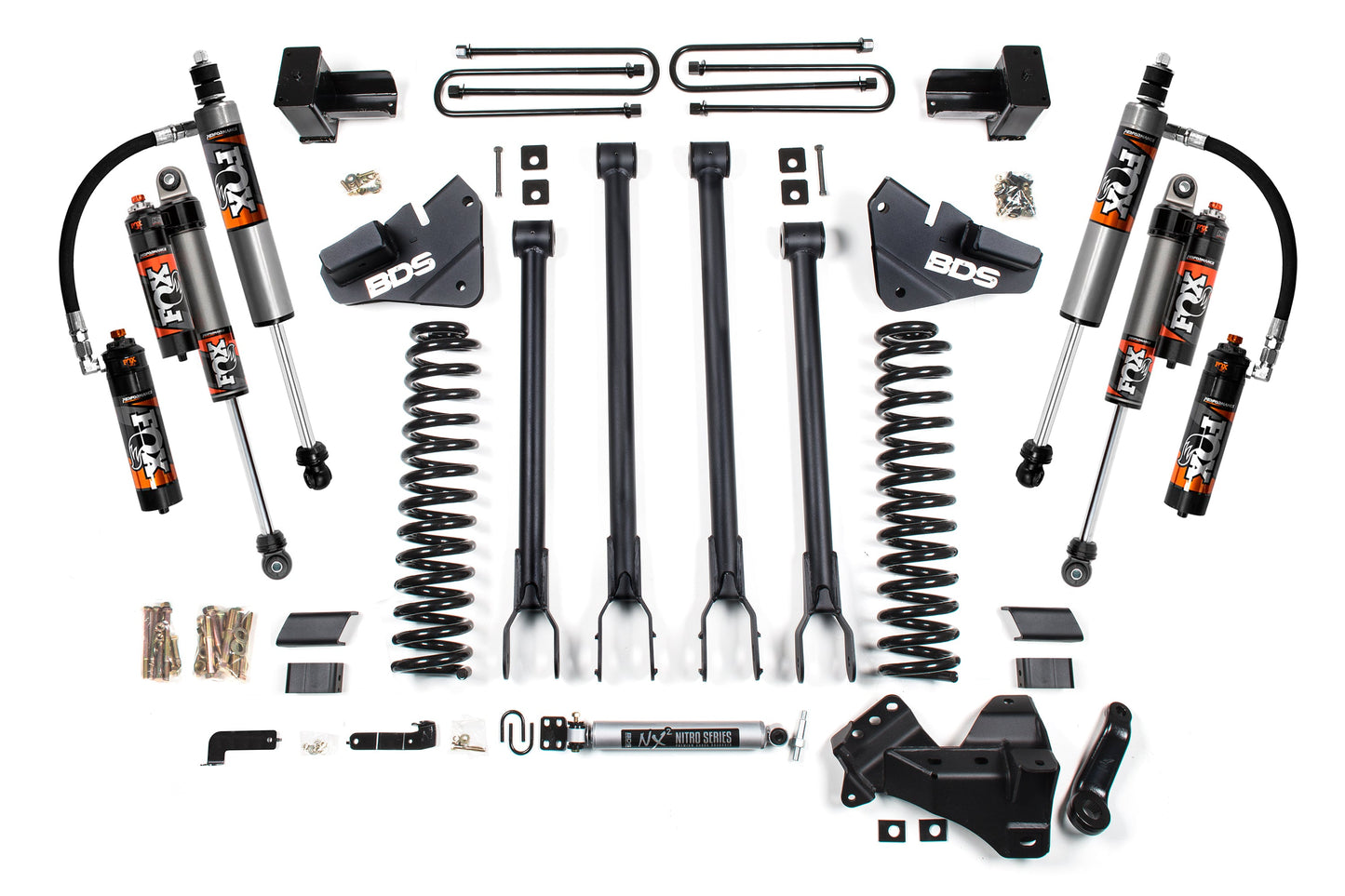

Item | Qty |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013459 - 2020-2022 F250/F350 4.5" Rear Block Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88326098 - Kit: 2017-2023 Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC | 1 |
Item | Qty |
BDS003639 - 2017-2024 Super Duty 6" Rear Leaf Spring | 2 |
BDS013423 - 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2 | 1 |
BDS013438 - 2017-2024 Ford F250/F350 4" Rear Leaf Spring Box Kit | 1 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS033412 - 2005-2024 Ford F250/F350 Gas 4" Coil Spring Kit | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX88326097 - Kit: 2017-2024 Ford SD Front, 2.5 Truck PES, R/R, 2-3.5" Lift, DSC | 1 |
FOX88326098 - Kit: 2017-2023 Ford SD Rear, 2.5 Truck PES, P/B, 2-3.5" Lift, DSC | 1 |
