BDS 6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
Starting at
/mo
with
i
Select Rear Setup
Shock Option

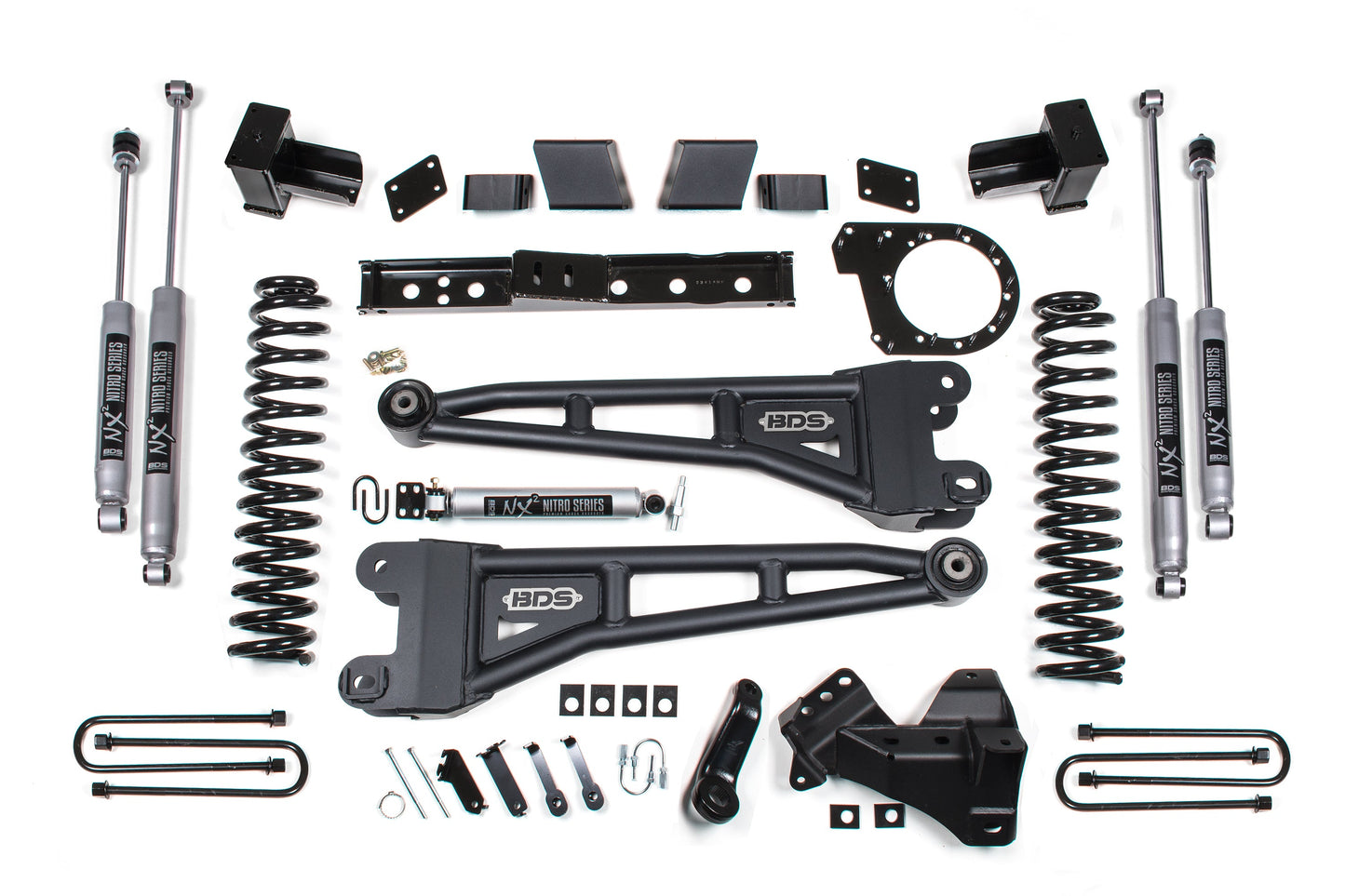

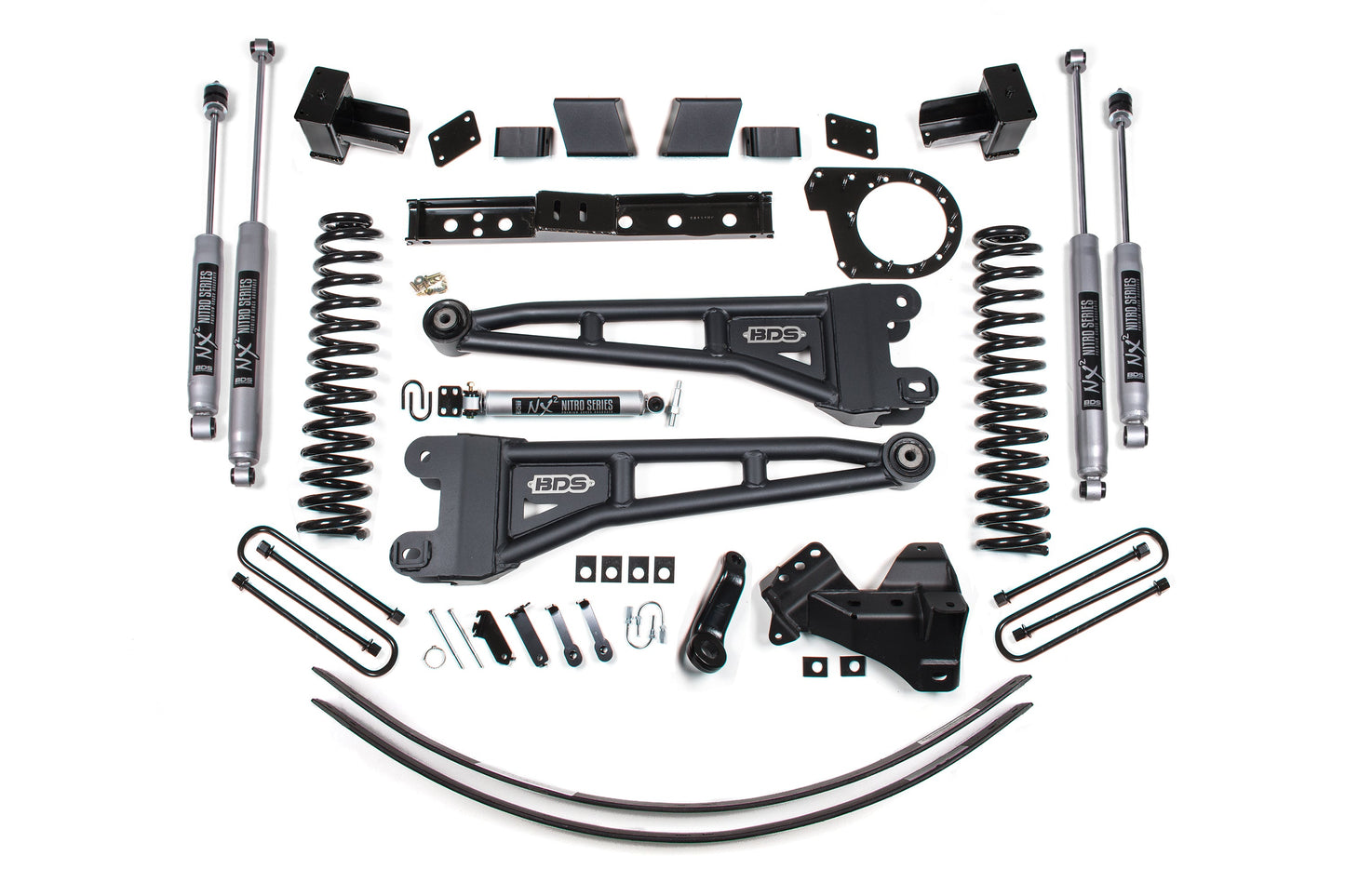

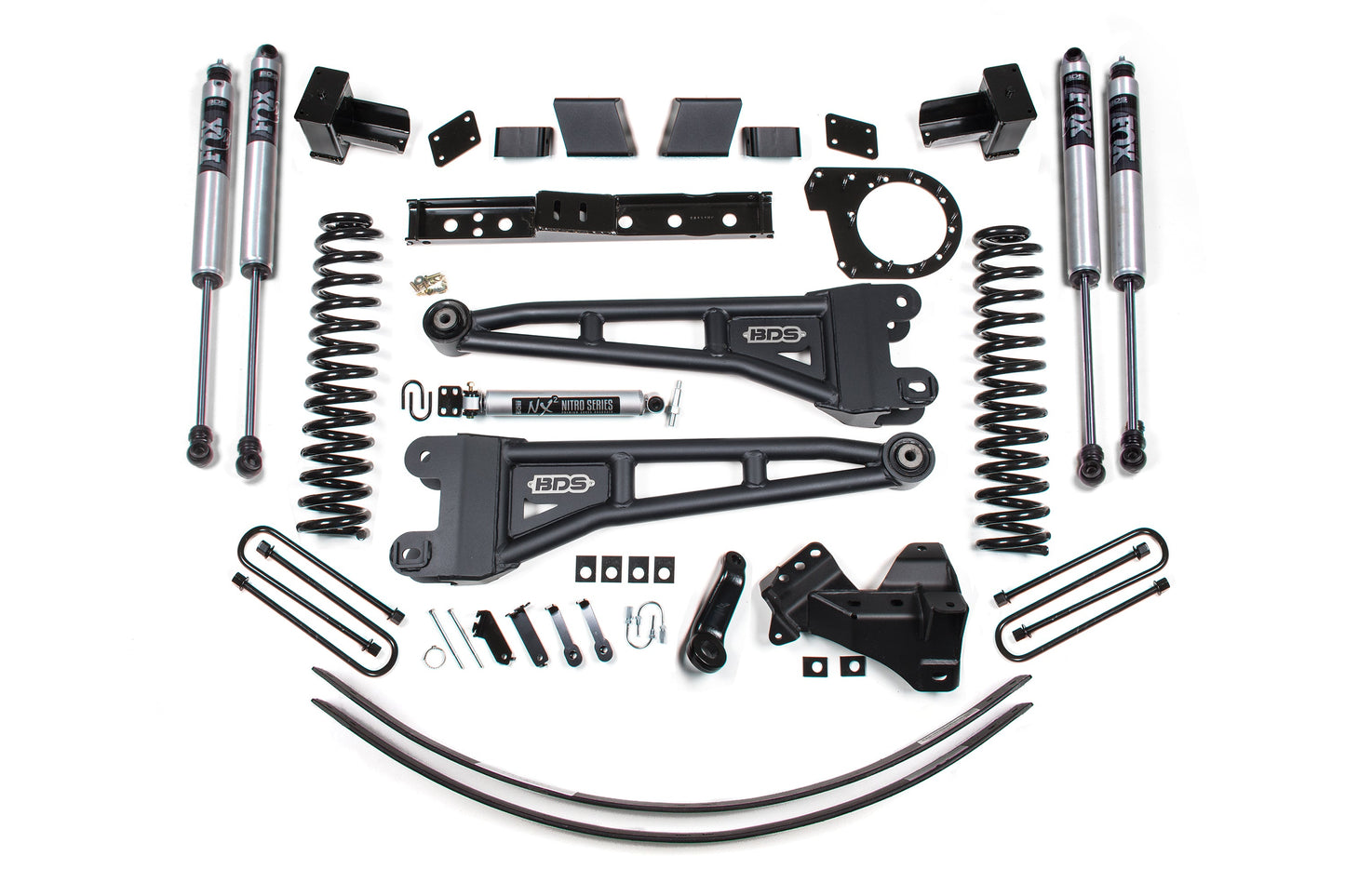

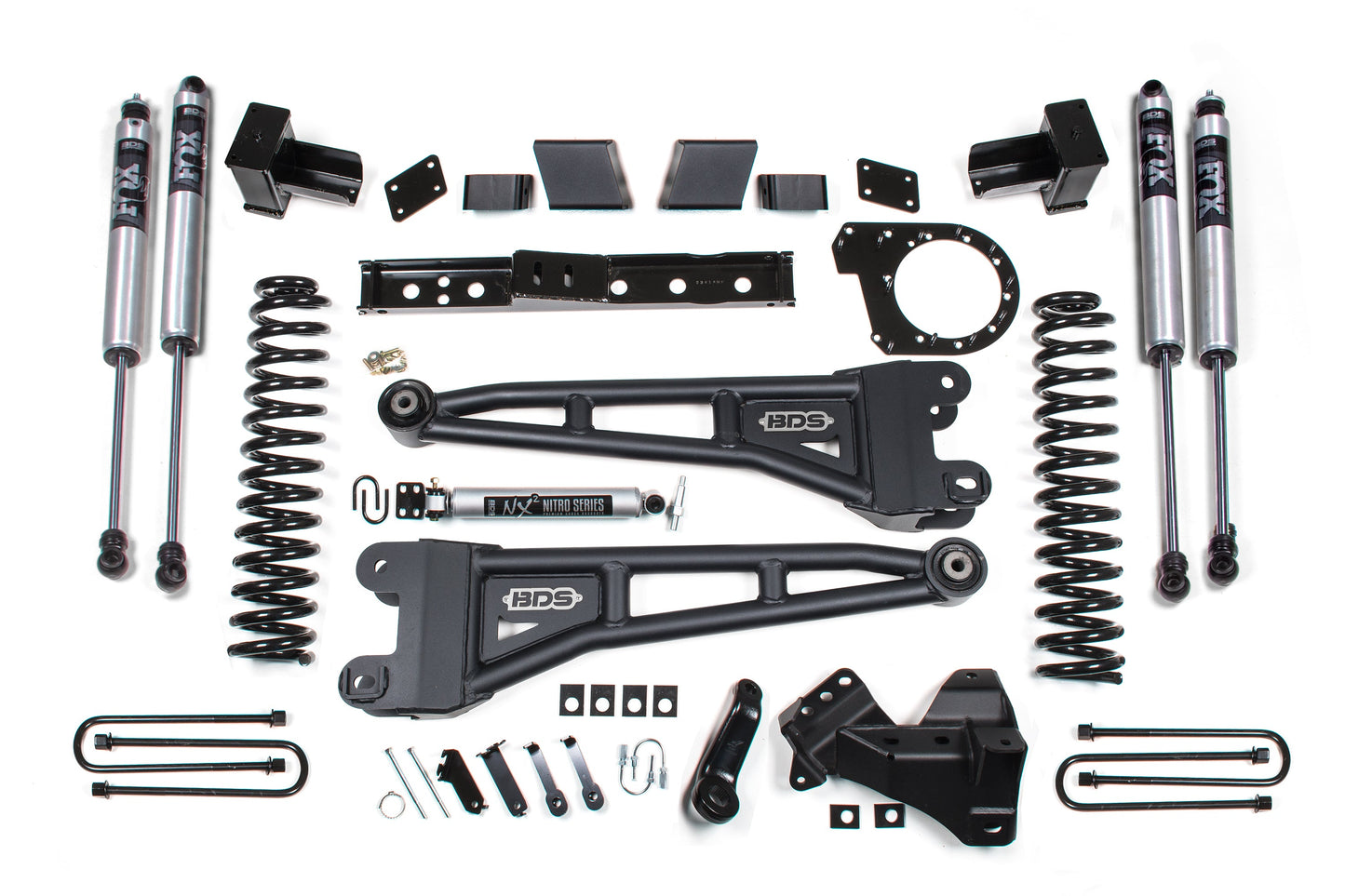

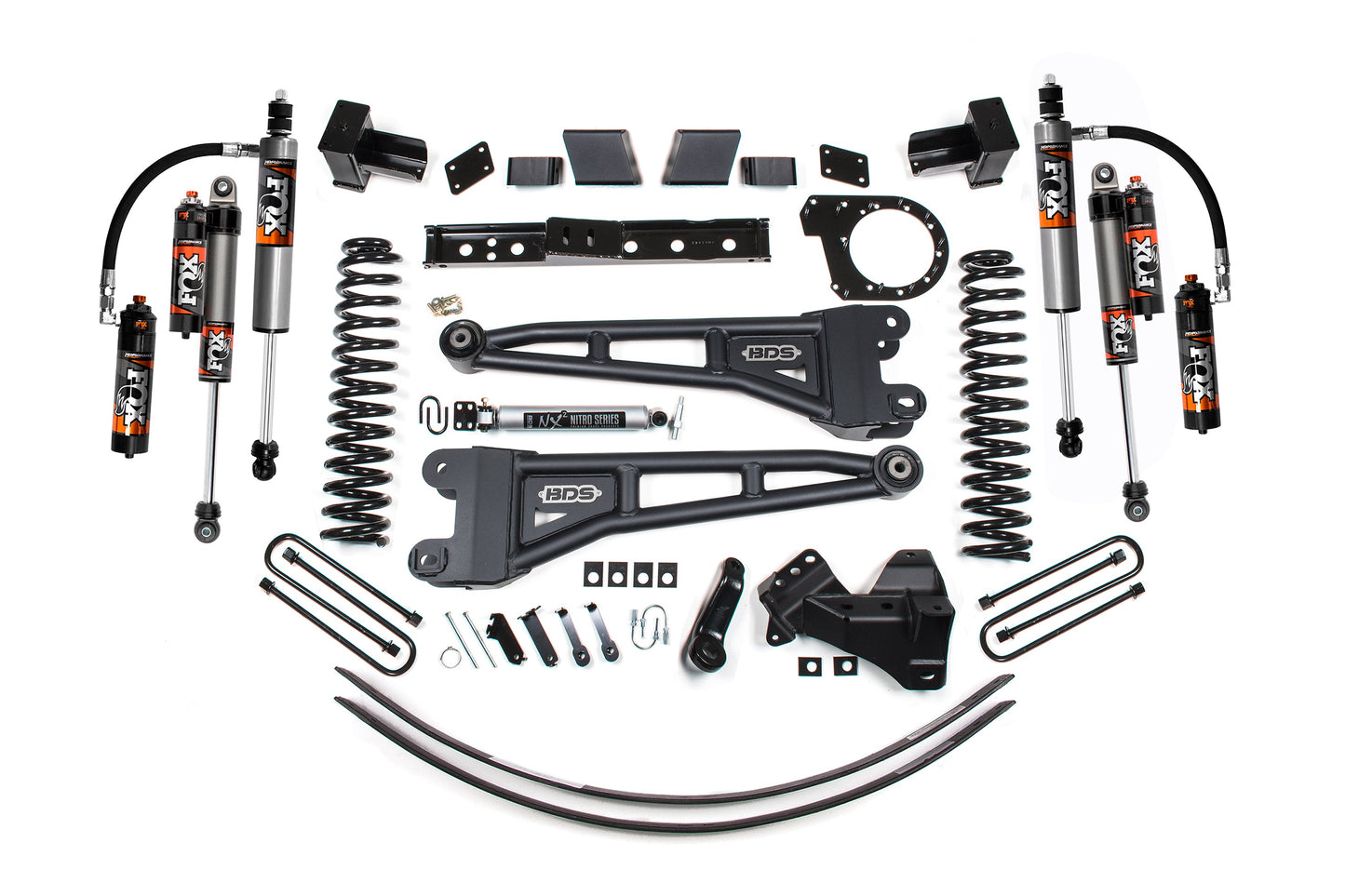

Take your 2017-2019 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 6 hrs
- Difficulty Level: Moderate
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 38 x 13.5 with 17 x 9 and 5 in. Backspace.
- 38 x 13.5 with 18 x 9 and 5 in. Backspace.
- 38 x 13.5 with 20 x 10 and 5 in. Backspace.
| Qty | Item |
|---|---|
| 1 | BDS013219 - 2017-2019 Ford Super Duty - Add-A-Leaf Kit |
| 1 | BDS013603 - 2020-2022 F250/F350 6" RA Front Box Suspension System |
| 1 | BDS013607 - 2017-2019 Super Duty Rear 6" Block Kit |
| 1 | BDS033611 - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit |
| 1 | BDS123251 - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair |
| 1 | BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL |
| 1 | BDS85431 - 2017-2024 F250/F350 Single Stabilizer |
| 2 | FOX98224718 - Fox 2.0 Shock 33.85 |
| 2 | FOX98224750 - Fox 2.0 Shock 28.25 |
