- BDS 8 Inch Lift Kit | 4-Link Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
Up the ante of your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 8-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 38 x 13.5 with 17 x 10 and 5 in. Backspace.
- 40 x 13.5 with 17 x 10 and 5 in. Backspace.
Item | Qty |
BDS003839 - 2017 F250/F350 8" Rear Leaf Spring | 2 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS013801 - 2017 Super Duty 8" Front Box Kit | 1 |
BDS013809 - 2017 Super Duty 8" Rear Box Kit | 1 |
BDS033811 - 05 Ford F250 SD Dsl 8in Coil Kit | 1 |
BDS123615 - 2017 Super Duty T-Case Index - 8in Dsl | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX98224721 - Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1 | 2 |
FOX98224779 - Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1 | 2 |
Warranty
We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy
Returns
ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition.
Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;)
We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy
-
- Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE
-
- Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE
-
- Price Matching for Products You Have Already Purchased
-
- Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.
For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
Click here for our Full Warranty Policy
You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.
For additional details, please read our complete Privacy Policy
Description
Up the ante of your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 8-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 8-10 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 38 x 13.5 with 17 x 10 and 5 in. Backspace.
- 40 x 13.5 with 17 x 10 and 5 in. Backspace.
Important Notes
- The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
- If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
- 40x13.50 tires WILL require trimming.
- If your truck is equipped with a factory rear sway bar add BDS123009
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
Fitment

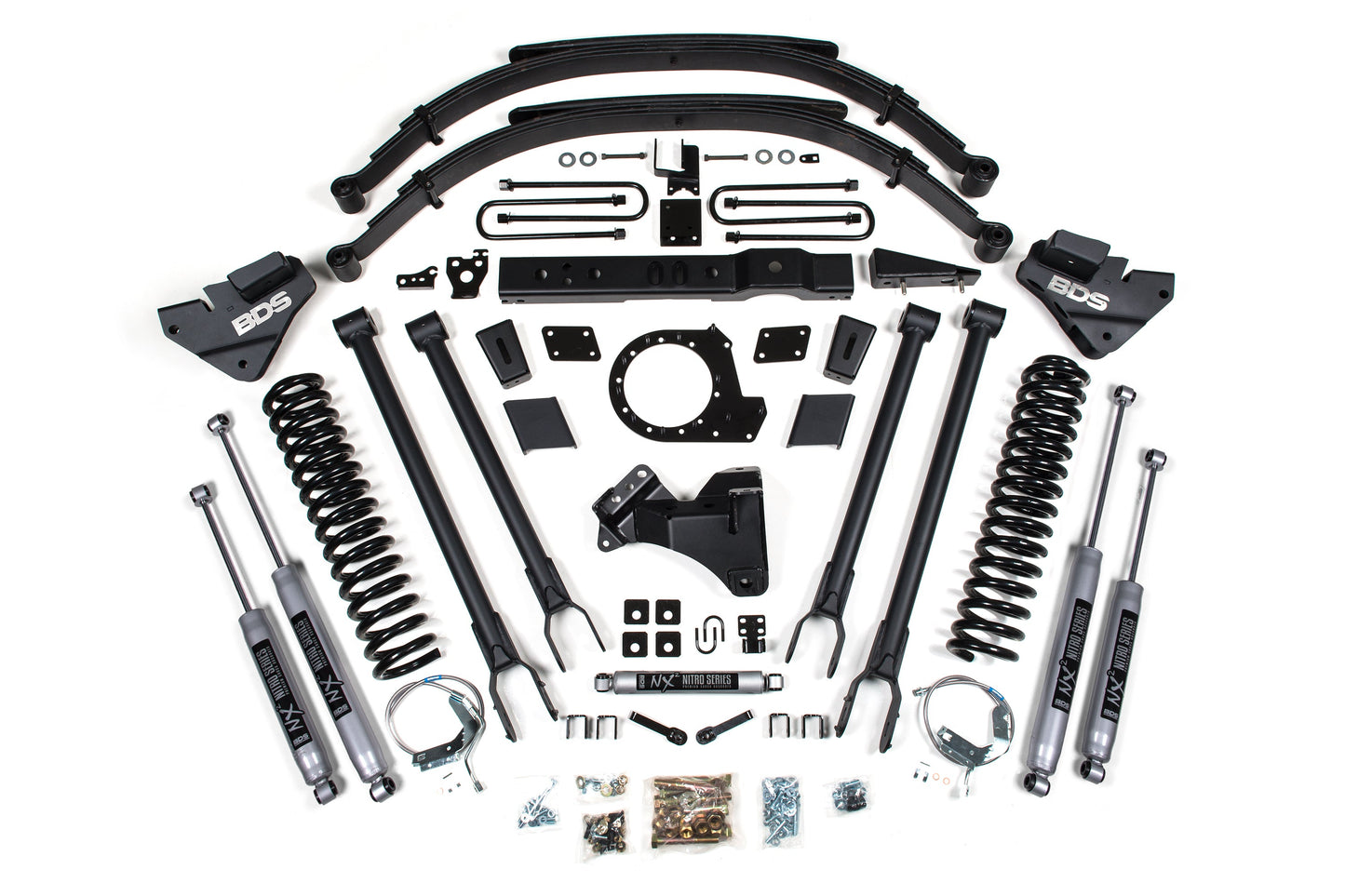

Set Includes (In the Box)
Item | Qty |
BDS003839 - 2017 F250/F350 8" Rear Leaf Spring | 2 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS013801 - 2017 Super Duty 8" Front Box Kit | 1 |
BDS013809 - 2017 Super Duty 8" Rear Box Kit | 1 |
BDS033811 - 05 Ford F250 SD Dsl 8in Coil Kit | 1 |
BDS123615 - 2017 Super Duty T-Case Index - 8in Dsl | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
FOX98224721 - Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1 | 2 |
FOX98224779 - Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1 | 2 |
Item | Qty |
BDS003839 - 2017 F250/F350 8" Rear Leaf Spring | 2 |
BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 | 1 |
BDS013801 - 2017 Super Duty 8" Front Box Kit | 1 |
BDS013809 - 2017 Super Duty 8" Rear Box Kit | 1 |
BDS033811 - 05 Ford F250 SD Dsl 8in Coil Kit | 1 |
BDS123615 - 2017 Super Duty T-Case Index - 8in Dsl | 1 |
BDS85431 - 2017-2024 F250/F350 Single Stabilizer | 1 |
BDS85721 - Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1 | 2 |
BDS85779 - Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1 | 2 |
