Description
Note: Due to the complexity of the internal grub screw, we highly recommend assembly by us for the MRR struts.
Dobinsons offers this complete suspension system for the 2005-2023 Toyota Tacoma, with various lift height and load options to suit whatever accessory weight you have added to your vehicle, and your desired lift height.
Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, the 4x4 shock absorbers and coil springs are designed and tested to perform in the harshest conditions right across the world. As they export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock and coil spring can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter.
The MRR shock absorbers are made from the world's highest quality external and internal parts sourced worldwide. They provide a significant increase in performance over the standard shock absorbers. MRR shock absorbers feature larger bodies, larger bores and increased valving performance to dramatically improve vehicle handling and control and reduces shock fade. Dobinsons' proudly manufactures the highest quality replacement coil springs for many different applications, complying to ISO9001:2008 international quality standards from our state of the art manufacturing facility in Central Queensland, Australia. All Dobinsons' coil springs are load tested and scragged 100% to eliminate subsequent spring sag.
FEATURES
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering.
- 15 Stage Rebound - Control your coils, prevent bucking.
- 50mm CNC Machined High Flow Billet Aluminium Race Piston.
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm.
- Upgraded 3 Stage FKM-HNBR Sealing System.
- TSUGAMITM CNC machined components for precise tolerances.
- ParkerTM Braided High Pressure Hoses.
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA.
- T6 6061 Height Adjustable Spring Seat.
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance.
- 60mm Full 6063 aluminum remote reservoir .
- Lightweight CNC Machined Low Friction floating piston.
- High Quality O.E.M. Grade Natural Rubber Bushings.
- Single Piece Lower Leg.
- EDP Surface Protection.
- Direct Bolt-On Design.
- CNC TIG Precision Welded Body End Mounts.
- Fully Rebuildable Design
- Not compatible with 5-Lug Tacomas.
Fitment

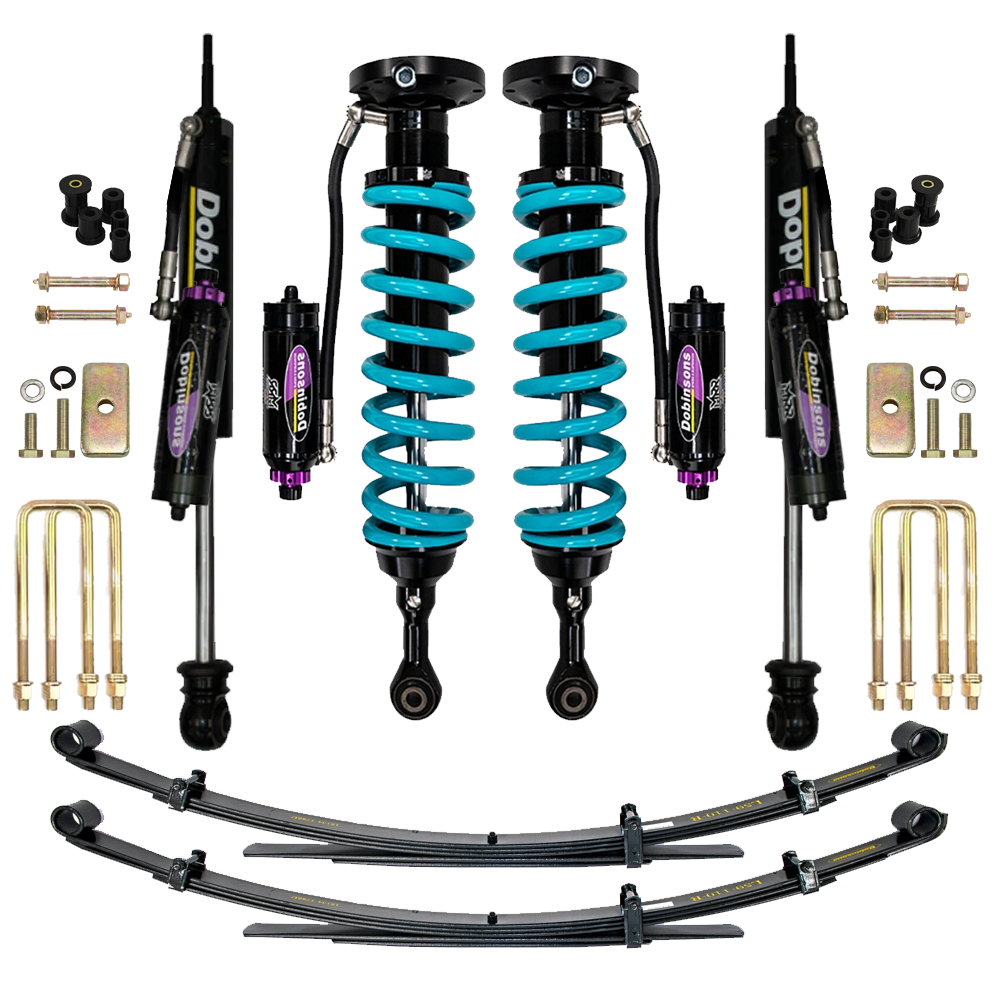

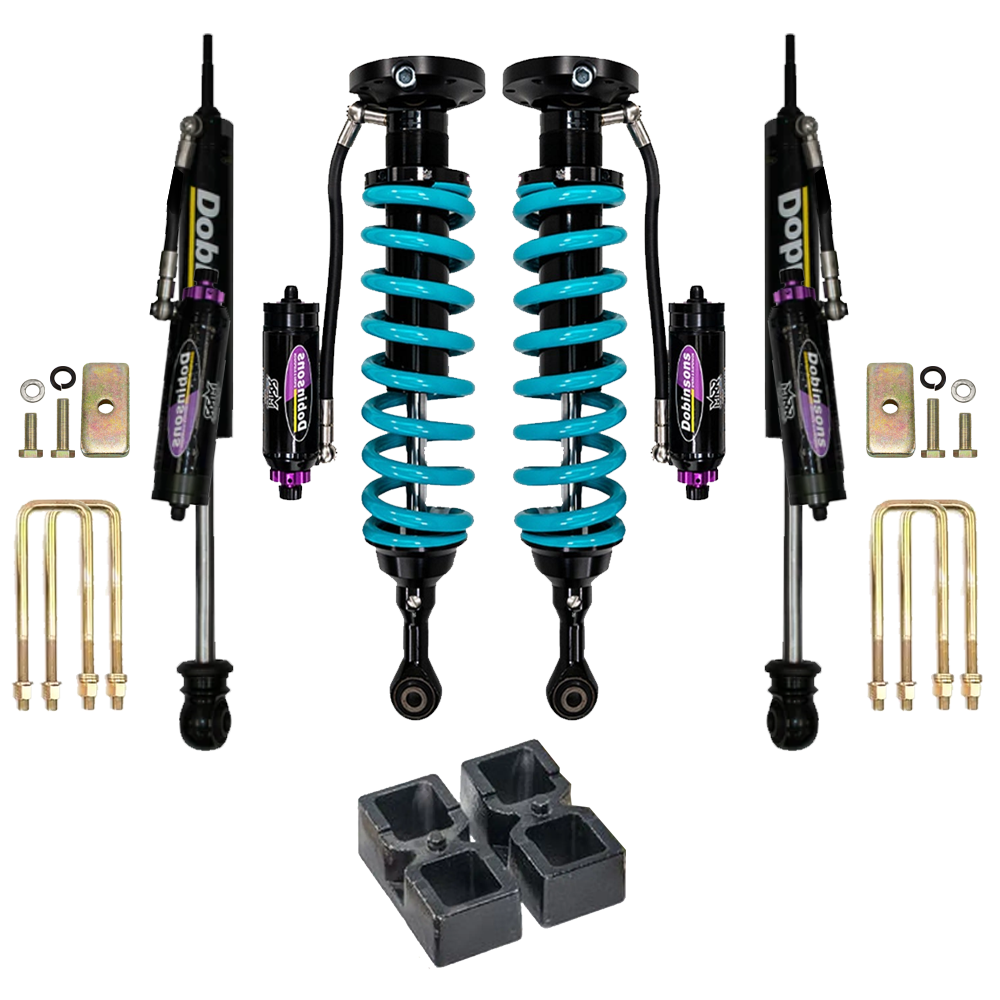

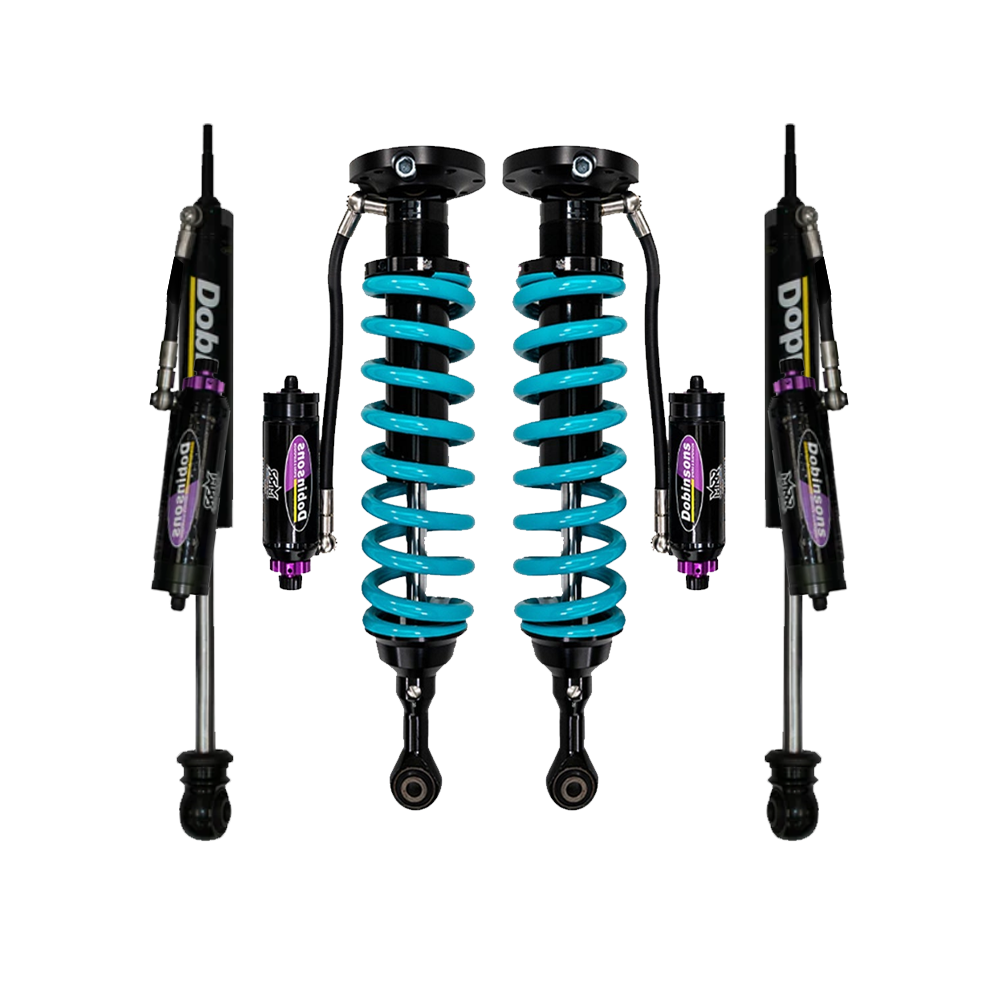

Set Includes (In the Box)
Item | Qty |
Front MRR 3-Way Adjustable Shock MRA59-A220 | 2 |
Front Coil Springs C59-314 | 2 |
Rear MRR 3-Way Adjustable Shock MRA59-A940 | 2 |
Top Hat Kit | 2 |
