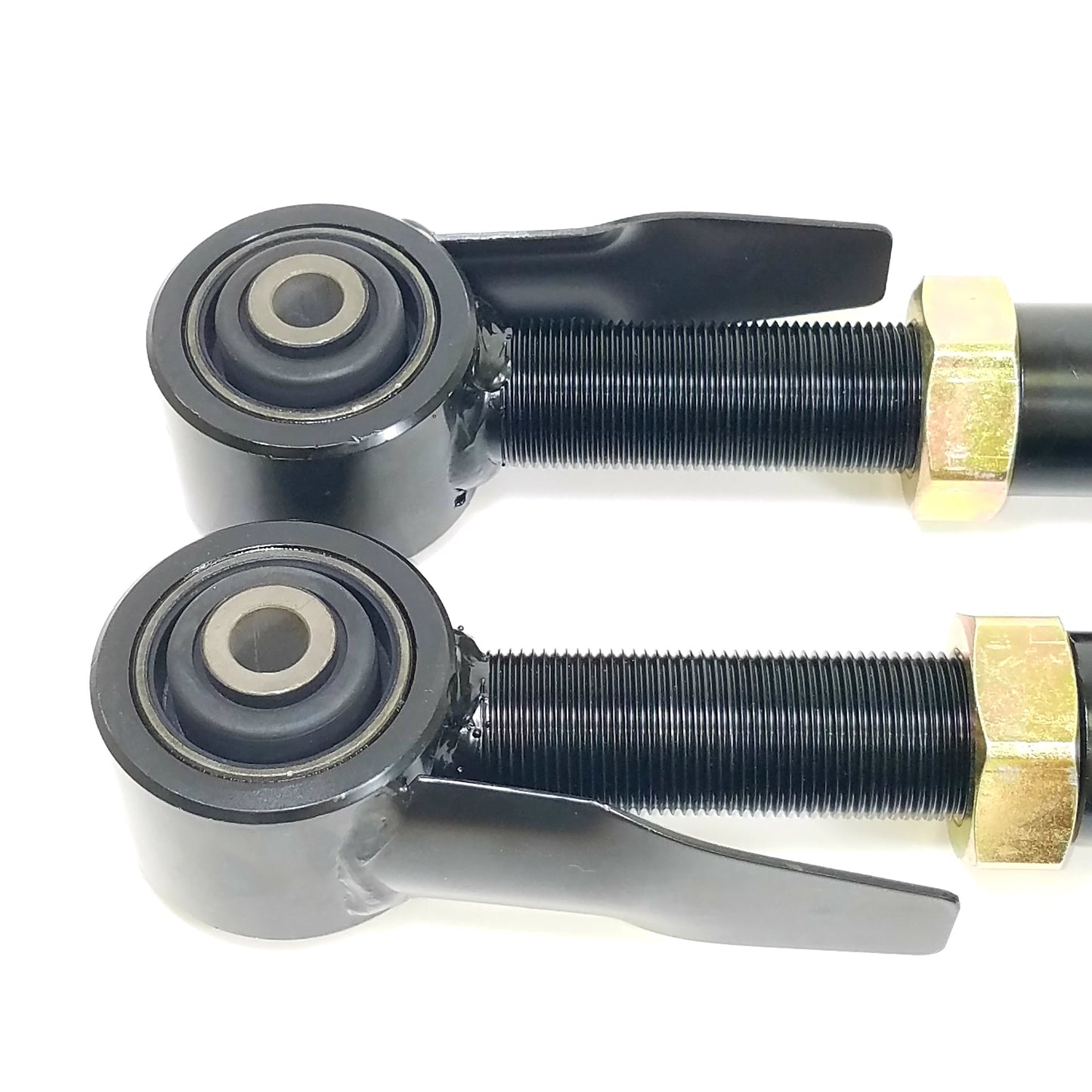

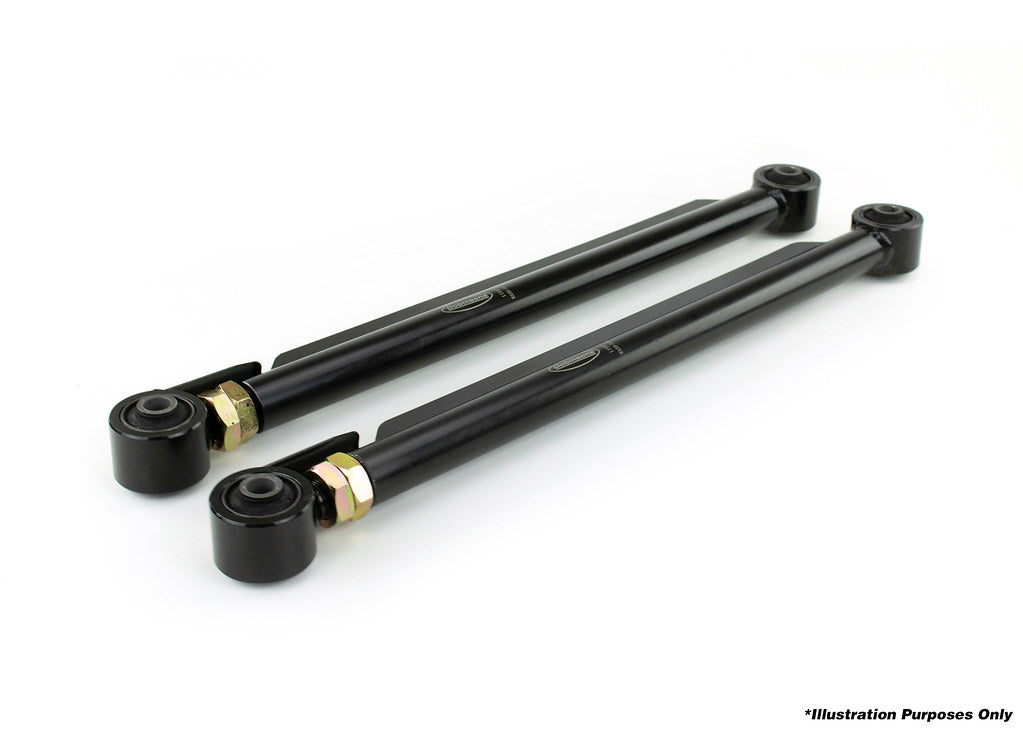

Dobinsons Rear Adjustable Tubular Steel Series Lower Trailing Arms WA59-556K (Pair) for Toyota Land Cruiser 80 Series & Lx450

Dobinsons Rear Adjustable Tubular Steel Series Lower Trailing Arms WA59-556K (Pair) for Toyota Land Cruiser 80 Series & Lx450
Dobinsons Rear Adjustable Tubular Steel Series Lower Trailing Arms WA59-556K (Pair) for Toyota Land Cruiser 80 Series & Lx450
Click to zoom in
Load image into Gallery viewer, Dobinsons Rear Adjustable Tubular Steel Series Lower Trailing Arms WA59-556K (Pair) for Toyota Land Cruiser 80 Series & Lx450
Load image into Gallery viewer, Dobinsons Rear Adjustable Tubular Steel Series Lower Trailing Arms WA59-556K (Pair) for Toyota Land Cruiser 80 Series & Lx450
$410.00 price-match-build-now
icon
icon
Lift Height Details
Click To Expand

*Lifts may vary, estimated heights.

Assistant

Lift Kit Advice?

Talk to us

786-699-8829
icon Guaranteed Fit
icon Free Shipping
icon 30 Day Returns

FEATURES

  •  Suits all 80 Series Land Cruisers from 1990 to 1997.
  •  Comes with high quality rubber OE style bushings installed for maximum flexibility, and zero noise.
  •  Made from HSLA (High Strength Low Alloy) Steel, 40mm OD and 6mm wall thickness with support brace.
  • 10mm thick steel rib for reinforcement.
  •  Oversized adjusters and rod thickness for maximum strength and durability with double-nut locking feature.
  •  Zinc plated, then E-coated black, for the ultimate finish and protection.



ABOUT THIS PRODUCT

These are adjustable rear lower control arms, to be used on any vehicle lifted or not, up to 7" of lift. This kit comes with both side lower arms and also includes Rubber bushings pressed into the arms, as they are maintenance and noise-free. Rubber bushings allow for greater flex (travel). These adjustable arms will allow you to properly set your rear pinion angle due to adding a lift, while also adding strength over the stock arms. Suitable also for long travel rear suspension setups.

NOTE: The threaded end goes towards the frame end with the thread protector facing downwards. The long support brace on the arm faces upwards. This is to strengthen the overall arm and prevent it from bending under an extreme hit offroad.

Instructions for use: Set initial length to the same as factory arms, then check pinion angle, then adjust at 1/2" increments until your pinion angle is set properly. Adding too much length could lead to driveline vibrations.
Read More
Read Less
Warranty

We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy

Returns

ll items are eligible for return within 30 days of the delivery date only if items are in its original packaging and in new (unused) condition. Original & return shipping are non-refundable, but don't worry we will provide a discounted shipping label for your return so you do not pay full price ;) We do not like to charge restocking fee BUT if the product or its box is not in perfect condition we can't sell it at full price again so we may charge you 15% restocking fee.
Click here to see our full return policy

  • - Our prices can't be beat, and we're willing to put our money where our mouth is. If you find a lower price on a product and it's being sold by an authorized online retailer, we'll not only match it — we'll beat it. Conditions Apply, please see our Full Price Match Policy HERE

  • - Chat with one of our specialists and we will process your request live or submit a Price Match Request HERE

  • - Price Matching for Products You Have Already Purchased

  • - Please contact us HERE with our online submission or email us at info@mudify.com providing the lower price, the direct link to where you found it, and the date you purchased the item(s) from us. We will look into your order and process your refund. You will receive confirmation of the refund by email within 1-2 business days.

For Fast Products*
Shipping takes 2 to 3 days. If the order is placed before 3pm EST your item will ship out the same day, if not it will be shipped out the next day.
*Fast products have a Fast badge on the main image.

For Other Products
Shipping takes about 3 to 5 business days plus 24 to 48 hours of handling time. If you need expedited shipping please reach through the chat to give you a quote and time estimate.
YES, If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of sale for a hassle-free refund of the amount paid for the product. Refunds do not include shipping costs. We only specify that you have the original packaging, the product not be installed, damaged, missing components or manufacturer's documentation.

Please see our full return policy Here

We pride ourselves with our partnerships and close relationships with our vendors, so in case your product fails after 30 days contact us and we will submit the warranty claim directly with the manufacturer.
Click here for our Full Warranty Policy

You can also check your order status on-line. Use the My Account button on top of every page or contact us at (786) 798-6597 or through our live chat.

If you wish to cancel your order please contact us ASAP at (786) 798-6597 or through live chat. We will make our best effort to cancel the order
We are committed to keeping your personal information private and safe. We use encrypted secure communications in our checkout.

For additional details, please read our complete Privacy Policy

Description

FEATURES

  •  Suits all 80 Series Land Cruisers from 1990 to 1997.
  •  Comes with high quality rubber OE style bushings installed for maximum flexibility, and zero noise.
  •  Made from HSLA (High Strength Low Alloy) Steel, 40mm OD and 6mm wall thickness with support brace.
  • 10mm thick steel rib for reinforcement.
  •  Oversized adjusters and rod thickness for maximum strength and durability with double-nut locking feature.
  •  Zinc plated, then E-coated black, for the ultimate finish and protection.



ABOUT THIS PRODUCT

These are adjustable rear lower control arms, to be used on any vehicle lifted or not, up to 7" of lift. This kit comes with both side lower arms and also includes Rubber bushings pressed into the arms, as they are maintenance and noise-free. Rubber bushings allow for greater flex (travel). These adjustable arms will allow you to properly set your rear pinion angle due to adding a lift, while also adding strength over the stock arms. Suitable also for long travel rear suspension setups.

NOTE: The threaded end goes towards the frame end with the thread protector facing downwards. The long support brace on the arm faces upwards. This is to strengthen the overall arm and prevent it from bending under an extreme hit offroad.

Instructions for use: Set initial length to the same as factory arms, then check pinion angle, then adjust at 1/2" increments until your pinion angle is set properly. Adding too much length could lead to driveline vibrations.
