Fox Factory Race Series 3.0 Internal Bypass Coil-Over Reservoir Shock (Pair) - 883-02-046 high-performance suspension for 2021 Ford Bronco
Fox Factory Race Series 3.0 Internal Bypass Coil-Over Reservoir Shock (Pair) - 883-02-046 on lifted off-road 4x4 truck in desert

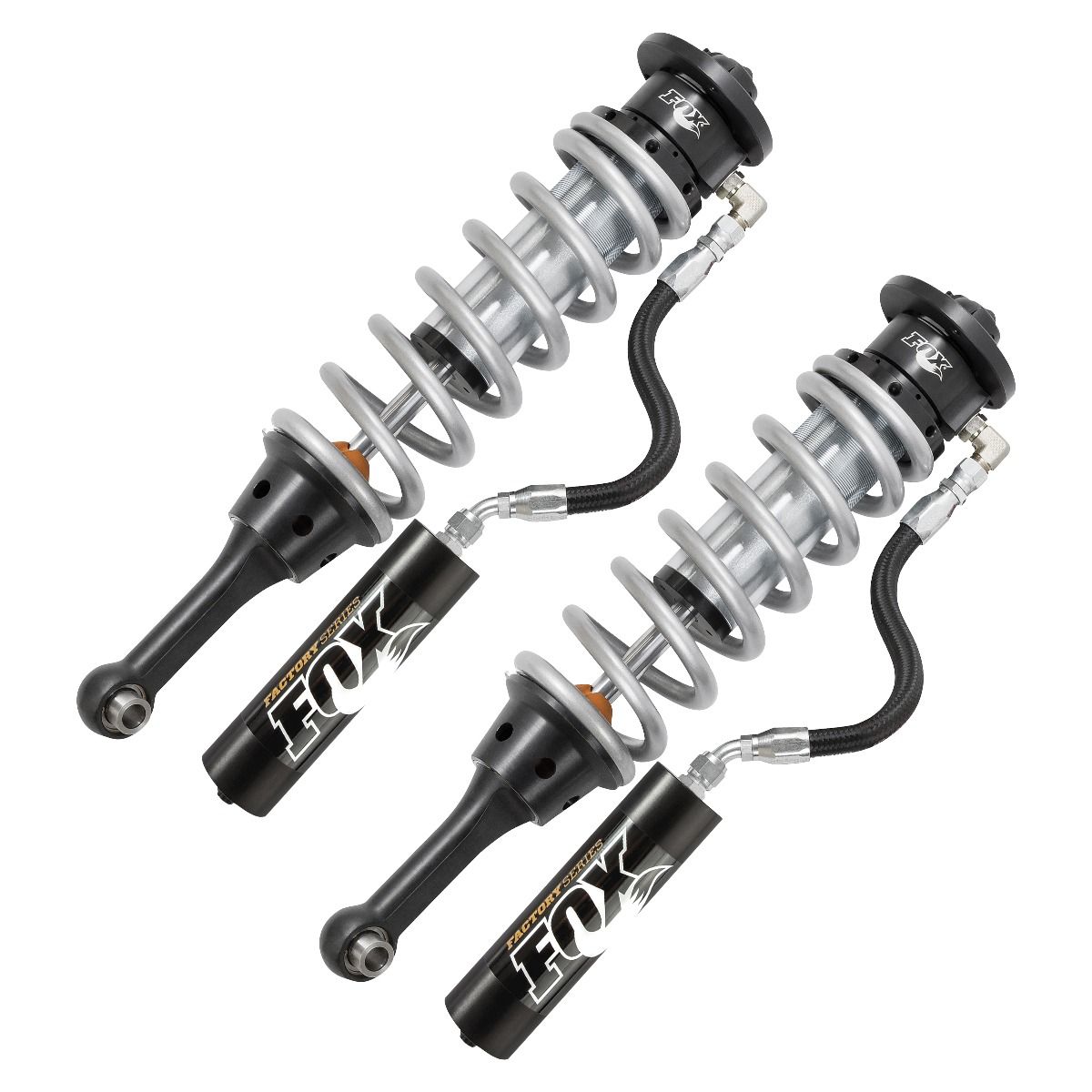

Fox Factory Race Series 3.0 Internal Bypass Coil-Over Reservoir Shock (Pair) - 883-02-046

$3,099.95

Starting at /mo with Affirm i

Better price? WE'LL MATCH IT!
45 day hassle free returns & exchanges
Manufacturer Warranty
At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race Series 3.0 Coil-over Internal Bypass shocks utilize all of the same components from our race winning Trophy Truck shocks with Eibach® springs, stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
SHOCK SPECS
Body 3.0" Smooth bore and honed seamless alloy body
Body Plating Zinc-plated for long lasting finish
Reservoir 2.5" Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" 17-4 H900 stainless steel hard-chrome plated
Piston 6061-T6 hard-anodized, high flow aluminum piston
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
Bearing PTFE-lined, heat-treated, alloy steel spherical
Extended 27,97
Compressed 20,44
Travel 7,53
Top Mount OEM
Bottom Mount Eyelet
MSRP 3099,95
Adjustments Ride height preload ring
