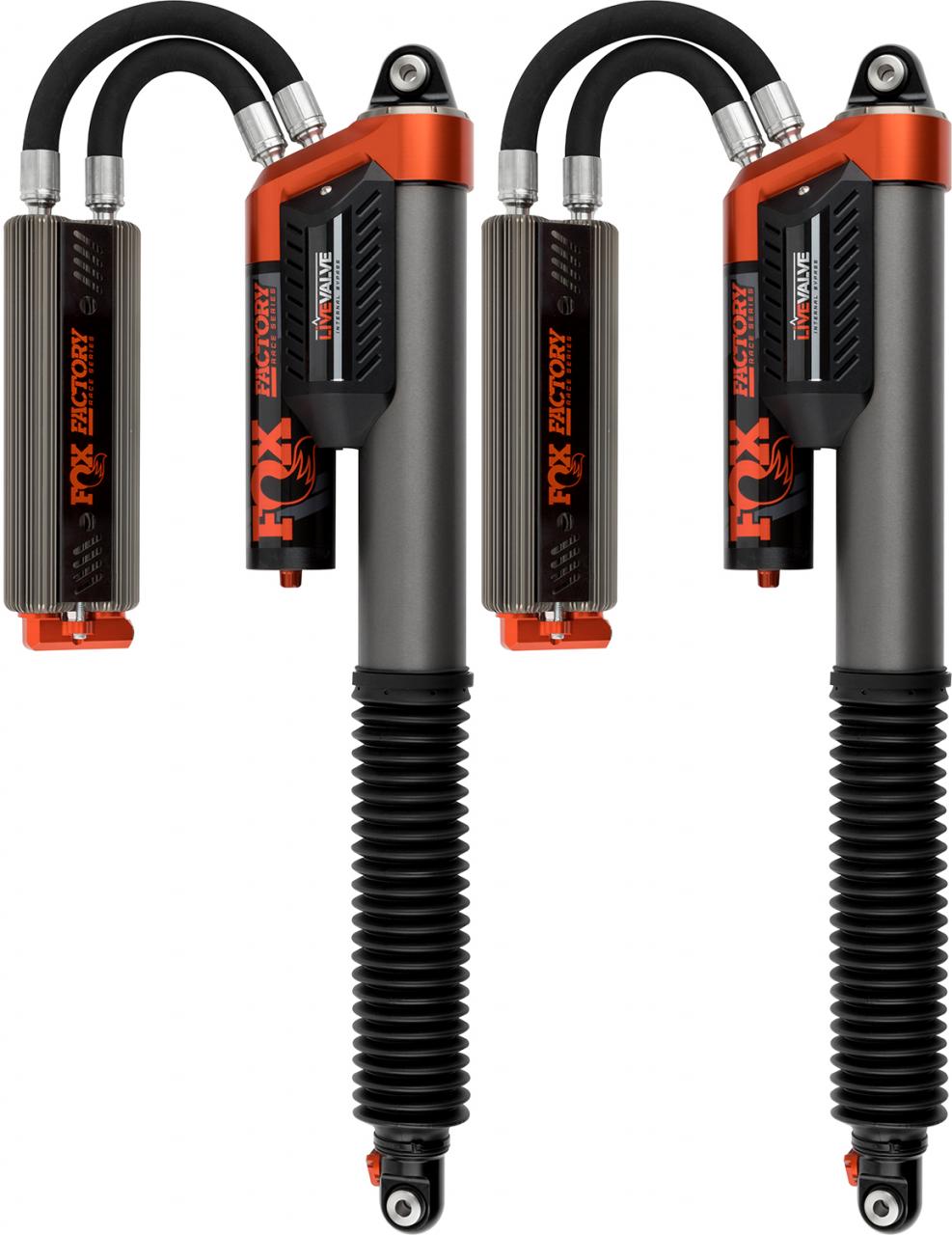

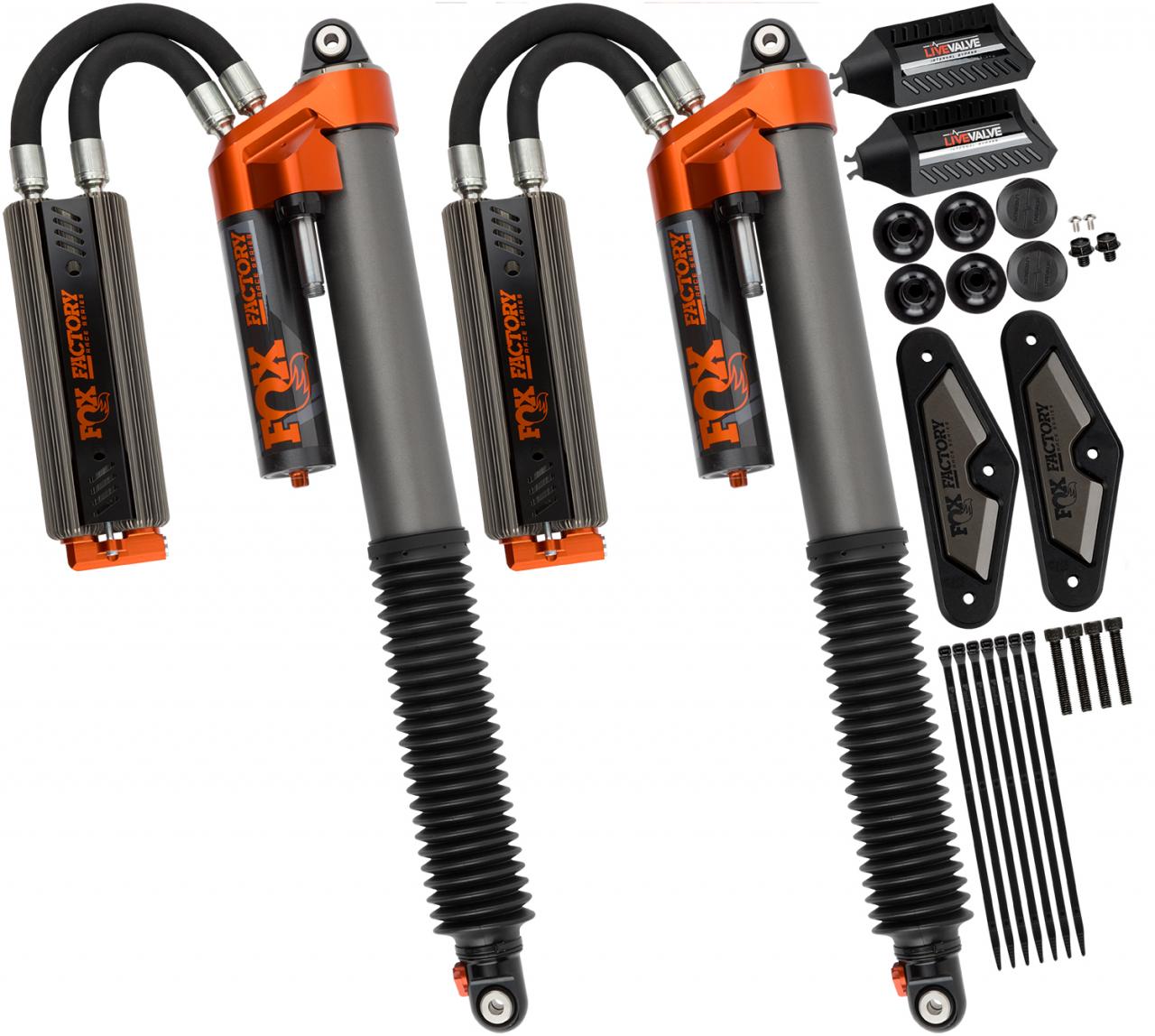

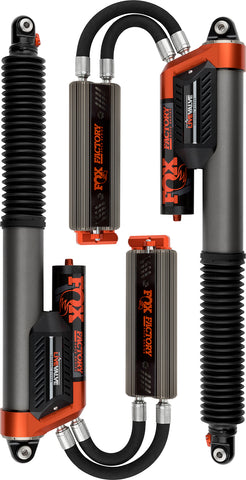

Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153
Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153
Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153
Click to zoom in
Load image into Gallery viewer, Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153
Load image into Gallery viewer, Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153
Load image into Gallery viewer, Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153

Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153

$3,499.95
Fox Factory Race Series 3.0 Li...
$3,499.95 USD
By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert. NEW Live Valve semi active technology equipped, plug and play integration to factory electronics NEW Rebound and compression adjustable via Quick Switch Technology (QS3) NEW Rotatable hose fittings for easy installation FOX patented, position-sensitive Internal Bypass damping technology
SHOCK SPECS
Body 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
Body Plating Hard-anodized for a durable finish
Reservoir Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
Components Anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated 17-4 H900 stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
Bearing PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
Adjuster Type Live Valve/Quick Switch Technology (QS3) - Compression And Rebound
Extended 31,18
Compressed 18,99
Travel 12,19
Top Mount Eyelet
Bottom Mount Eyelet
MSRP 3499,95
Spring Heavy duty 3.75? racing spring (fronts)
Fitment notes External Cooling System (ECS2) Mounting Hardware Included
Mounting Heat treated steel spherical heim mounting
