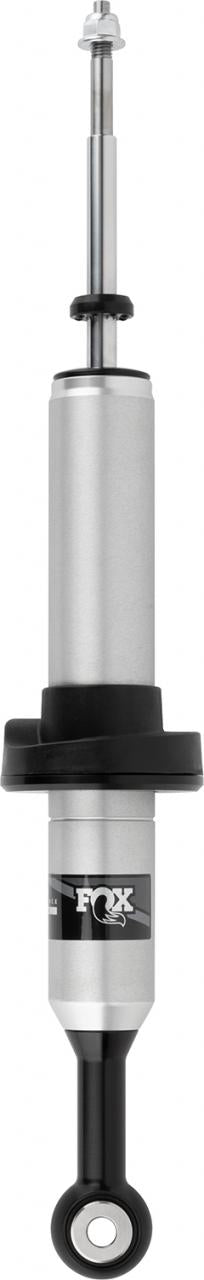

Fox Performance Series 2.0 Snap Ring Coil-Over Ifp Shock (Spring Not Incl) - 985-62-001

FOX Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. The precision, impact-extruded aluminum body is lightweight and rust resistant. Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks, allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift. The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

---

SHOCK SPECS
Body	2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating	Clear-anodized for a durable finish
Reservoir	Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing	Large diameter, heavy-duty spherical
Extended	22,09
Compressed	17,3
Travel	4,79
Top Mount	Reuses Stock Mounting Hardware
Bottom Mount	Eyelet
MSRP	259,95
Spring	Not Included
Fitment notes	Spring not included | Reuses stock mounting hardware | Not compatible with TRD Pro Springs
Adjustments	Ride height preload ring
