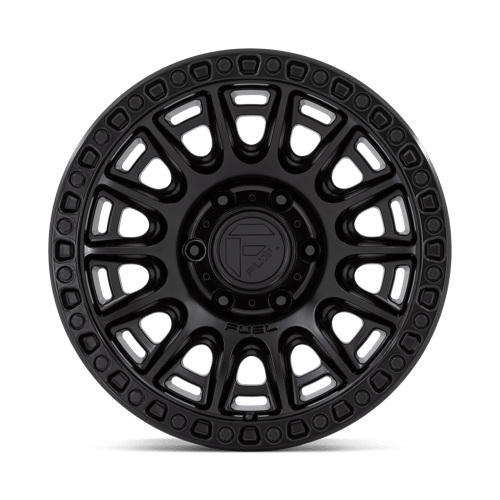

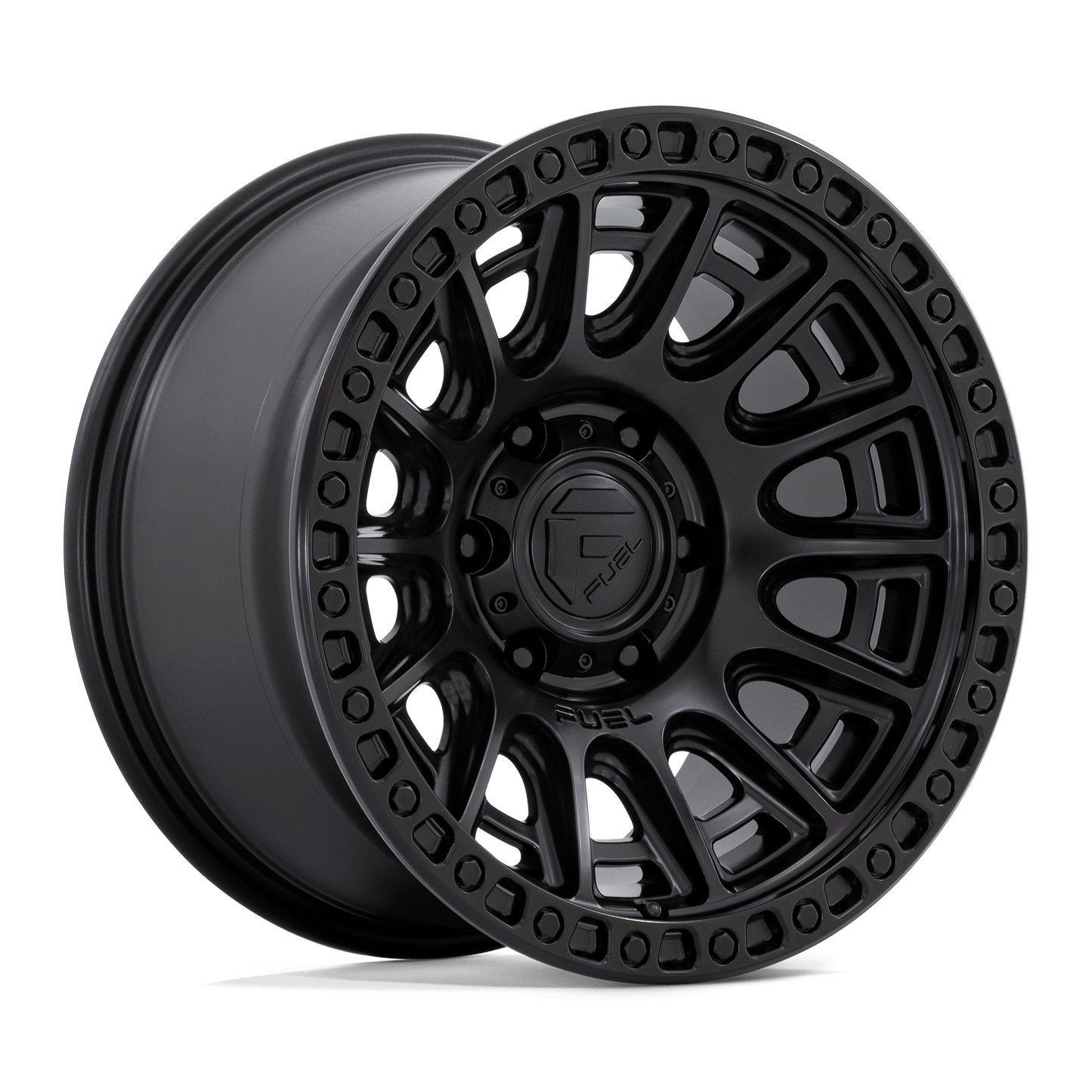

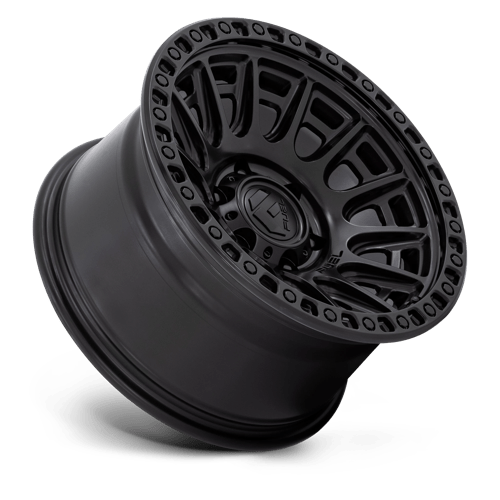

Fuel 1PC D832 Cycle - 17X9 1mm - Blackout

Wheel Specs
Brand	Fuel 1PC
Model Name	D832 17.0X9 6X5.5 BLK-OUT 1MM
Part Number	D83217908450
Finish	BLACKOUT
Material	Cast Aluminum
Size	17.0X9
Width	9
Diameter	17
Bolt Pattern	6X139.7
Backspace	5.04
Cap Part No	1006-12BLD
Offset	1
Hub/Center Bore	106.10
Weight	32.25
Load Rating	2500
Lip Depth	1.03
UPC	194933211326
Finish Warranty	ONE YEAR
Structural Warranty	LIFETIME
Lug Count	6
