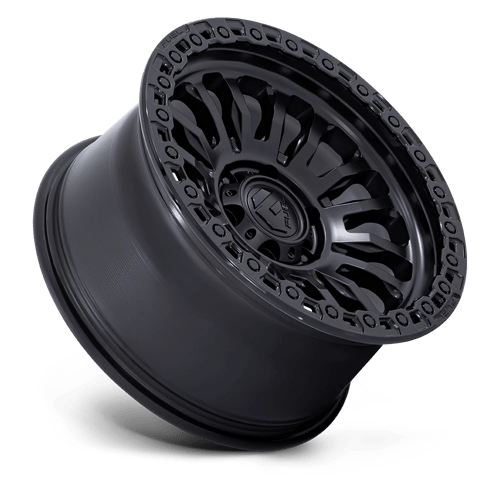

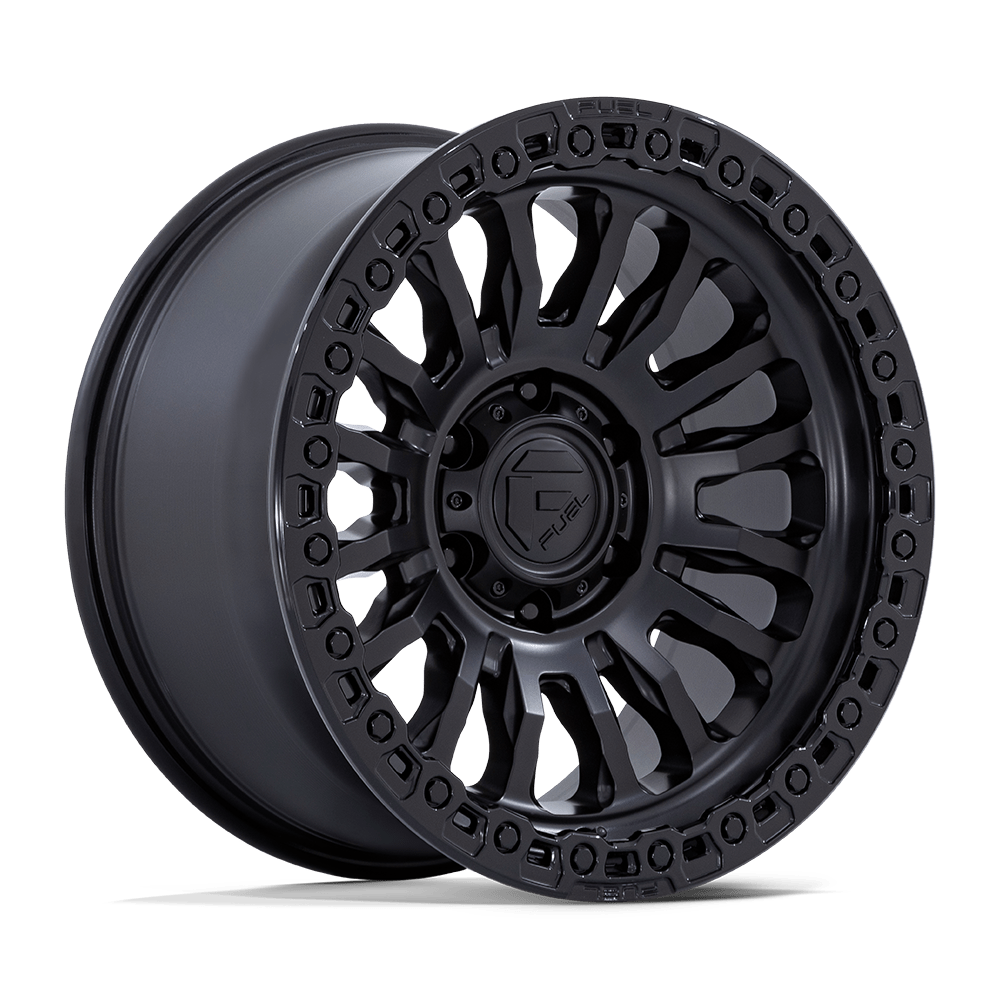

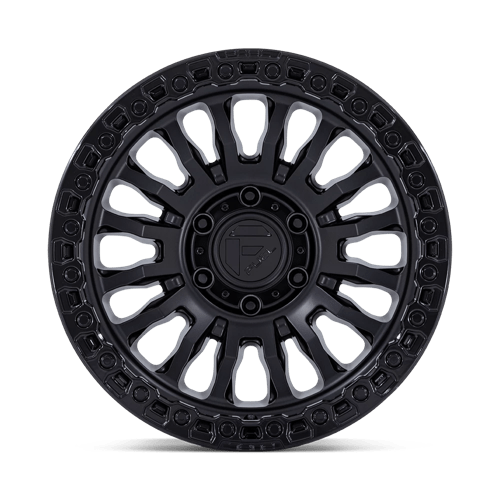

Fuel 1PC Fc857 Rincon - 17X9 1mm - Matte Black With Gloss Black Lip

Wheel Specs
Brand	Fuel 1PC
Model Name	D857 17.0X9 6X5.5 M-BLK G-BLK 1MM
Part Number	FC857MB17906801
Finish	MATTE BLACK WITH GLOSS BLACK LIP
Material	Cast Aluminum
Size	17.0X9
Width	9
Diameter	17
Bolt Pattern	6X139.7
Backspace	5.04
Cap Part No	1006-12BLD
Offset	1
Hub/Center Bore	106.10
Weight	31.56
Load Rating	2500
Lip Depth	2.12
UPC	194933318414
Finish Warranty
Structural Warranty
Lug Count	6
