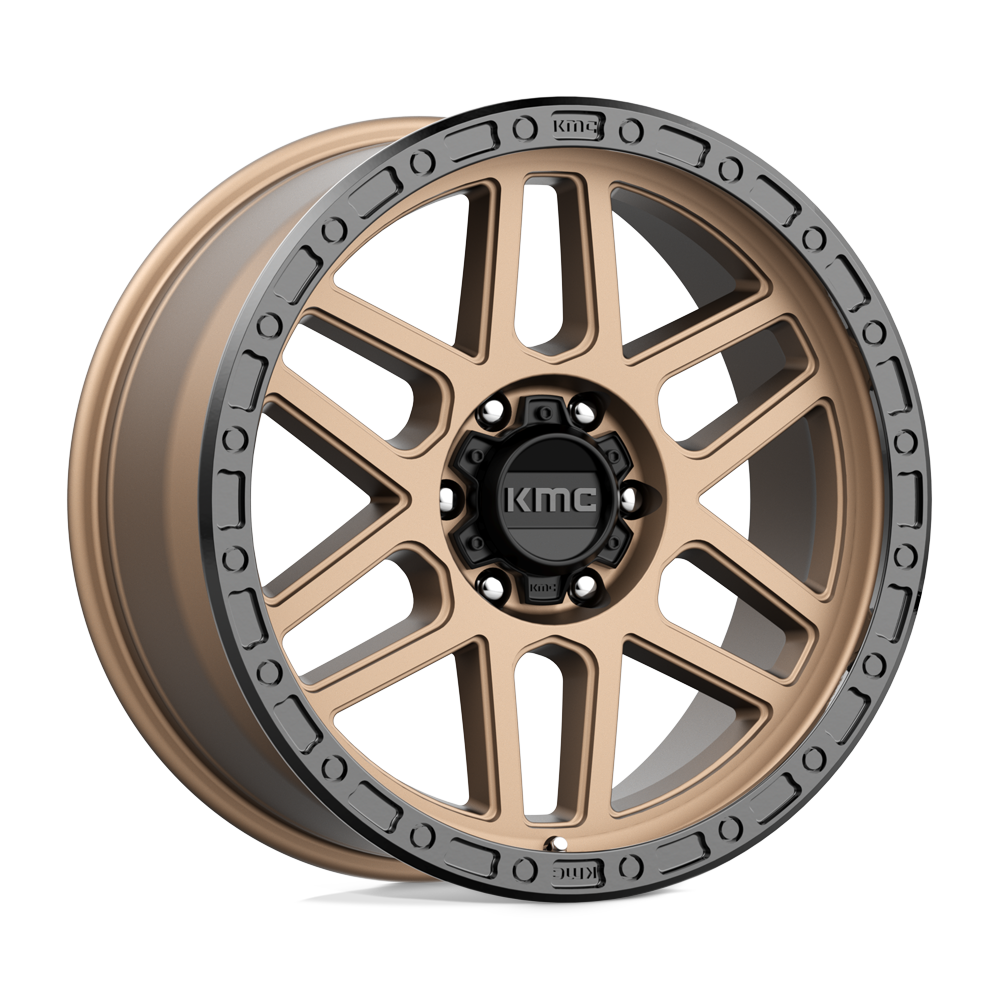

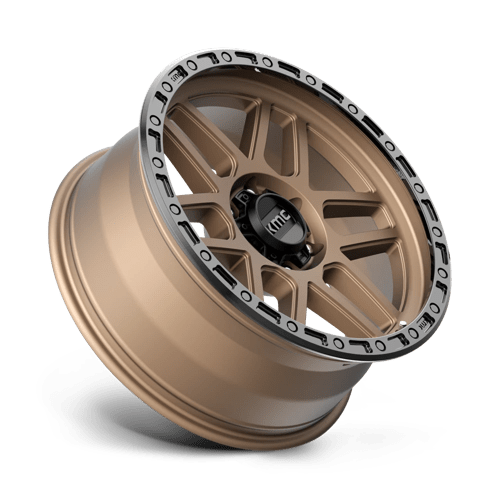

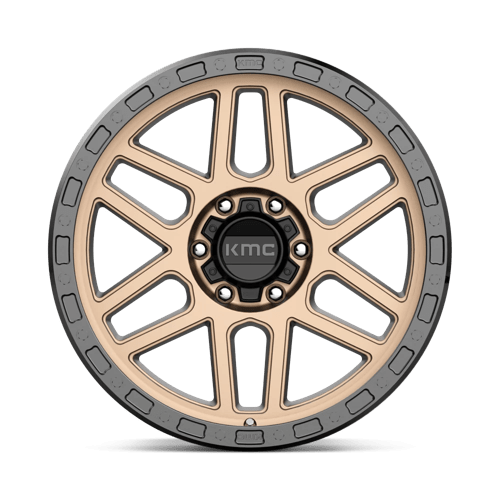

KMC Km544 Mesa - 17X9 -12mm - Matte Bronze With Black Lip

Wheel Specs
Brand	KMC
Model Name	KM544 17.0X9 6X5.5 M-BRZ BLK LP -12MM
Part Number	KM54479068612N
Finish	MATTE BRONZE WITH BLACK LIP
Material	Cast Aluminum
Size	17.0X9
Width	9
Diameter	17
Bolt Pattern	6X139.7
Backspace	4.53
Cap Part No	T164H145-6-H30-S1
Offset	-12
Hub/Center Bore	106.10
Weight	30.69
Load Rating	2500
Lip Depth	2.87
UPC	885463817040
Finish Warranty	ONE YEAR
Structural Warranty	LIFETIME
Lug Count	6

Can I return my order?

YES, if you are not completely satisfied you may return it within 45 days of sale for a refund. Refunds exclude shipping. Keep original packaging and ensure the product isn't installed, damaged, or missing components. See full return policy.

How does the Price Match Guarantee work?

We'll match and beat any lower price from an authorized retailer. Learn more.

How does the warranty work?

We handle the manufacturer's warranty process for you. Warranty Policy.

How do I check the status of an order I placed?

Open your confirmation email (subject "Order Confirmed") and click "View your order", or log in.

Can I cancel my order?

Call us ASAP at (786) 699-8829. If it hasn't shipped, we'll cancel it right away.

How does Mudify protect my privacy?

We use encrypted secure communications in checkout. Read our Privacy Policy.

Need help or advice? - Talk to an expert!

Talk to an expert!

Call Now! (786) 699 - 8829

KMC Km544 Mesa - 17X9 -12mm - Matte Bronze With Black Lip

Name: KMC Km544 Mesa - 17X9 -12mm - Matte Bronze With Black Lip
Brand: KMC
SKU: KM54479068612N
Price: 379.0 USD
Availability: InStock

$379.00

Starting at /mo with i | No credit? i

Better price? WE'LL MATCH IT!

45 day hassle free returns & exchanges

Manufacturer Warranty

Wheel Specs
Brand	KMC
Model Name	KM544 17.0X9 6X5.5 M-BRZ BLK LP -12MM
Part Number	KM54479068612N
Finish	MATTE BRONZE WITH BLACK LIP
Material	Cast Aluminum
Size	17.0X9
Width	9
Diameter	17
Bolt Pattern	6X139.7
Backspace	4.53
Cap Part No	T164H145-6-H30-S1
Offset	-12
Hub/Center Bore	106.10
Weight	30.69
Load Rating	2500
Lip Depth	2.87
UPC	885463817040
Finish Warranty	ONE YEAR
Structural Warranty	LIFETIME
Lug Count	6
