KMC Km548 Chase - 20X9 00mm - Candy Red With Black Lip

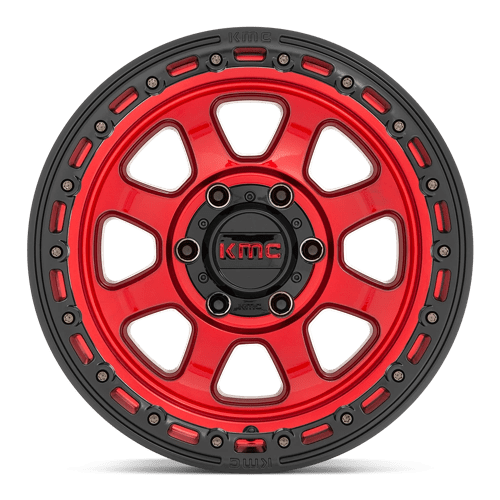

KMC Km548 Chase - 20X9 00mm wheel in candy red with black lip, rugged design for off-road trucks and SUVs

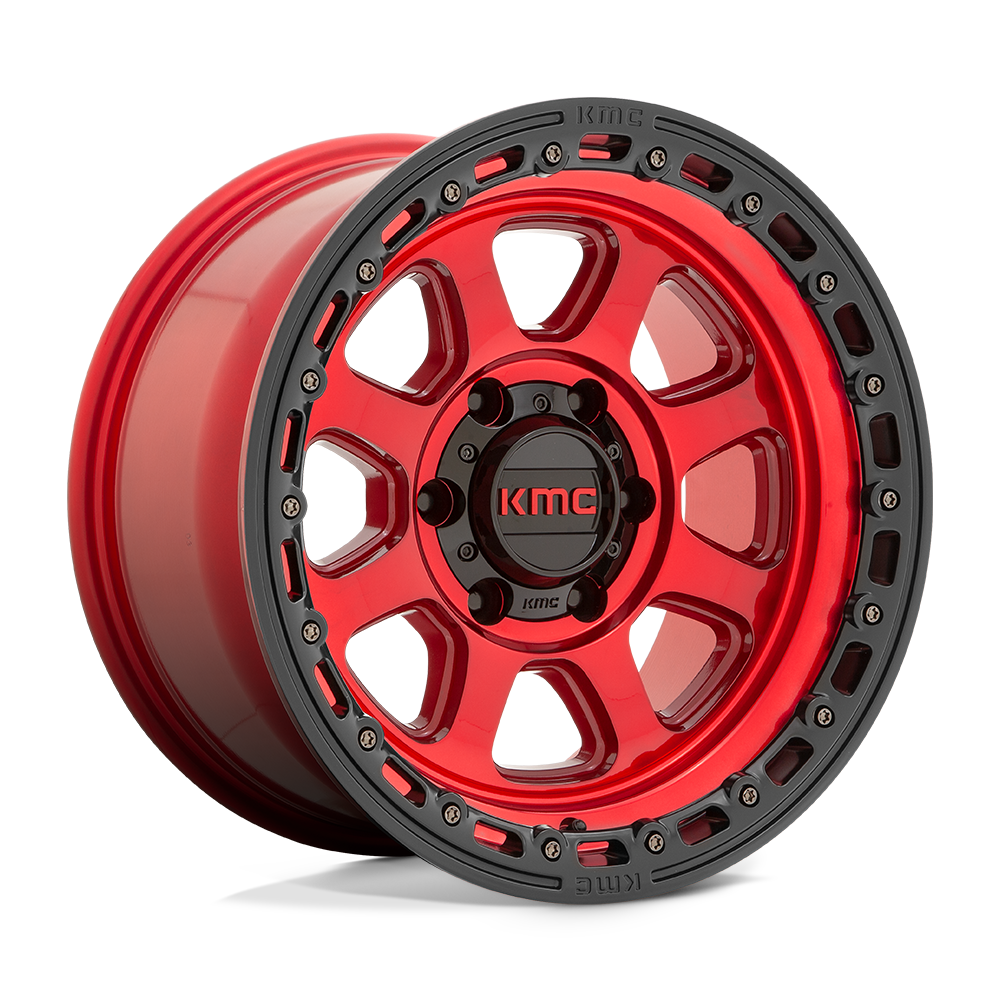

KMC Km548 Chase - 20X9 00mm - Candy Red With Black Lip wheel, multi-spoke design, heavy-duty off-road 4x4 wheel

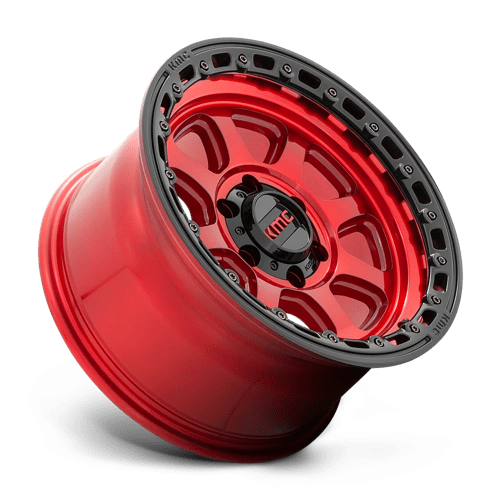

KMC Km548 Chase - 20X9 00mm Candy Red With Black Lip wheel, rugged 6-lug design for off-road durability and style

Wheel Specs
Brand	KMC
Model Name	KM548 20.0X9 6X5.5 C-RED BLK-LP 00MM
Part Number	KM54829068900
Finish	CANDY RED WITH BLACK LIP
Material	Cast Aluminum
Size	20.0X9
Width	9
Diameter	20
Bolt Pattern	6X139.7
Backspace	5.00
Cap Part No	T163H145-6-H30-S3
Offset	00
Hub/Center Bore	106.10
Weight	37.11
Load Rating	2500
Lip Depth	2.61
UPC	194933102525
Finish Warranty	ONE YEAR
Structural Warranty	LIFETIME
Lug Count	6
