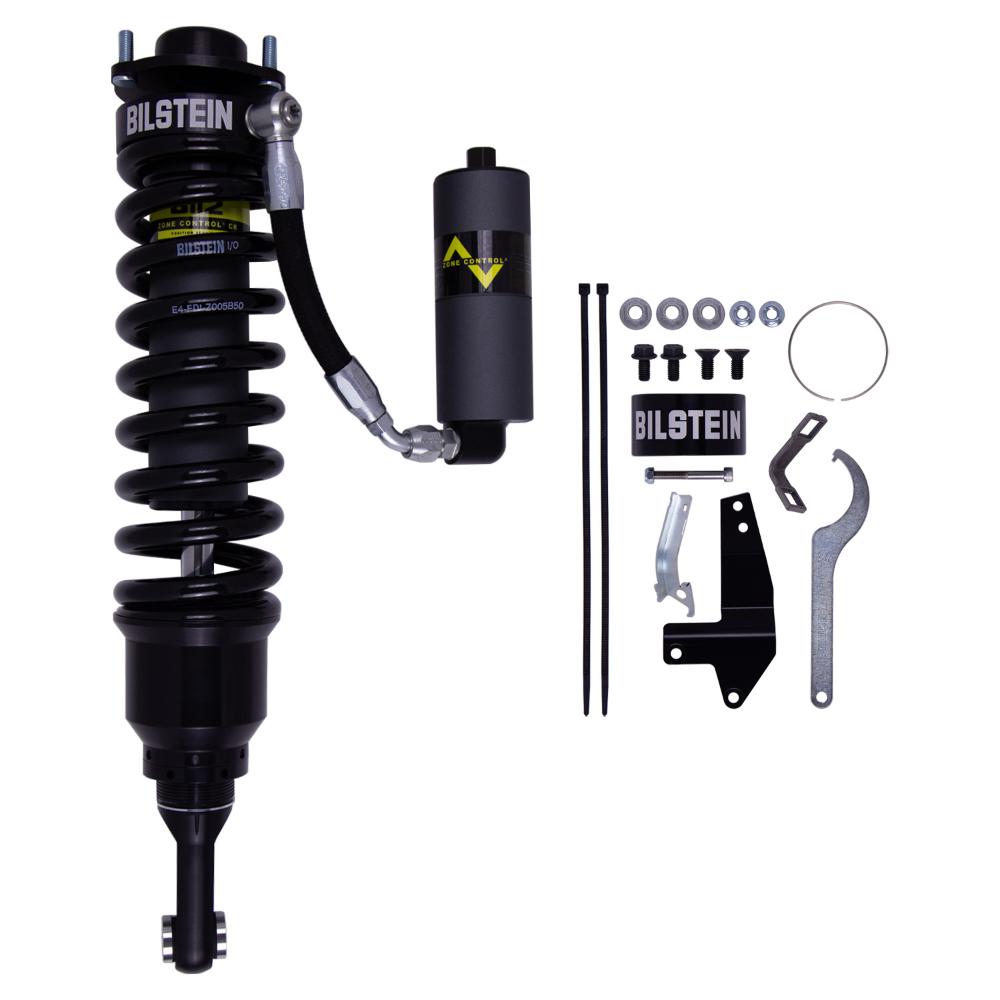

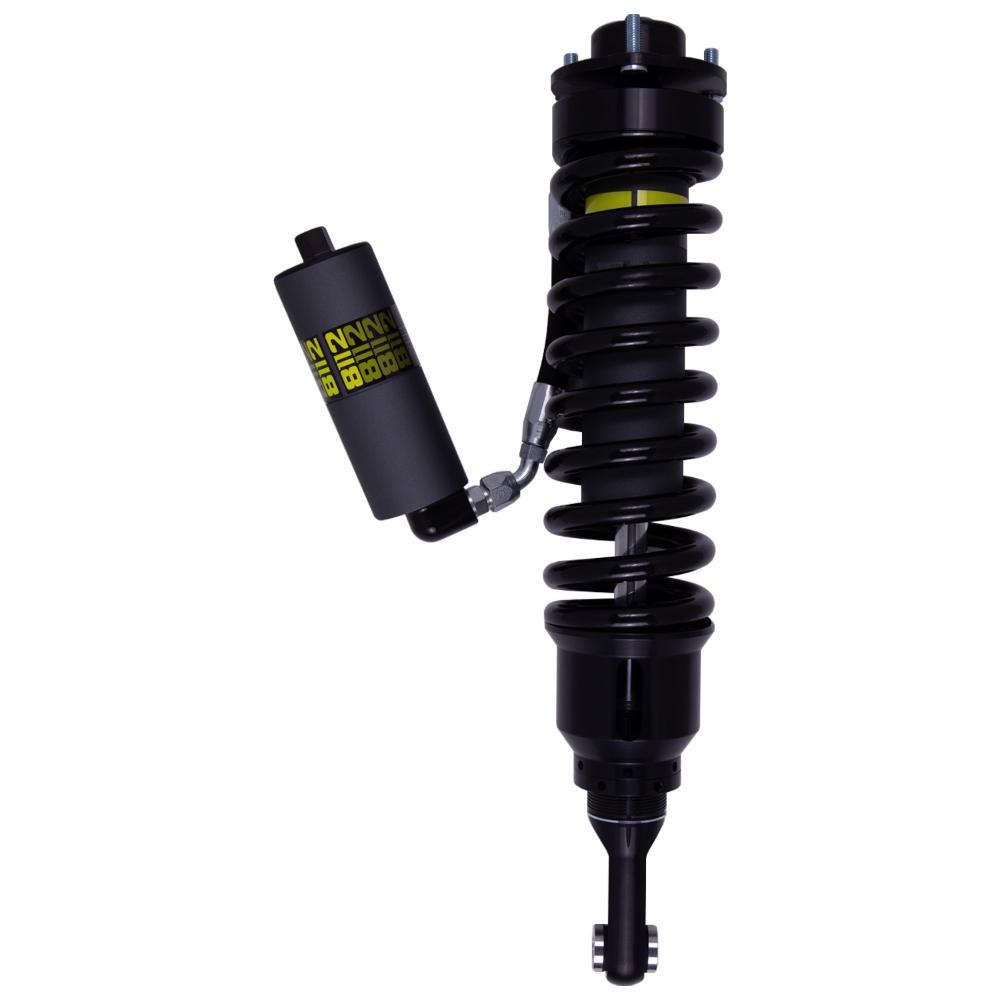

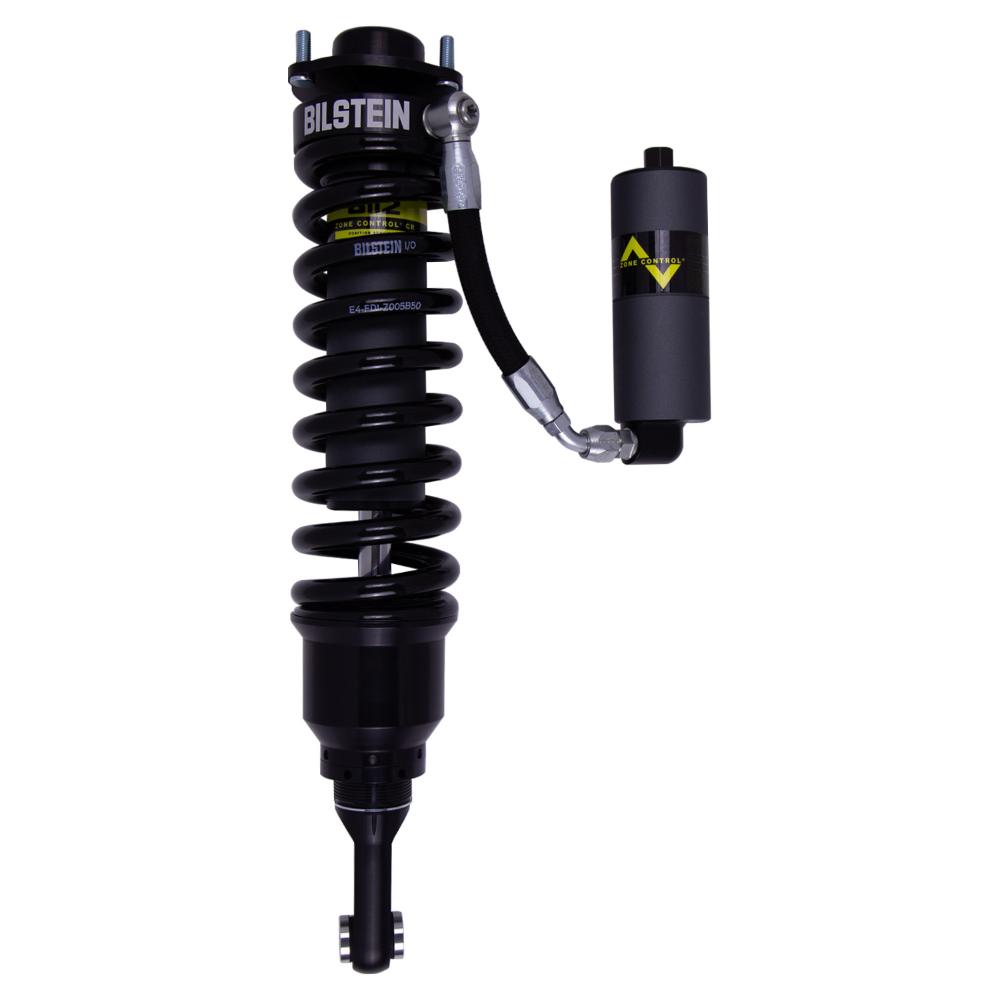

Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23

Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Click to zoom in
Load image into Gallery viewer, Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Load image into Gallery viewer, Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Load image into Gallery viewer, Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Load image into Gallery viewer, Bilstein B8 8112 (Zone Control CR) Front Right Coilover bil41-324165 for Toyota 4Runner 10-24, Lexus GX460 10-23
Found a better price? Request A Price Match!
$1,113.00

Starting at $.../mo Apply | No Credit? Logo Apply

Free Shipping
45-Day Returns
Authorized Dealer
Lift Height Details
Click To Expand

*Lifts may vary, estimated heights.

Assistant

Lift Kit Advice?

Talk to us

786-699-8829
ARB Old Man Emu Rear Nitrocharger Sport 60081 for Prado 150 Series LWB (Coil Spring Models Only)
ARB Old Man Emu Rear Nitrocharger Sport 60081 for Prado 150 Series LWB (Coil Spring Models Only)
$127.00
Dobinsons Coil Springs Pair (Black) - C59-327B
Dobinsons Coil Springs Pair (Black) - C59-327B
$300.00

$1,113.00 USD
TOP

FEATURES:

  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression: Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound: Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap.
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
    Adjustable threaded spring seat allows for fine-tuned ride height. Adjustable range 0.6-2.5in.
  • 60mm remote reservoir for increased oil capacity and cooling.
  • Vehicle specific design and tuning provides the ultimate driving experience..
  • Aerospace quality components are vehicle specific to optimize wheel travel and clearance.
  • High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution.
  • Aluminum components with zinc plated shock bodies will resist harsh off-road elements.
  • Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height.
  • Factory rebuildable.
  • Sold Individually.

    ABOUT THIS PRODUCT

    Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount.

    BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

    SPECIFICATIONS

    • Collapsed Length (in): 17.99.
    • Extended Length (in): 22.80.
    • Body Diameter: 60mm.
    • Finish: Dampers: EVO Grey / Springs: Black.
    • Reservoir: Yes.
    • Body Design: Smooth Body (Coilover).
    • Body Material: Steel.
    • Spring Seat Included: Yes.
    • Adjustable Damping: Non-Adjustable.
    • SKU: bil41-324165.
    • Suitable for:
      • Toyota 4Runner 2010-2024.
      • Lexus GX460 2010-2023.
