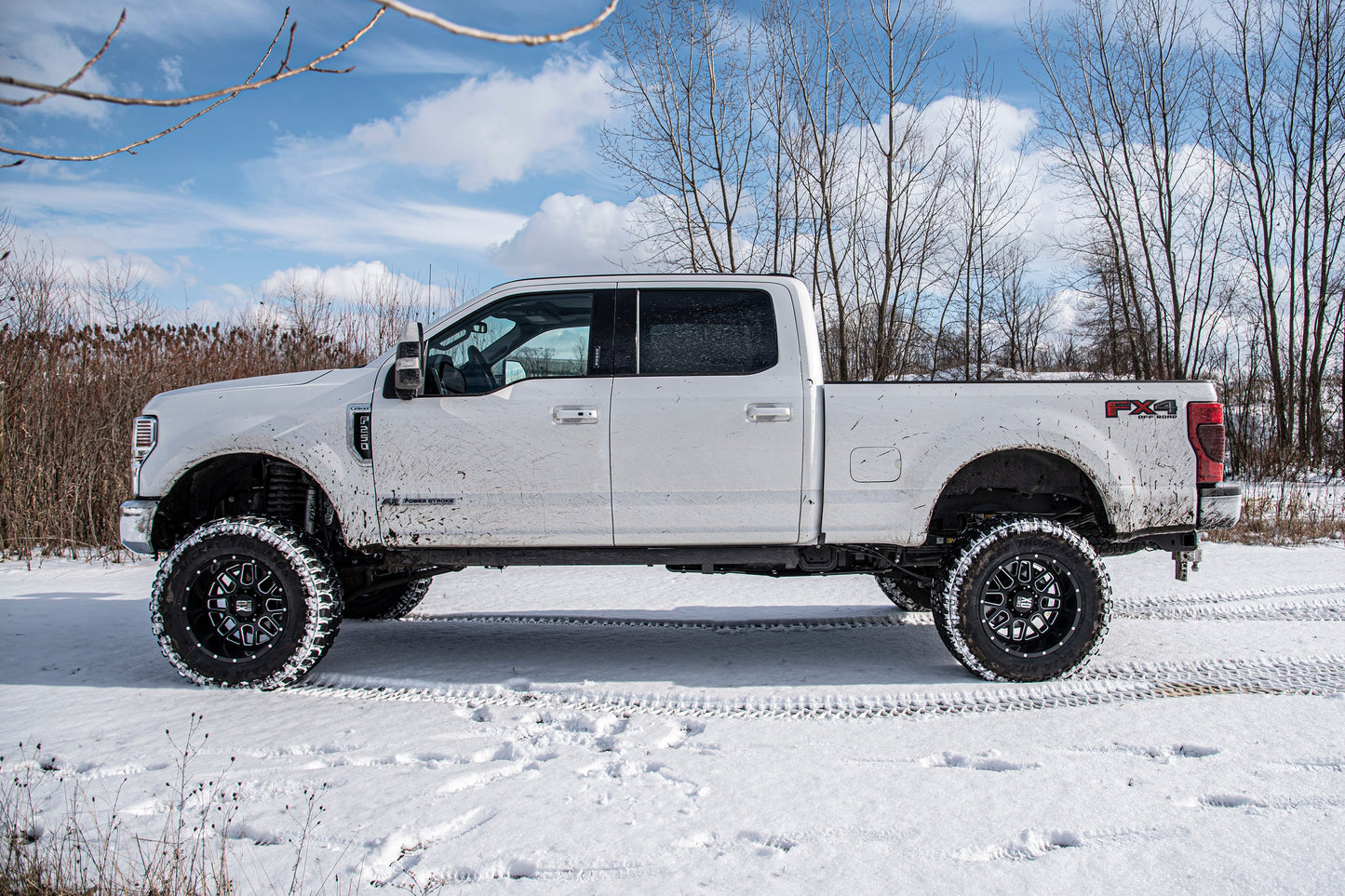

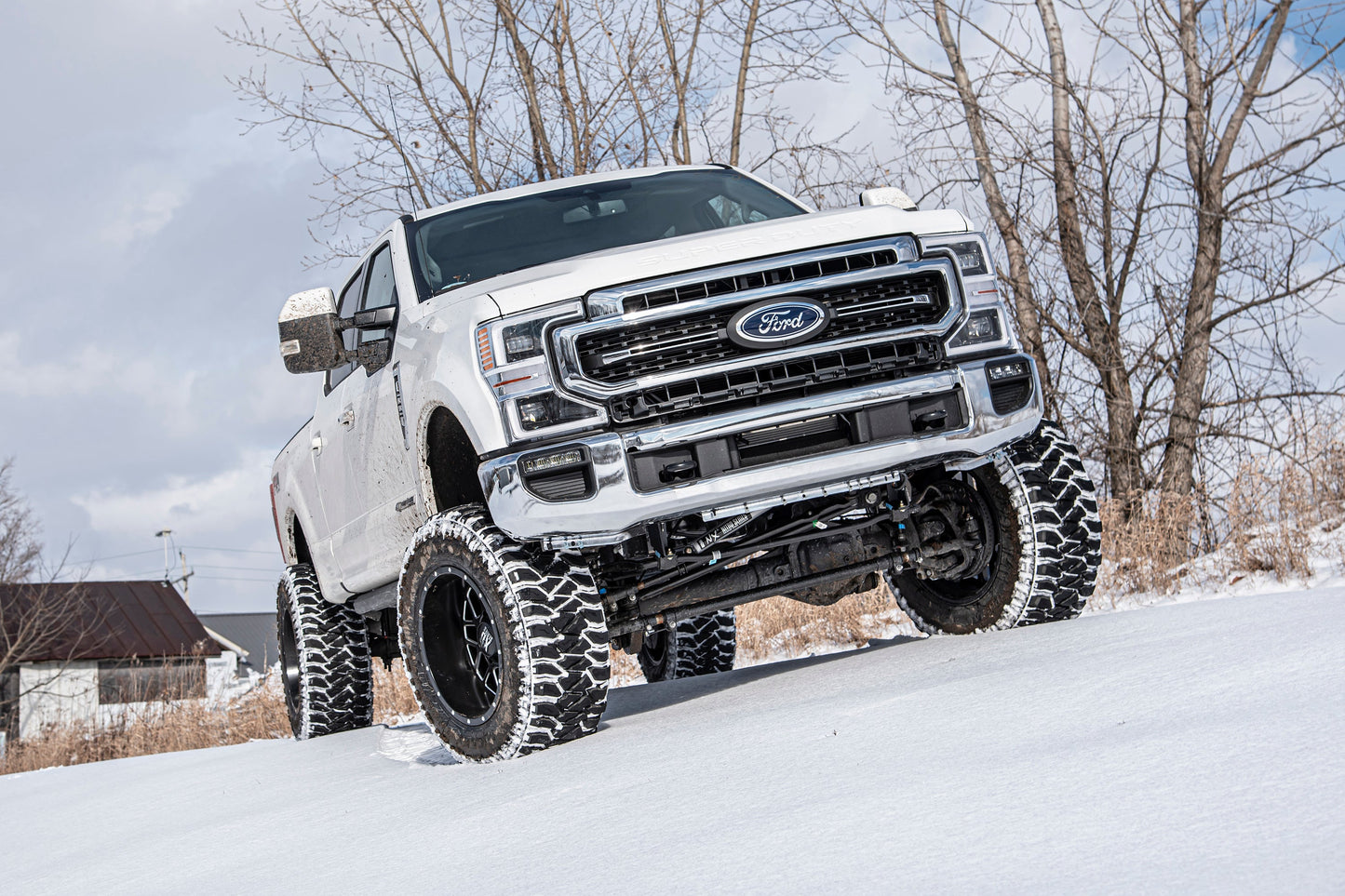

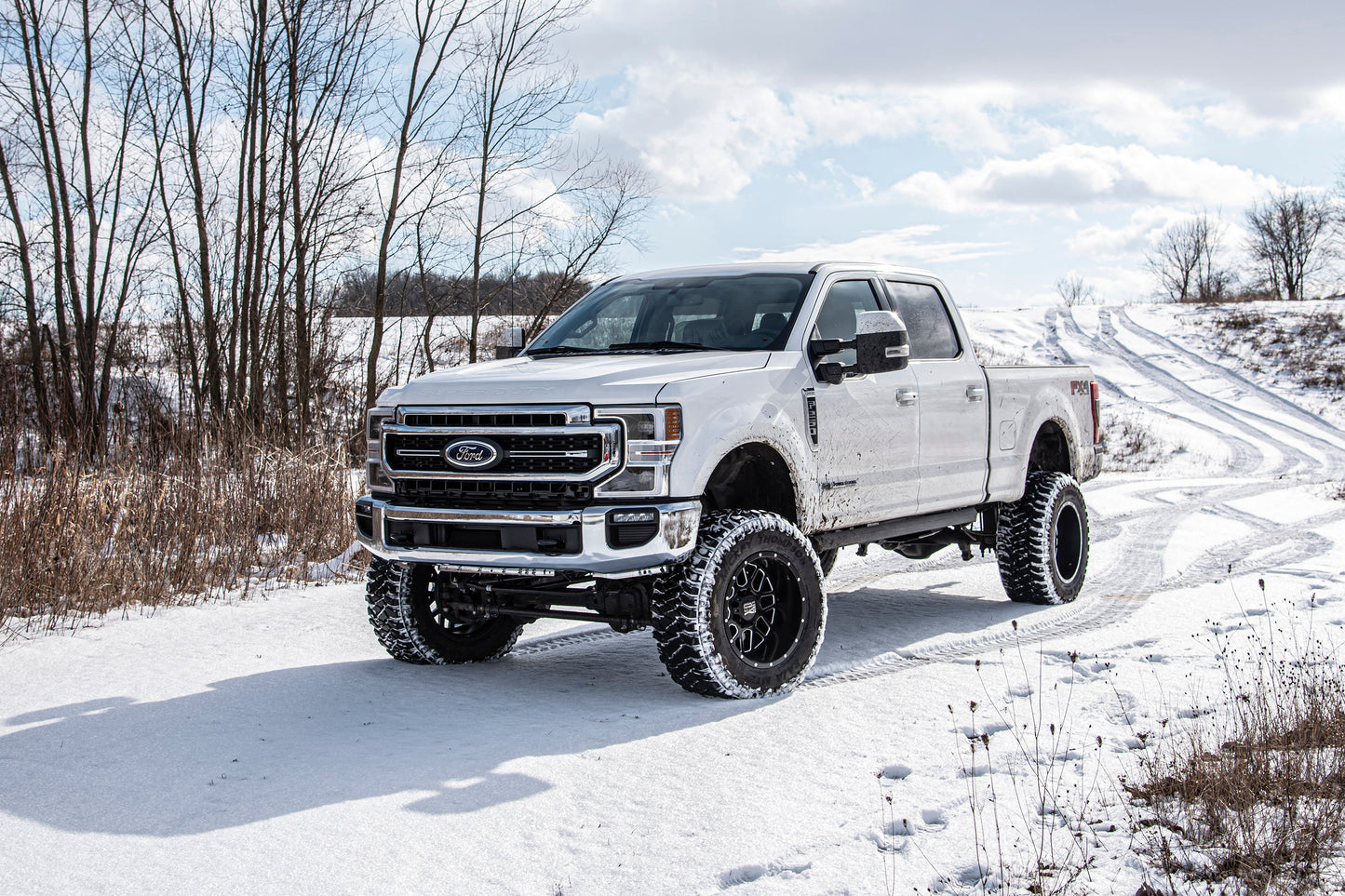

Take your Ford Super Duty diesel truck to the next level with this 7-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

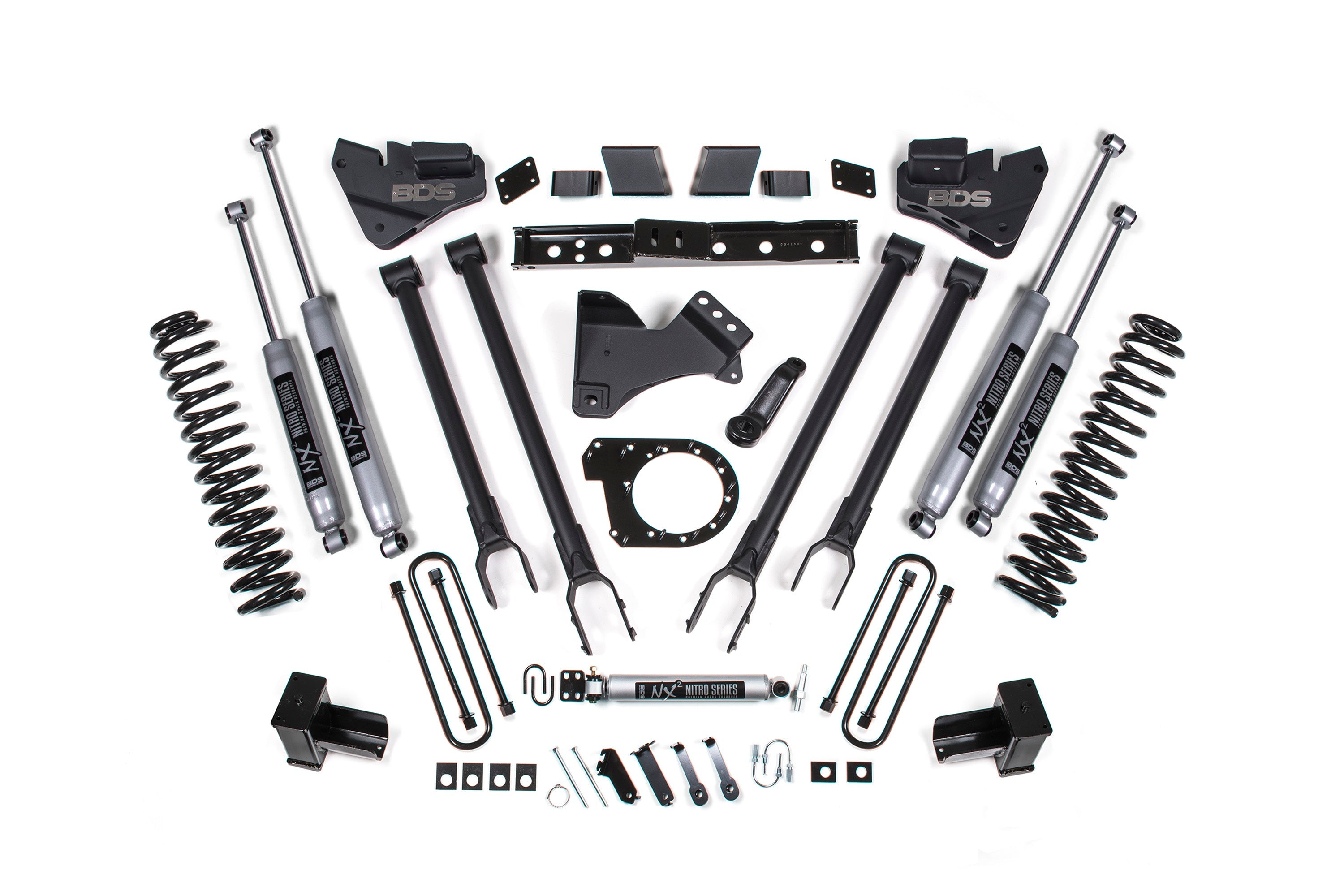

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control

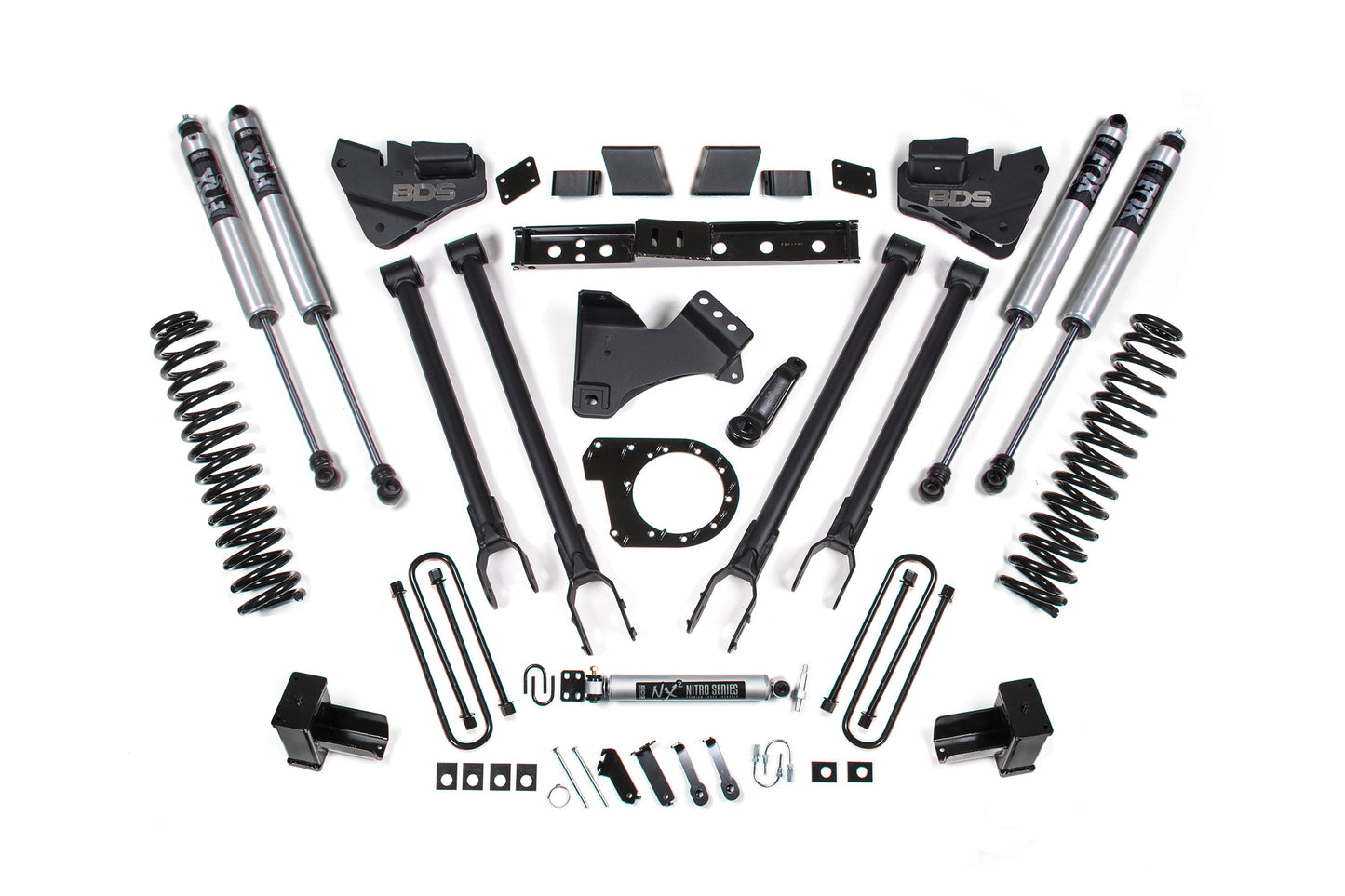

- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Other Details
- Est. Install Time: 6-8 hrs
- Difficulty Level: Difficult
- Installation Guide
Recommended Tires & Wheels (Trimming may be required)
- 38 x 13.5 with 17 x 10 and 5 in. Backspace.
- 38 x 13.5 with 20 x 9 and 5 in. Backspace.
- 38 x 13.5 with 20 x 10 and 5 in. Backspace.
| Qty | Item |
|---|---|
| 1 | BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 |
| 1 | BDS013604 - 2017-2022 Ford F-250 / F-350 6" 4-Link Box Kit 2of2 |
| 1 | BDS013606 - 2020-2022 F250/F350 6.25in Rear Box Suspension System |
| 1 | BDS033611 - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit |
| 1 | BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL |
| 1 | BDS85431 - 2017-2024 F250/F350 Single Stabilizer |
| 2 | FOX98224718 - Fox 2.0 Shock 33.85 |
| 2 | FOX98224750 - Fox 2.0 Shock 28.25 |
